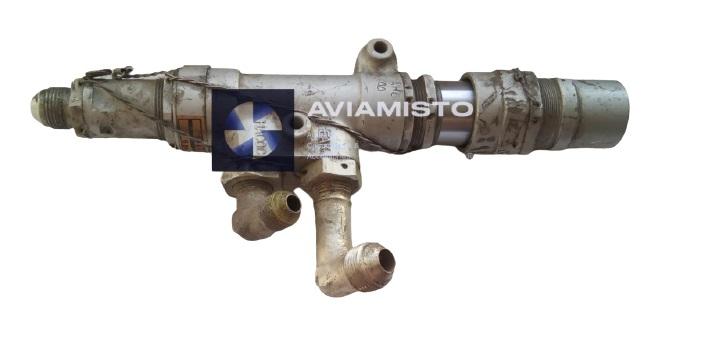

UG-149

Operating function of UG-149

Mechanical movement from the brake control changes the metering section inside the valve. The resulting outlet pressure follows the commanded braking demand while the hydraulic supply remains connected to the braking circuit. Reliable operation depends on clean working media, serviceable seals, correctly connected lines and a calibrated configuration that matches the technical documentation.

Role in the aircraft system

Training and maintenance documentation identifies UG-149 in wheel-braking systems together with the brake accumulator, charging valve, pressure indicators and related reducing or anti-skid units. These connected components perform different functions and are not substitutes for UG-149. Connected units form one operating circuit, but each performs a separate task and must not be presented as interchangeable merely because it is installed in the same system.

Installation and maintenance checks

UG-149 is documented for the braking system of An-24 / An-26 family aircraft. Maintenance data also records configuration-dependent use alongside or in place of UG-92/2, but the permitted replacement rule must be read exactly for the installed aircraft configuration. Maintenance checks normally cover connection tightness, body condition, contamination and compliance with the specified test limits. Any calibration or adjustment must follow the product passport or approved repair documentation.

Identifying UG-149 for ordering

Confirm the UG-149 marking, lever or stem interface, port arrangement and installed aircraft configuration. The valve must be checked with the braking-system manual and passport rather than selected only by a similar housing. Other related items are listed in the valves category. An enquiry should identify the required execution, condition, delivery set and supporting documentation.
