GA-185U (GA185U)
Hydraulic Valve
Description

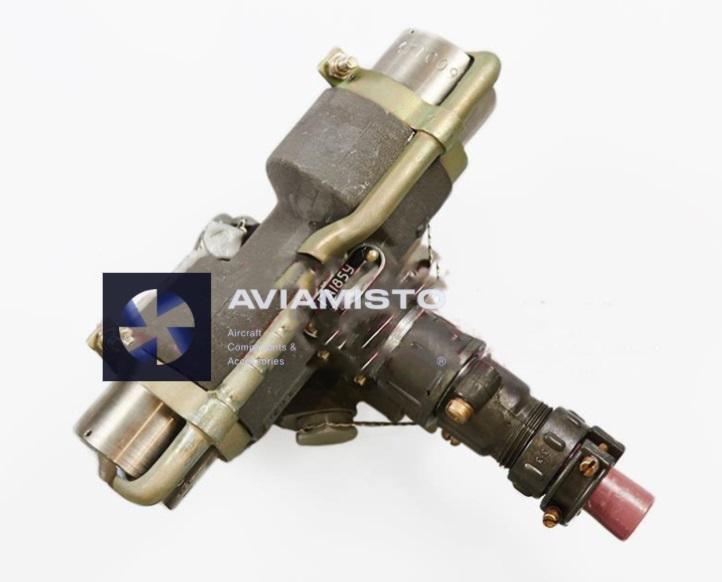

GA-185U two-position valve for aircraft hydraulic systems
The GA-185U is a two-position electromagnetic hydraulic valve used in aircraft hydraulic systems. It works as an electrically controlled hydraulic distributor for remote switching of fluid flow. The valve does not create pressure and does not replace a pump. Its task is to open or close a hydraulic line by command and route working fluid to the connected mechanism. In open references, GA-185U is described for hydraulic damper control and for parking brake circuits on Il-76 aircraft.
Full descriptionCollapse description
Hydraulic switching through GA-185U
In operation, the GA-185U responds to voltage applied to its electromagnet. The internal valve mechanism changes position and connects the required hydraulic passage according to the system layout. When the electrical command is removed, the valve returns to its defined state for that installation. This type of valve is used where a hydraulic function has to be switched from the aircraft electrical system rather than by direct manual operation at the hydraulic line.
GA-185U in brake and damper circuits
The GA-185U is used in hydraulic circuits connected with dampers and braking systems. For Il-76, open technical descriptions mention GA-185U valves in the bays of the main landing gear struts, where they are used to supply hydraulic pressure to the main and parking brake lines. If the braking or damper circuit does not operate correctly, the valve is only one part of the check. Maintenance should also include pressure supply, electrical command, connector condition, fluid cleanliness, leakage, and the condition of the connected actuator.
Aircraft application of hydraulic valve GA-185U
The GA-185U is applied in aircraft hydraulic systems where remote two-position switching of hydraulic flow is required. The clearest public application is the Il-76 parking brake and braking hydraulic circuit. The valve may also appear in listings near other GA-series electromagnetic hydraulic valves, but that does not mean direct interchangeability. Exact use should be checked by the aircraft parts catalog, because similar valves can differ by pressure setting, port layout, operating logic, or documentation requirements.
Identification and ordering checks for GA-185U
Before ordering, the marking on the installed valve should be compared with the aircraft maintenance documentation, parts catalog, or product passport. The product may appear as GA-185U in English-language documents and as ГА-185У in Russian documentation. For a clear request, it is useful to provide the aircraft type, system location, full designation, and a photo of the marking if available. The product is also known under alternative designation ГА-185У.
Technical details
- Product Type
- Two-position electromagnetic hydraulic valve
- Function
- Remote switching of hydraulic fluid flow
- Application / Where Used
- Aircraft hydraulic systems
- System / Installation Area
- Hydraulic damper control circuits; main and parking brake hydraulic lines where specified
- Compatible Aircraft / Equipment
- Il-76 aircraft, where specified by aircraft documentation
All specificationsCollapse specifications
- Working Medium
- AMG-10 hydraulic oil
- Operating Pressure
- 150 (+15 / −2) kgf/cm²
- Maximum Operating Pressure
- Up to 180 kgf/cm²
- Operating Voltage
- 27 V DC
- Weight
- Approx. 1.36 kg
- Dimensions
- Approx. 140 × 160 × 80 mm
- Control Type
- Remote electromagnetic control
- Operating Mode
- Two-position hydraulic switching
- Technical Documentation
- Product passport / aircraft maintenance documentation
