AGK-47B
Attitude indicator
Description
AGK-47B Overview

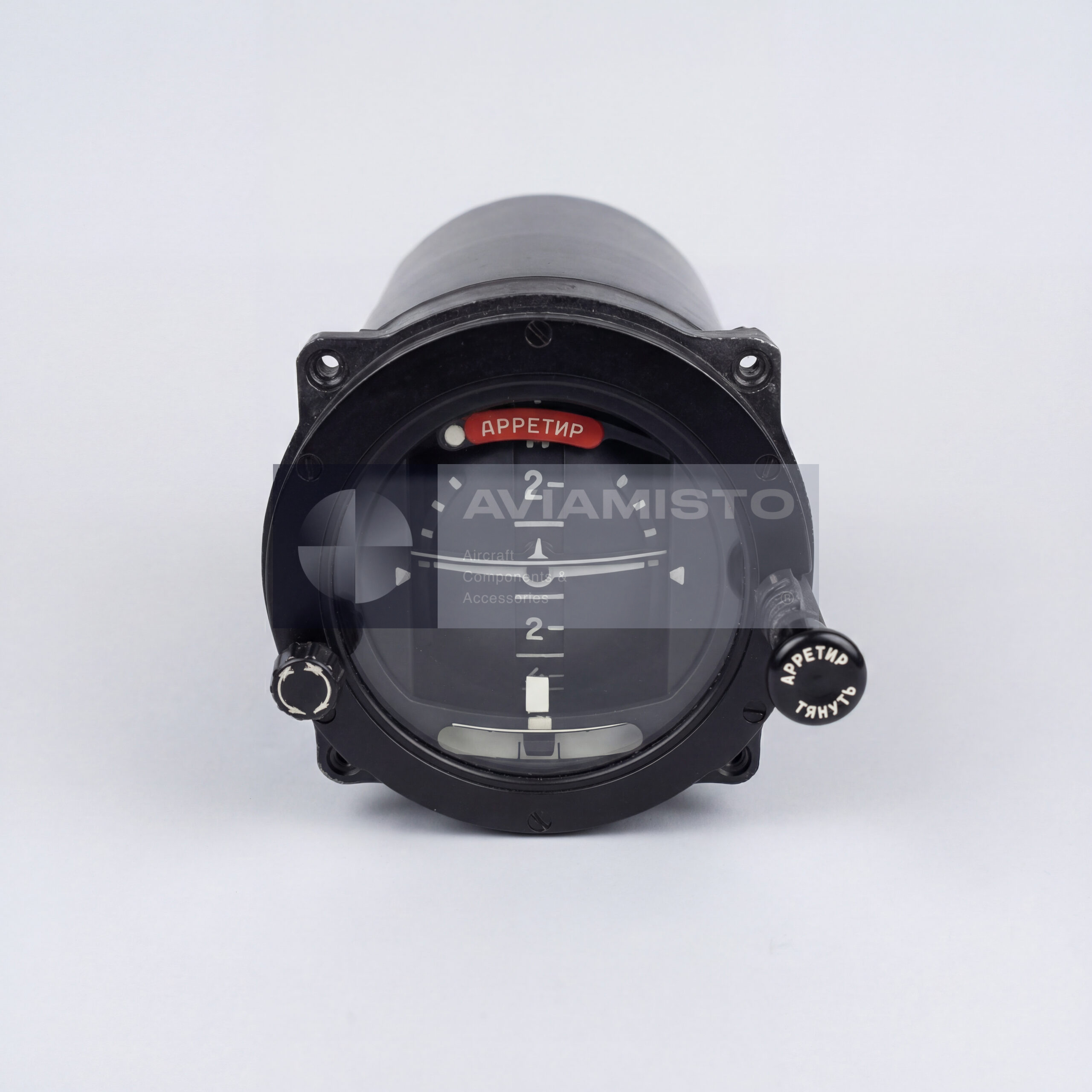

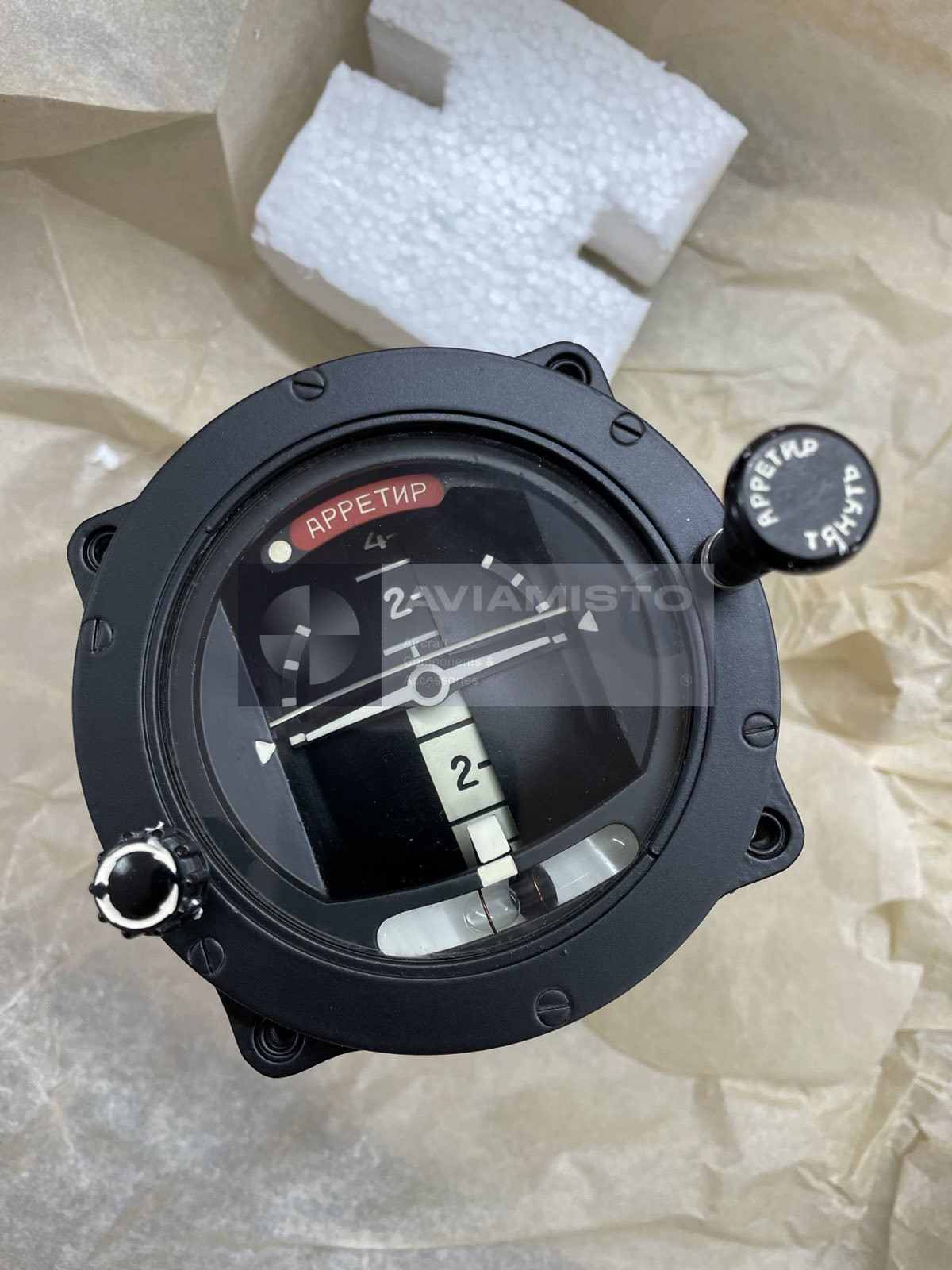

The AGK-47B is an aircraft gyroscopic combined attitude indicator designed to determine the spatial position of an aircraft or helicopter relative to the true horizon. The unit integrates attitude, turn, and slip indication functions within a single instrument and operates as part of the flight-navigation system.
Full descriptionCollapse description
AGK-47B Functional Design
The instrument combines three functions: attitude indication (pitch and roll), turn rate indication, and slip/skid indication. It uses a reverse indication principle (“ground-to-aircraft”), where the horizon reference moves relative to a fixed aircraft symbol.
AGK-47B Operational Characteristics
The AGK-47B provides roll indication within ±95° and pitch indication within ±85°. It also indicates turn rate up to 4 degrees per second. The unit operates under typical aircraft vibration and environmental conditions and maintains stable gyroscopic reference during flight.
AGK-47B Application
The instrument is used on fixed-wing aircraft and helicopters as part of flight-navigation and instrument systems. It is installed on legacy aircraft platforms and is compatible with early AGK-47 series configurations. Production of early versions has been discontinued, and the unit is currently available for maintenance and continued operation of existing aircraft fleets.
Technical details
- Product Type
- Electrical gyroscopic combined attitude indicator
- Purpose
- Determination of aircraft spatial position relative to the true horizon
- Systems
- Flight-navigation and instrument equipment
- Functions
- Attitude indication, turn indication, slip/skid indication
- Indication Type
- Reverse (“ground-to-aircraft”)
All specificationsCollapse specifications
- Roll Range
- ±95°
- Pitch Range
- ±85°
- Turn Rate Indication
- Up to 4 deg/s
- DC Power Supply
- 27 V
- AC Power Supply
- 36 V, 400 Hz, three-phase
- Application
- An-2, An-3, Il-14, Li-2, PZL-104 Wilga aircraft; Mi-2, Mi-4, Mi-6, Mi-10, Ka-25, Ka-26 helicopters
- Compatibility
- AGK-47 series (early modifications)
- Weight
- Approximately 2.2 kg
- Production Status
- Discontinued
- Documentation
- Operational documentation available upon request

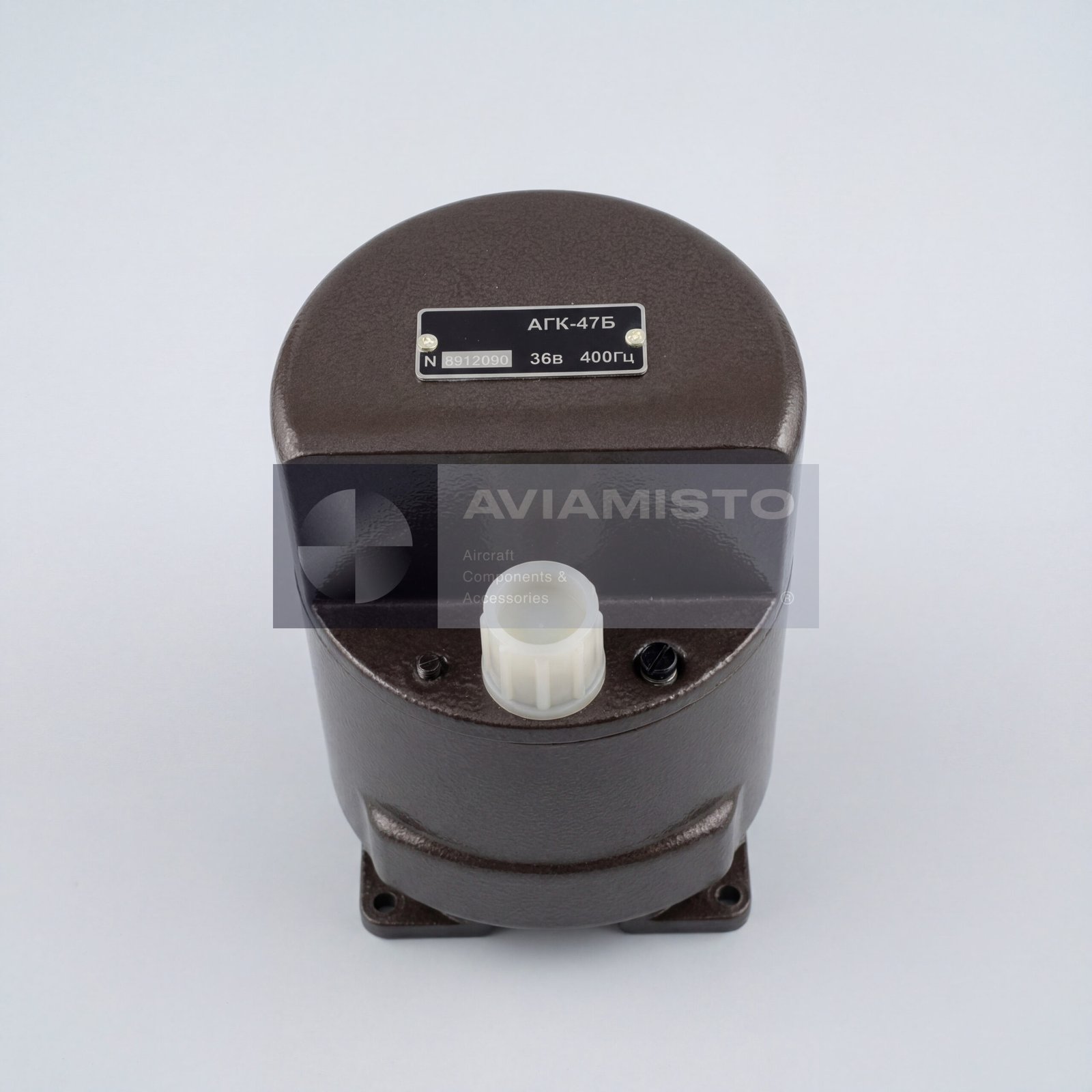

- Russian designation
- АГК-47Б
