ITE-1

Remote tachometer operating principle

A tachometer generator converts drive-shaft rotation into a three-phase electrical signal whose frequency is proportional to speed. Inside the indicator, this signal produces a rotating magnetic field. The magneto-inductive measuring mechanism then converts rotational velocity into pointer displacement.

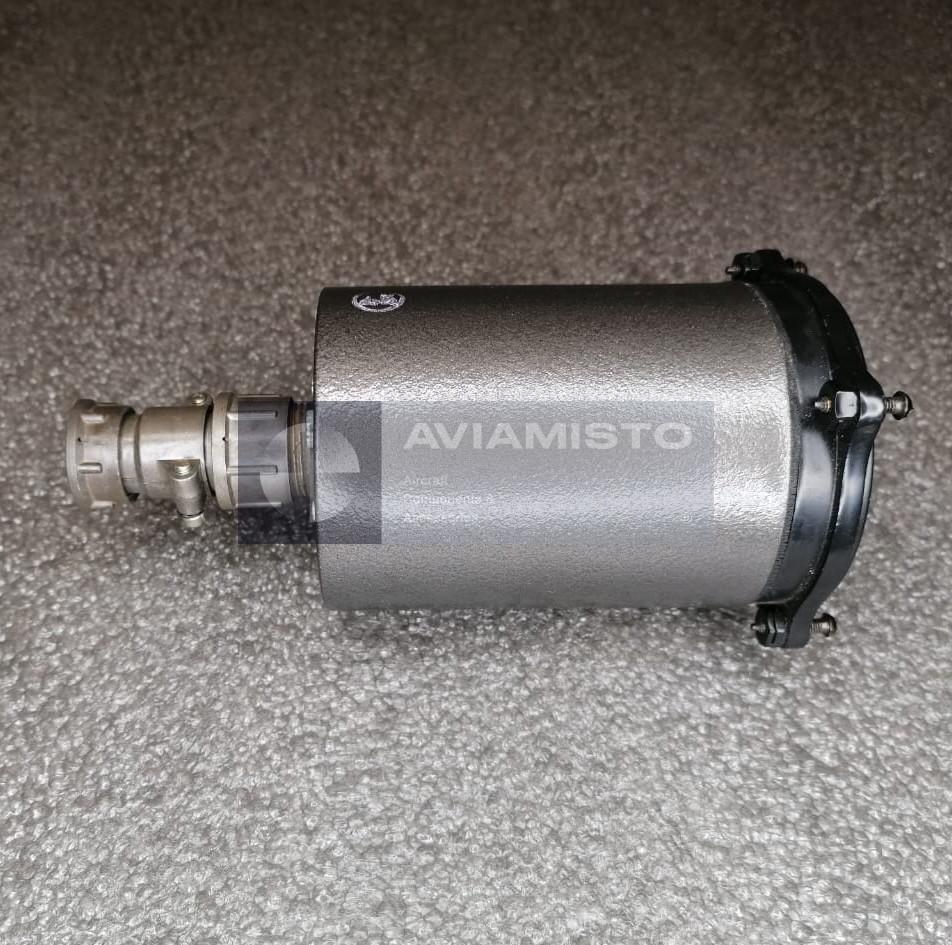

In the classic arrangement, one DTE-1 generator supplies one ITE-1 indicator. A DTE-2 generator can serve two separate ITE-1 indicators; the aircraft wiring documentation defines the actual connection. Cable routing, phase connection and the mechanical drive ratio are parts of the measuring channel and must match the approved installation documentation.

ITE-1 scale and operating data

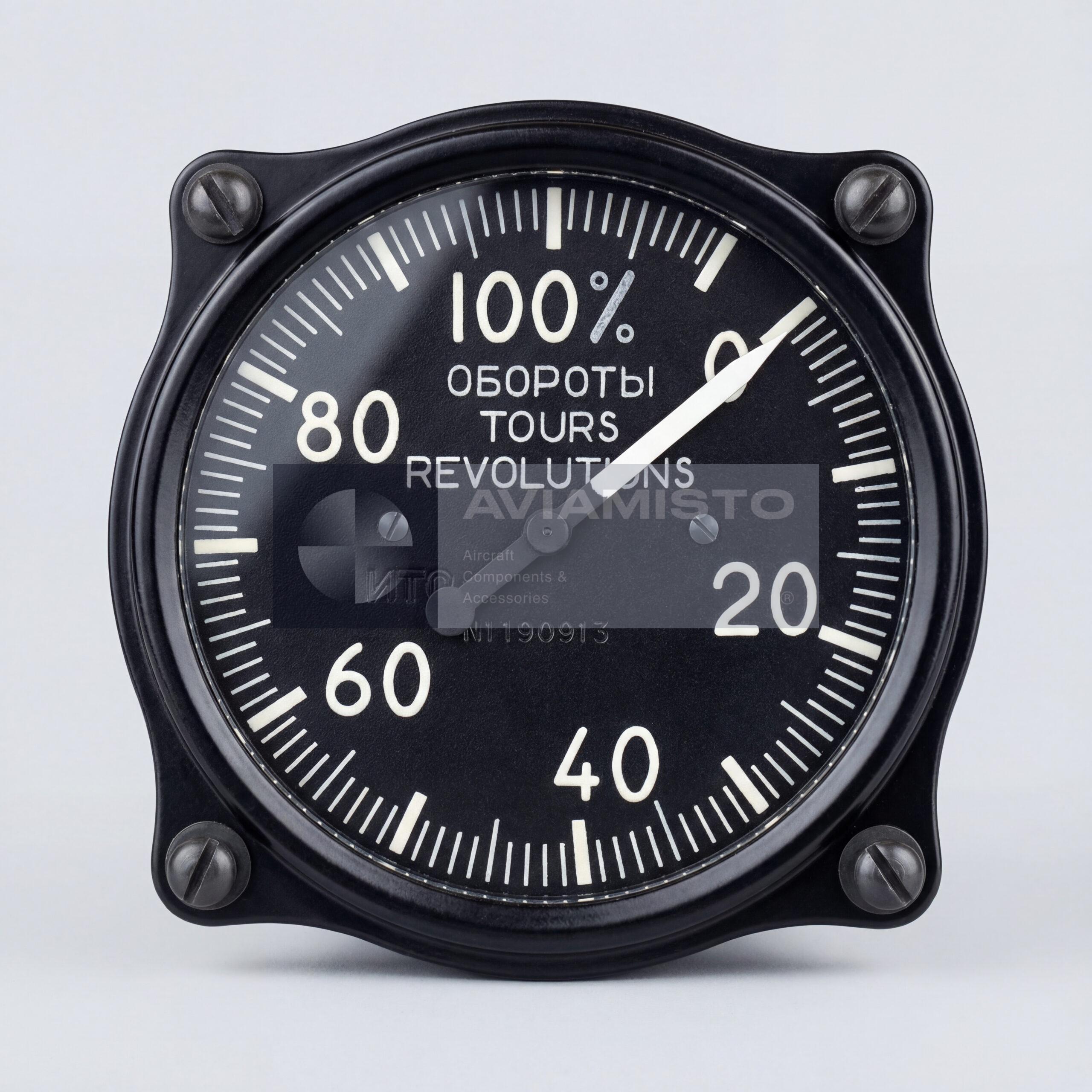

Classic ITE instruments have a uniform percentage scale with 1% divisions. Early documentation records scales ending at 105%, while later production uses 110%; the lower measuring limit is 10% and the working section is 60–100%. The actual dial and passport therefore remain the final identification references.

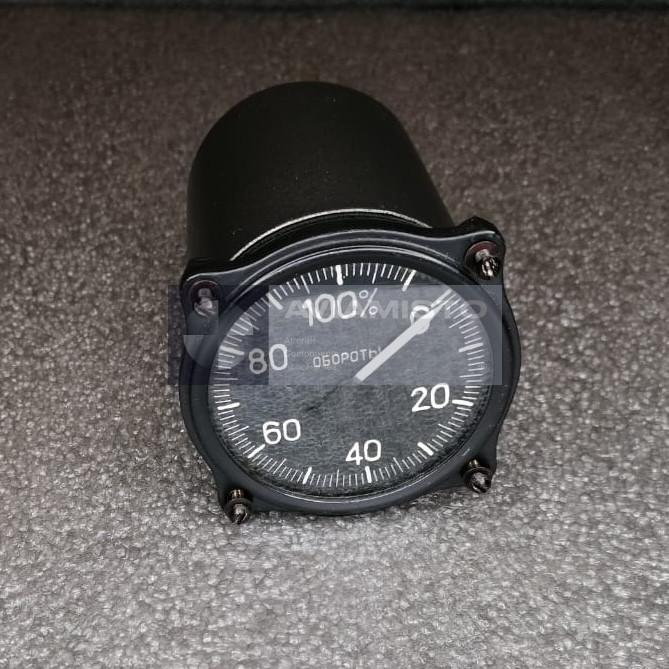

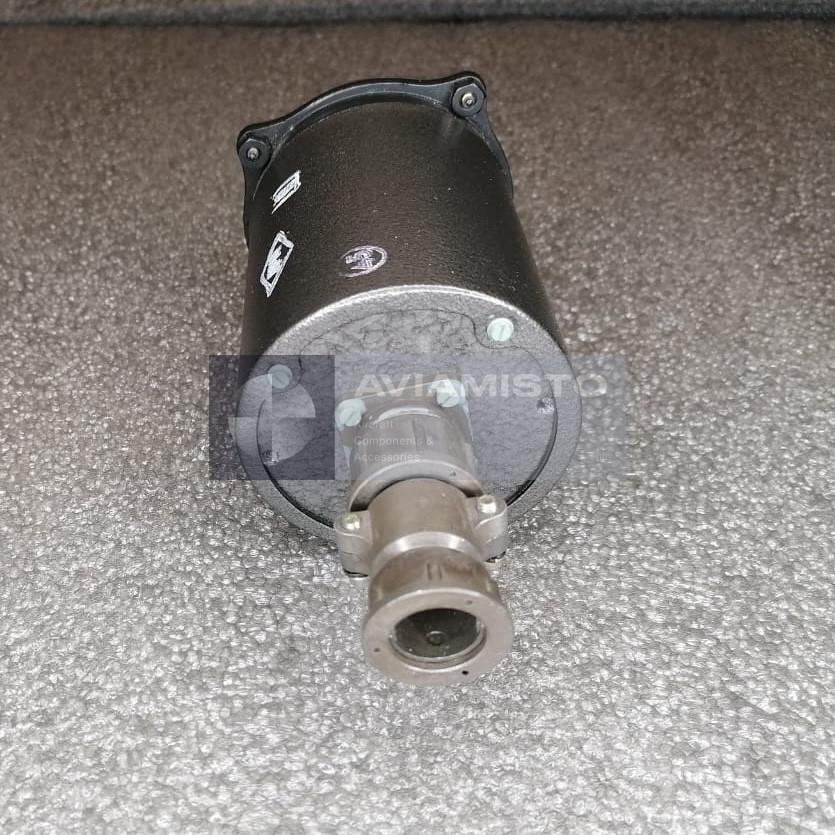

Indication accuracy is checked with the generator on a tachometer test unit or against a reference frequency. Before installation, inspect pointer movement and zero, the dial, connector, housing and lighting. A similar appearance between ITE variants does not establish identical calibration or electrical compatibility.

Identification and ordering

An inquiry should state the exact ITE-1 designation, dial execution, range, lighting type, associated generator and aircraft. TB, TB1 and TB2 suffixes identify separate executions and must not be treated as interchangeable without supporting documentation.

More flight and engine instruments are listed in the Aviamisto Altimeters and Indicators category. Photographs of the dial and nameplate, plus any required passport or test records, help confirm the correct unit. Related products displayed with this card are not automatically approved substitutes.
