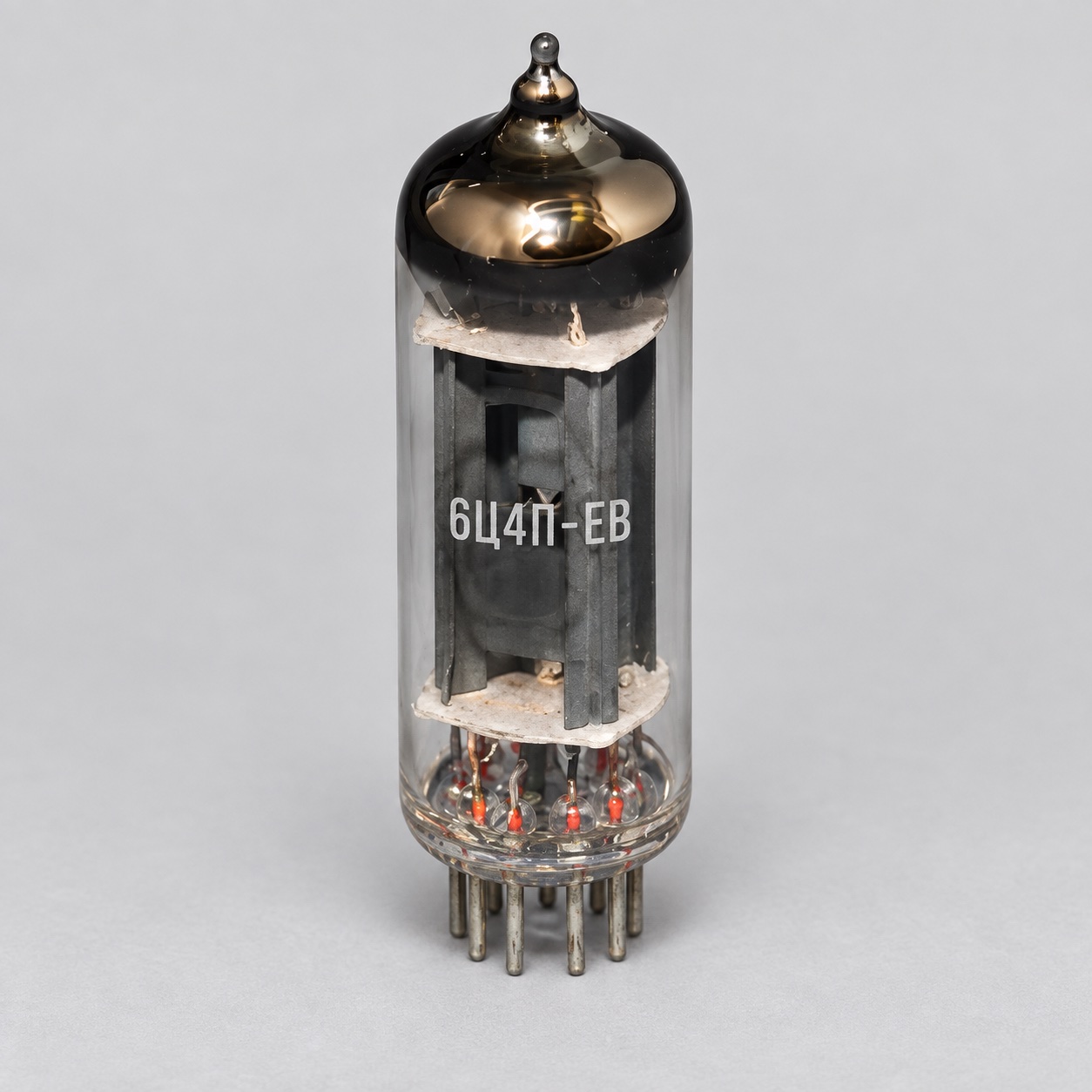

6TS4P-EV
Dual-anode rectifier tube
Description
Purpose of 6C4P-EV
6C4P-EV is an indirectly heated dual-anode rectifier tube for converting industrial-frequency AC voltage in low-power power supplies. The EV version is intended for extended service and increased mechanical reliability.
Full descriptionCollapse description
Construction and selection
The tube has an oxide cathode, a glass miniature envelope and a seven-pin base. It can operate in any position. Verify the heater supply, transformer winding voltage and filter circuit against the original equipment documentation before installation.
Related products are listed in the receiving and amplifying tube category. The operating principle is described in the vacuum tube reference.
Technical details
- Designation
- 6C4P-EV
- Product type
- Indirectly heated dual-anode rectifier tube
- Function
- AC rectification in low-power power supplies
- Heater voltage
- 6.3 V
- Heater current
- 450 ± 45 mA
All specificationsCollapse specifications
- Transformer secondary voltage
- 2 × 350 V in the reference circuit
- Anode circuit resistance
- 5,200 Ω
- Filter capacitance
- 8 µF
- Rectified current
- at least 72 mA
- Peak reverse anode voltage
- 900 V maximum
- Average rectified current
- 75 mA maximum
- Envelope
- glass miniature
- Base
- 7-pin
- Operating position
- any
- Minimum operating life
- 5,000 h
- Mass
- 15 g
