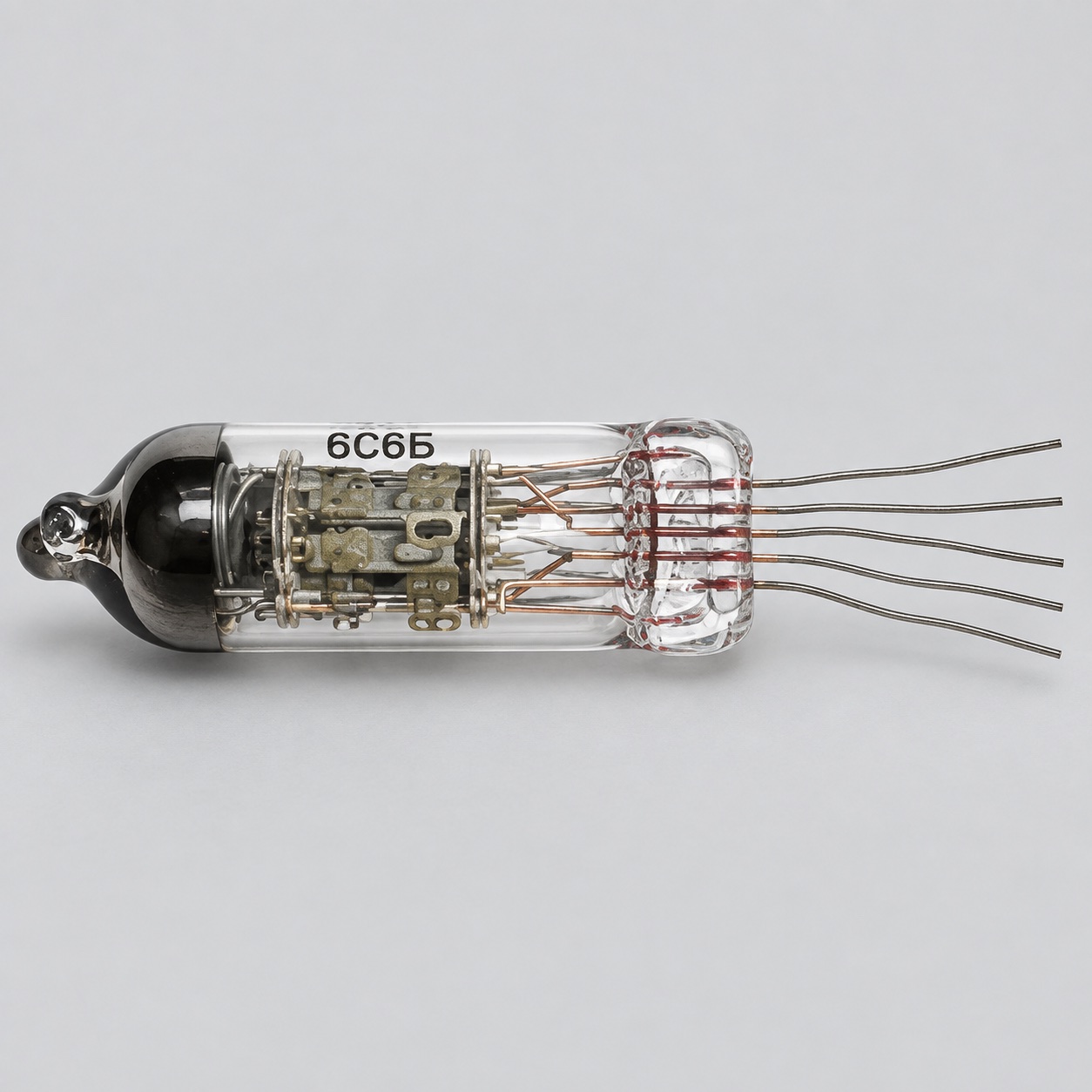

6S6B
Subminiature glass triode
Description
Purpose of 6S6B
6S6B is a subminiature glass triode for voltage amplification and high-frequency oscillation generation. Select it by the complete designation and the operating conditions specified for the original circuit.
Full descriptionCollapse description
Construction and selection
The glass envelope allows the electrode system to be inspected before installation. Check the heater supply, connection arrangement and electrode operating conditions against the equipment documentation.
Related products are listed in the receiving and amplifying tube category. The operating principle is described in the vacuum tube reference.
Technical details
- Designation
- 6S6B
- Product type
- Subminiature glass triode
- Function
- Voltage amplification and high-frequency oscillation generation
- Heater voltage
- 6.3 V
- Heater current
- 200 ± 20 mA
All specificationsCollapse specifications
- Anode current
- approximately 9 ± 2.7 mA
- Transconductance
- approximately 5 mA/V
- Maximum operating frequency
- up to 500 MHz
- Connection
- five flexible wire leads
- Dimensions
- approximately 36 × 10.2 mm
- Mass
- 3.5 g
