6S33S-V
High-reliability power regulating triode
Description
Purpose of 6S33S-V
6S33S-V is a high-reliability power regulating triode for electronic voltage stabilizers and low-frequency power stages. Select it by the complete designation and the operating conditions specified for the original circuit.
Full descriptionCollapse description
Construction and selection

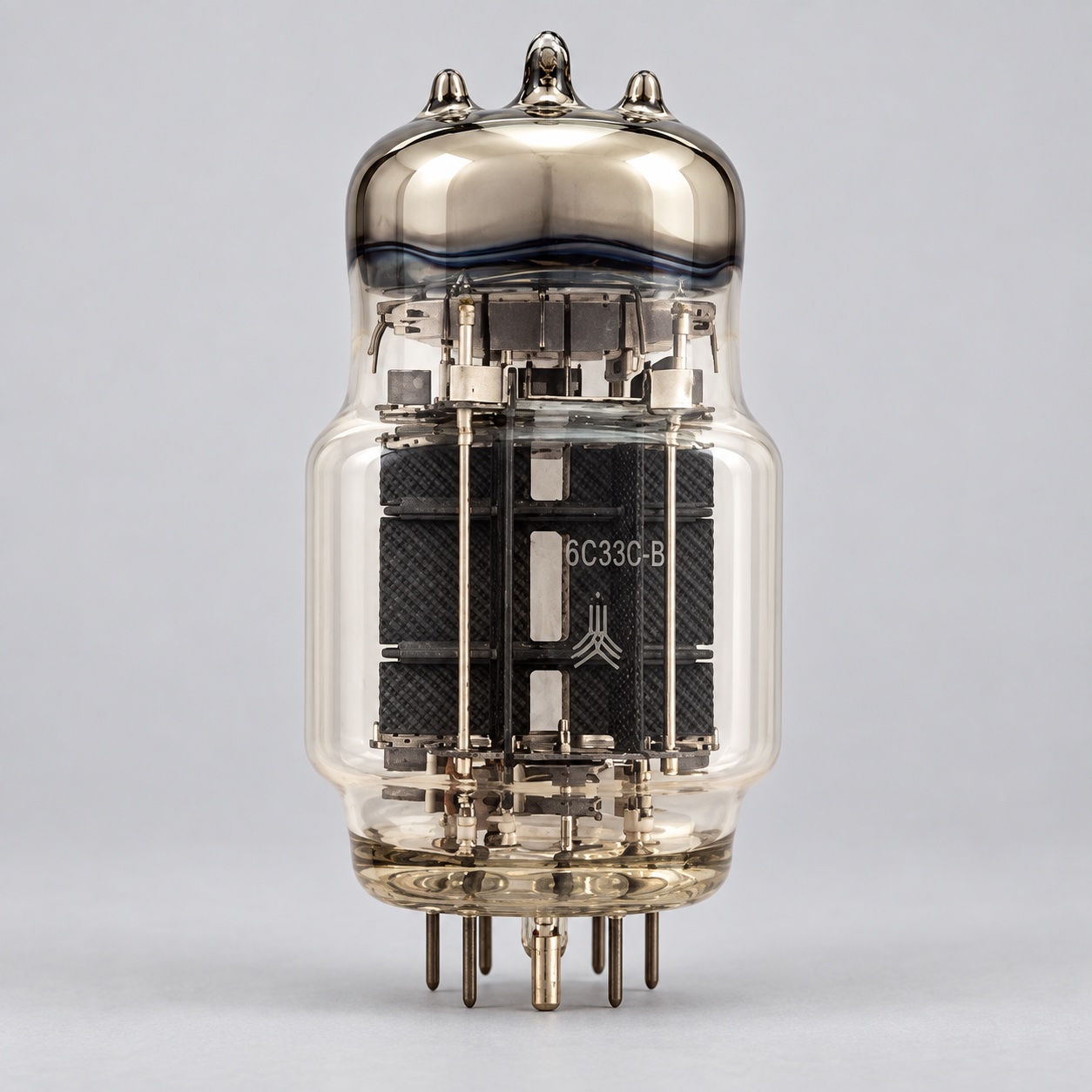

The glass envelope allows the electrode system to be inspected before installation. Check the heater supply, connection arrangement and electrode operating conditions against the equipment documentation.
Related products are listed in the receiving and amplifying tube category. The operating principle is described in the vacuum tube reference.
Technical details
- Designation
- 6S33S-V
- Product type
- High-reliability power regulating triode
- Function
- Electronic voltage stabilizers and low-frequency power stages
- Heater voltage
- 12.6 V; 6.3 V with parallel heater connection
- Heater current
- approximately 3.2–3.3 A at 12.6 V
All specificationsCollapse specifications
- Anode voltage
- 120 V at the reference operating point
- Anode current
- 540 ± 90 mA
- Transconductance
- 39 ± 11 mA/V
- Internal resistance
- not more than 130 Ω
- Version
- increased mechanical reliability
- Envelope
- glass
