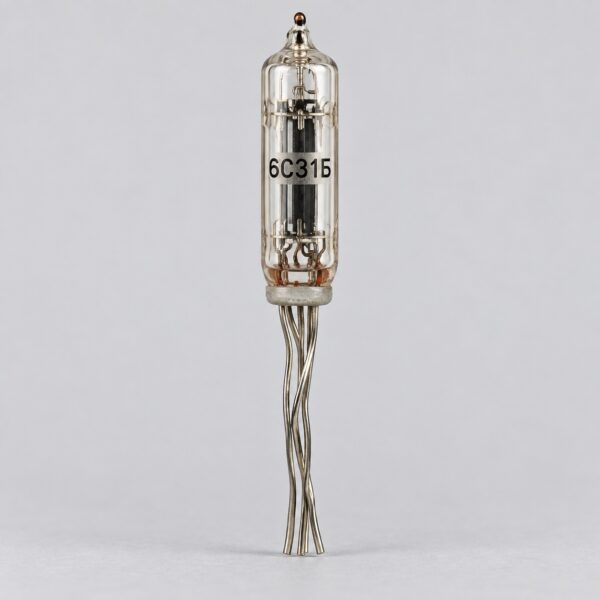

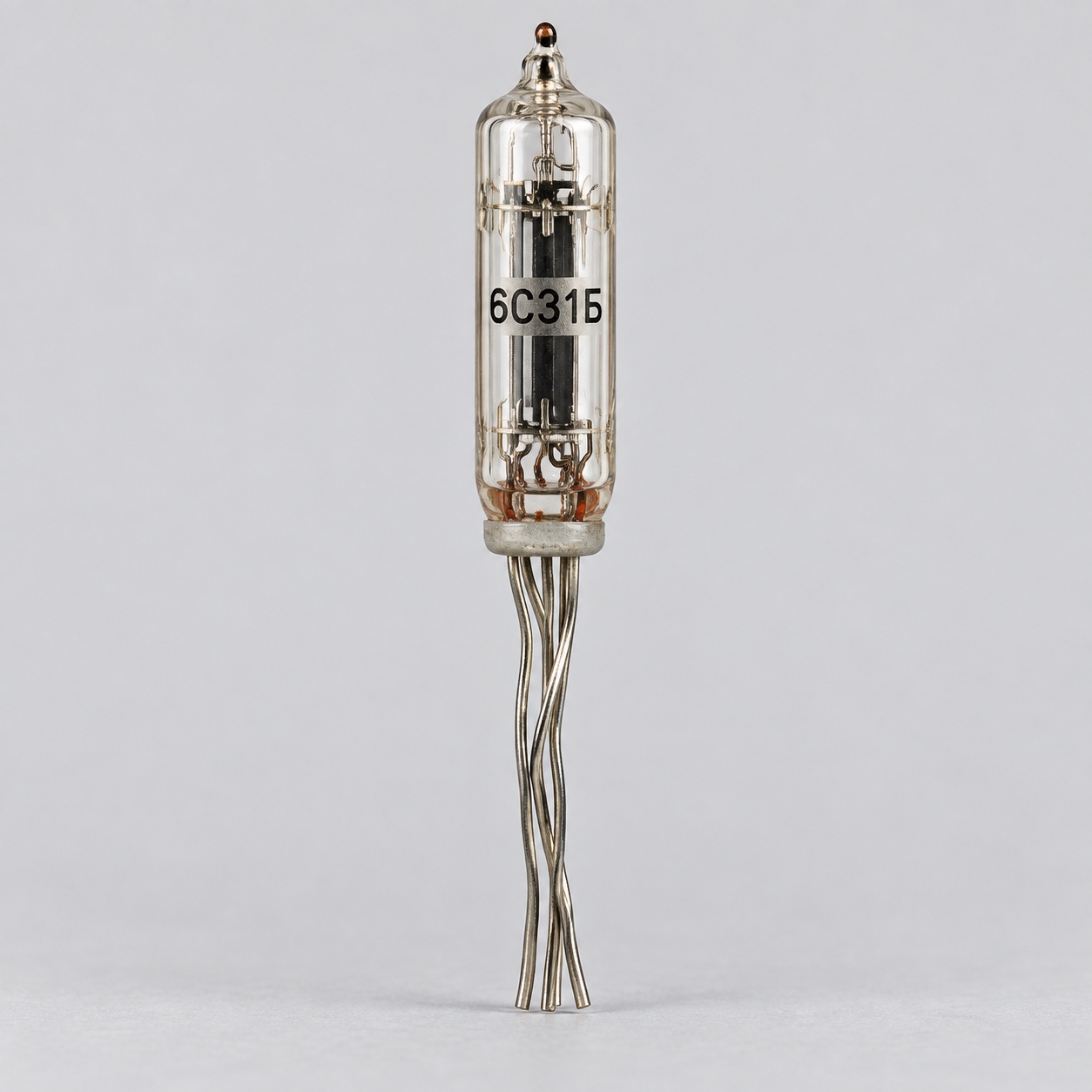

6S31B
Subminiature triode
Description
Purpose of 6S31B
6S31B is a subminiature triode designed for low-frequency voltage amplification. It is selected by the complete designation and the operating conditions of the original circuit.
Full descriptionCollapse description
Construction and selection
The tube uses a glass envelope. Before installation, verify the base or leads, heater supply and electrode operating conditions against the equipment documentation.
Related products are listed in the receiving and amplifying tube category. The operating principle is covered in the vacuum tube reference.
Technical details
- Designation
- 6S31B
- Product type
- Subminiature triode
- Function
- Low-frequency voltage amplification
- Heater voltage
- 6.3 V
- Heater current
- 220 ± 22 mA
All specificationsCollapse specifications
- Anode voltage
- 50 V at the reference operating point
- Anode current
- 40 ± 10 mA
- Transconductance
- 18 mA/V (+6/−5)
- Envelope
- subminiature glass
- Connection
- flexible wire leads
- Mass
- 3.5 g
