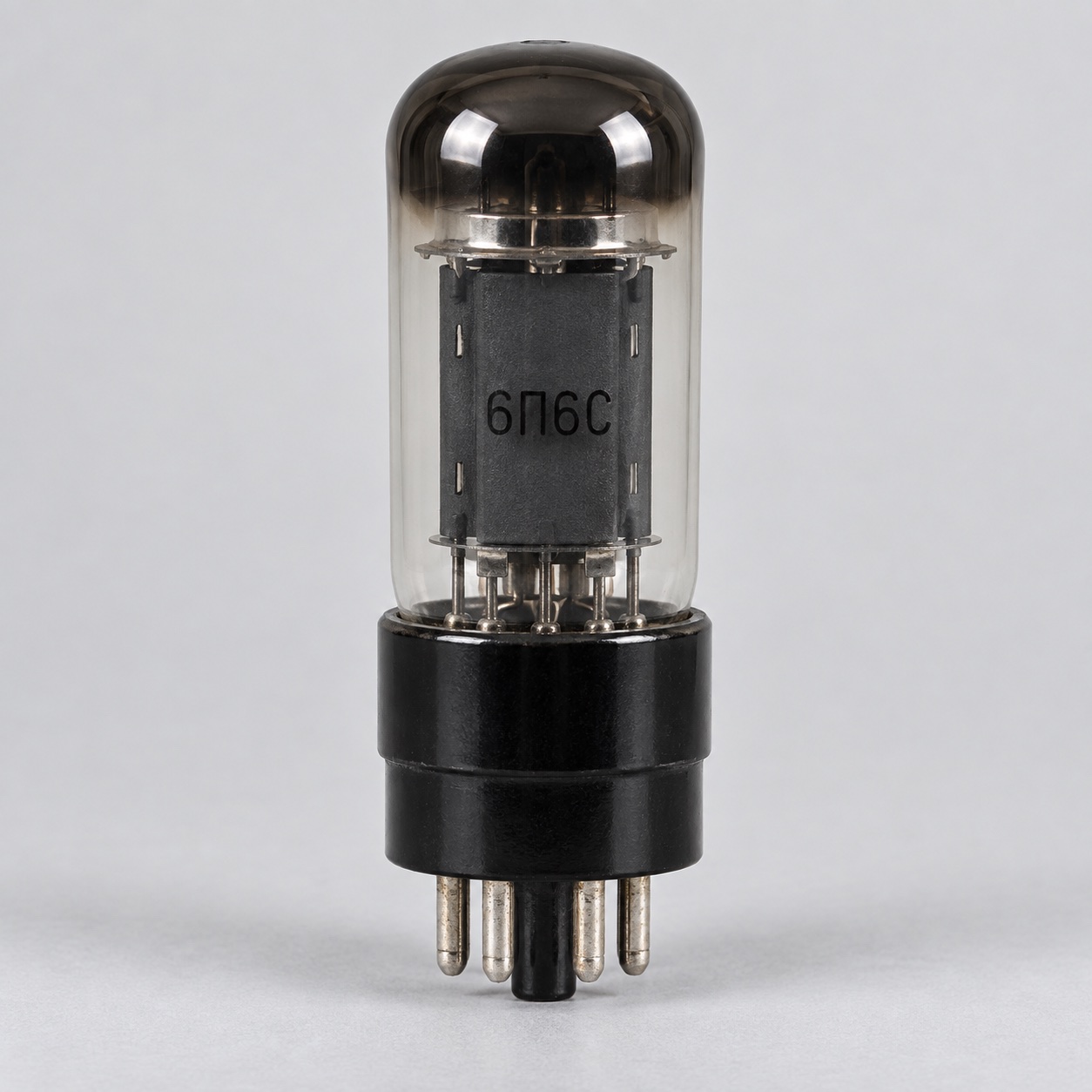

6P6S
Output beam tetrode
Description
Purpose of 6P6S
6P6S is a output beam tetrode designed for single-ended and push-pull low-frequency output stages. It is selected by the complete designation and the operating conditions of the original circuit.
Full descriptionCollapse description
Construction and selection
The tube uses a glass envelope. Before installation, verify the base or leads, heater supply and electrode operating conditions against the equipment documentation.
Related products are listed in the receiving and amplifying tube category. The operating principle is covered in the vacuum tube reference.
Technical details
- Designation
- 6P6S
- Product type
- Output beam tetrode
- Function
- Single-ended and push-pull low-frequency output stages
- Heater voltage
- 6.3 V
- Anode voltage
- 250 V in the reference operating point
All specificationsCollapse specifications
- Output power
- 3.6 W in the reference operating point
- Envelope
- glass
- Base
- octal keyed base with six contact pins
- Cathode
- indirectly heated oxide cathode
- Operating position
- any
