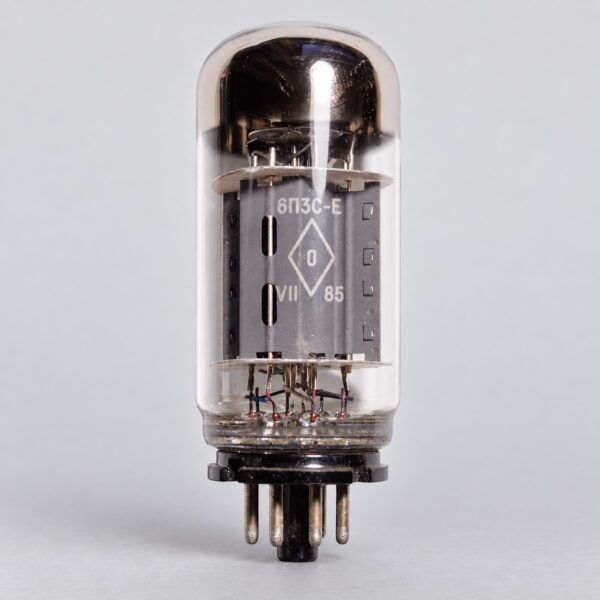

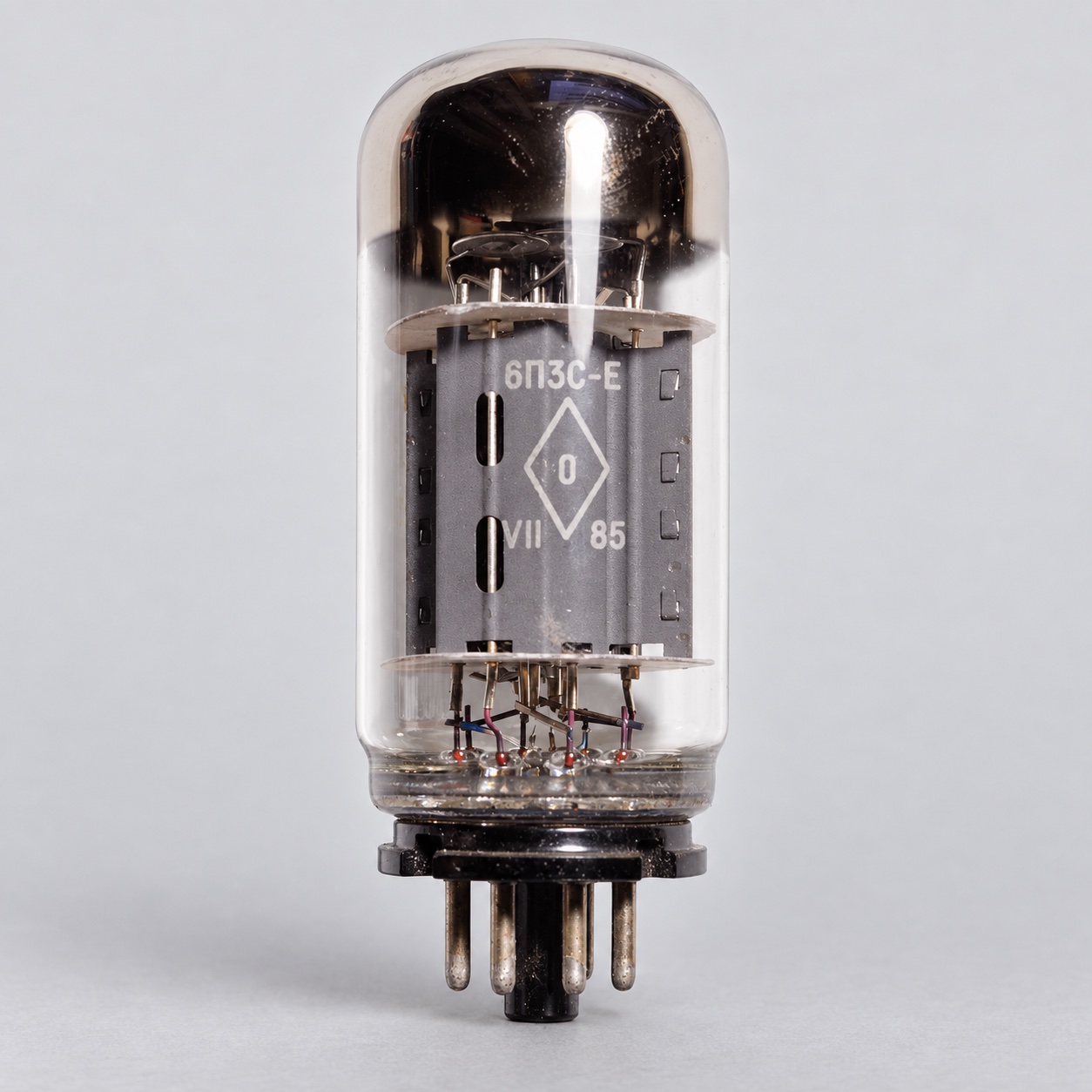

6P3S-E
Long-life output beam tetrode
Description
Purpose of 6P3S-E
6P3S-E is a long-life output beam tetrode designed for low-frequency power amplifier output stages. It is selected by the complete designation and the operating conditions of the original circuit.
Full descriptionCollapse description
Construction and selection
The tube uses a glass envelope. Before installation, verify the base or leads, heater supply and electrode operating conditions against the equipment documentation.
Related products are listed in the receiving and amplifying tube category. The operating principle is covered in the vacuum tube reference.
Technical details
- Designation
- 6P3S-E
- Product type
- Long-life output beam tetrode
- Function
- Low-frequency power amplifier output stages
- Heater voltage
- 6.3 V
- Heater current
- 0.88 A nominal
All specificationsCollapse specifications
- Anode voltage
- 250 V nominal
- Screen-grid voltage
- 250 V nominal
- Output power
- at least 5.8 W
- Minimum operating life
- 5,000 h
- Envelope
- glass
- Base
- octal keyed base
