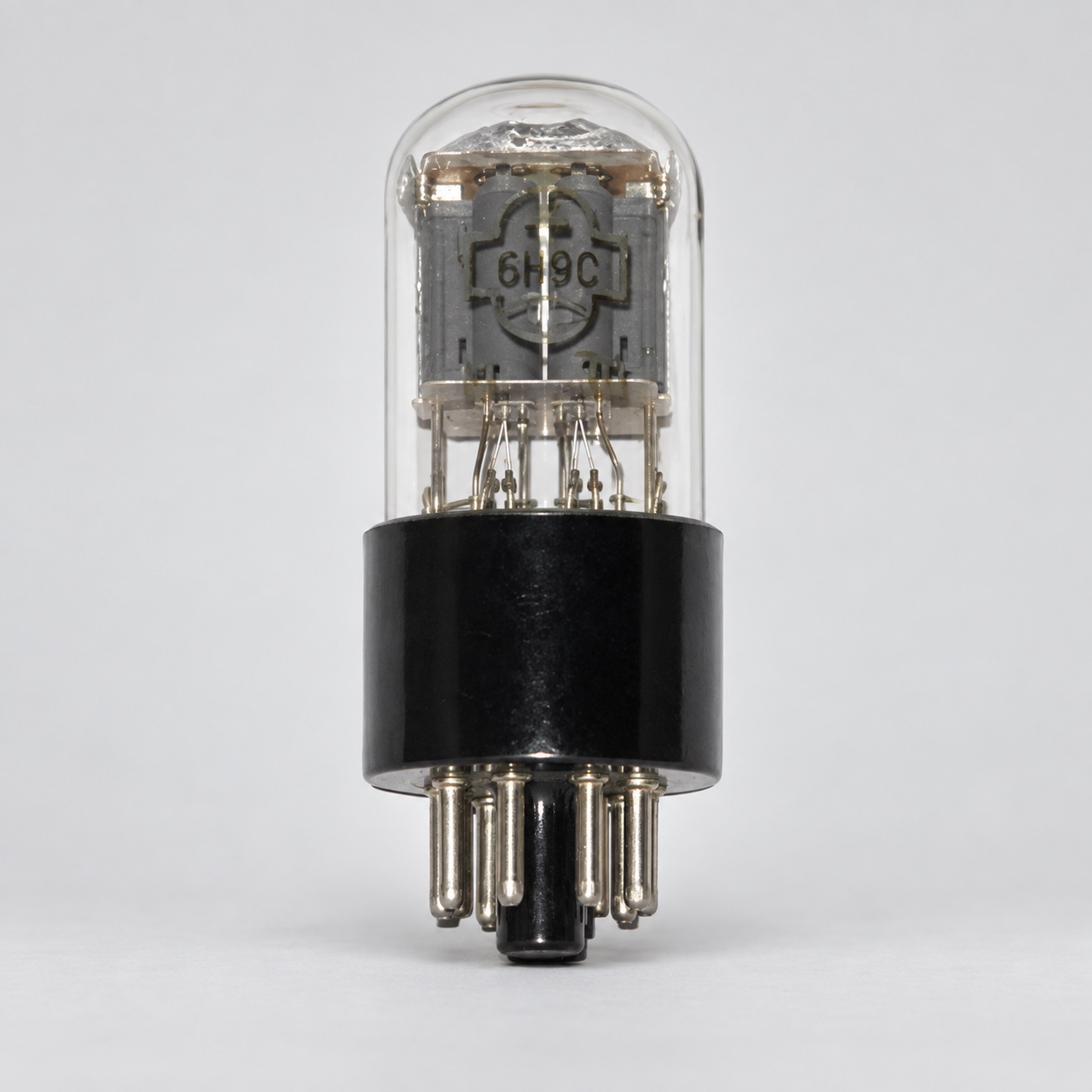

6N9S
High-gain octal double triode
Description
Purpose of 6N9S
6N9S is a High-gain octal double triode intended for low-frequency voltage amplification. The host circuit defines the operating point, so selection must use the complete designation rather than the tube family alone.
Full descriptionCollapse description
Construction and execution
The tube uses a glass envelope. Connection: Octal keyed base. Letter suffixes identify a specific execution and must remain part of the ordered designation.
Selection and installation
Before installation, verify the pinout, heater circuit, operating voltages, currents and permissible dissipation against the host-equipment documentation. Similar appearance does not establish interchangeability.
The general operating principle is described in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N9S
Minimum order: 200 pieces. State the complete designation, quantity and host equipment in the enquiry.
Technical details
- Designation
- 6N9S
- Product type
- High-gain octal double triode
- Function
- low-frequency voltage amplification
- Envelope
- glass
- Connection
- Octal keyed base
All specificationsCollapse specifications
- Execution
- complete marking required for selection
- Operating point
- according to host-equipment documentation
