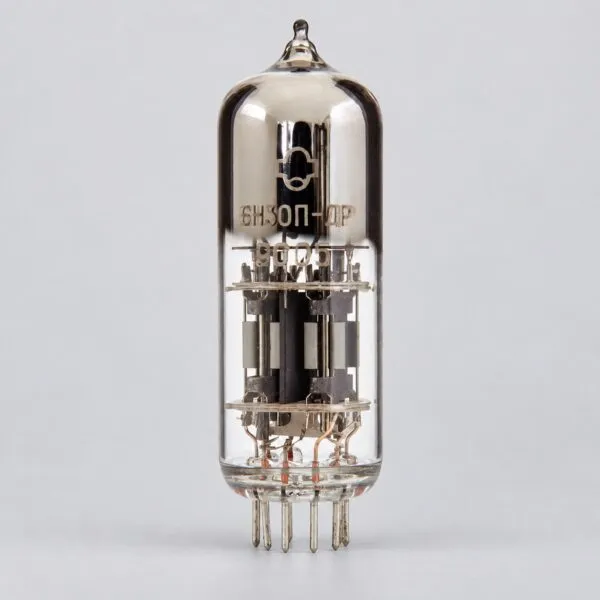

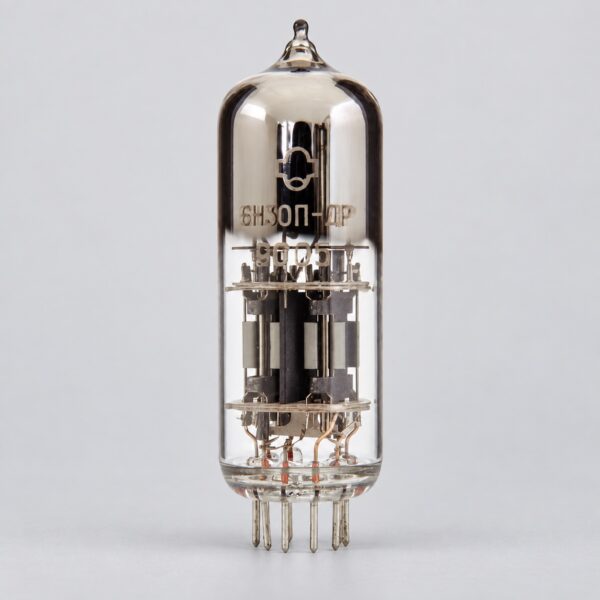

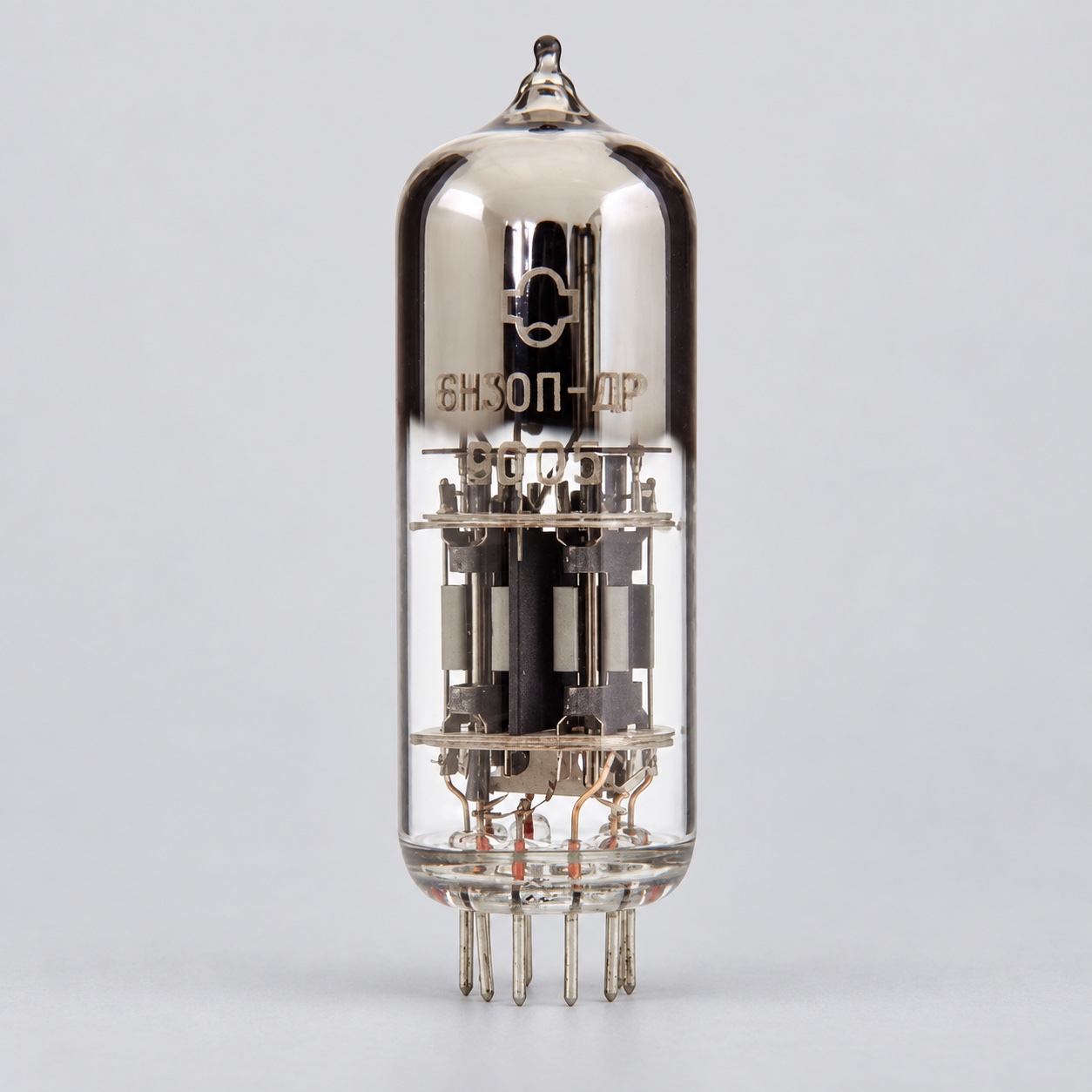

6N30P-DR
Radiation-resistant high-reliability double triode
Description
Purpose of 6N30P-DR
6N30P-DR is a Radiation-resistant high-reliability double triode for pulse operation in specialised radio-electronic equipment. Two electrode systems share one glass envelope, allowing compact multi-stage circuits.
Full descriptionCollapse description
Construction and execution
Selection must retain the complete marking and every suffix. Versions without suffixes or with different suffixes are not treated as identical without documentation.
Selection and installation
Before installation, compare the pinout, heater circuit, operating voltages and permissible anode dissipation with the host-equipment manual. Appearance alone is not a valid substitution criterion.
The operating principle is outlined in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N30P-DR
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N30P-DR
- Product type
- Radiation-resistant high-reliability double triode
- Systems
- Two triodes
- Envelope
- Miniature glass
- Base
- Nine-pin button base
All specificationsCollapse specifications
- Heater voltage
- 6.3 V
- Heater current
- 0.825 A
- Maximum anode voltage
- 450 V
- Maximum anode dissipation, each triode
- 4 W
- Minimum service life
- 5000 h
- Maximum mass
- 20 g
- Execution
- -DR: extended life and radiation resistance
