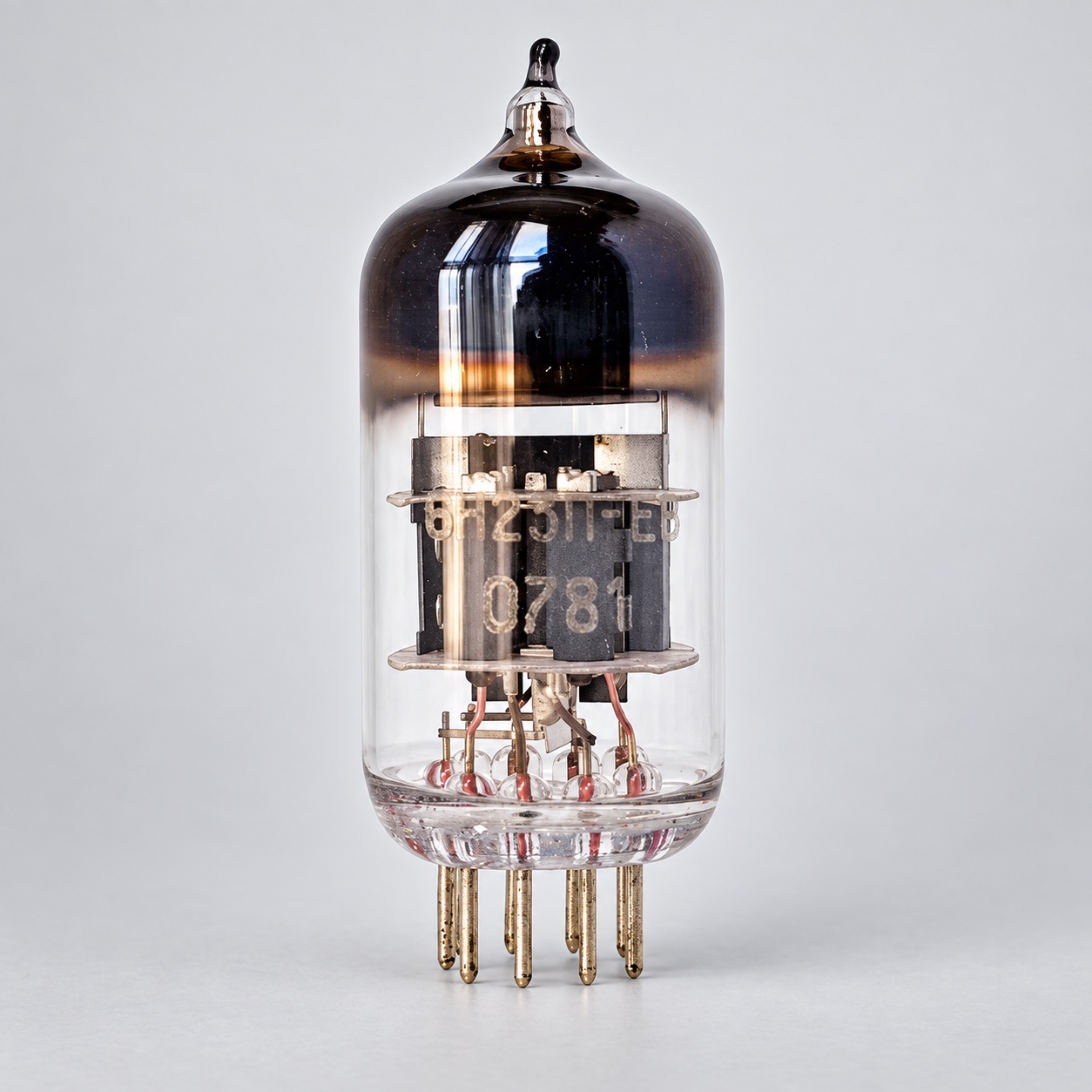

6N23P-EV
High-reliability low-noise double triode
Description
Purpose of 6N23P-EV
6N23P-EV is a High-reliability low-noise double triode for broadband RF amplification, frequency conversion and low-power pulse circuits. Two electrode systems share one glass envelope, allowing compact multi-stage circuits.
Full descriptionCollapse description
Construction and execution
Selection must retain the complete marking and every suffix. Versions without suffixes or with different suffixes are not treated as identical without documentation.
Selection and installation
Before installation, compare the pinout, heater circuit, operating voltages and permissible anode dissipation with the host-equipment manual. Appearance alone is not a valid substitution criterion.
The operating principle is outlined in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N23P-EV
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N23P-EV
- Product type
- High-reliability low-noise double triode
- Systems
- Two triodes
- Envelope
- Miniature glass
- Base
- Nine-pin button base
All specificationsCollapse specifications
- Heater voltage
- 6.3 V
- Heater current
- 0.3 A
- Nominal anode voltage
- 120 V
- Nominal anode current
- 15 mA
- Minimum service life
- 5000 h
- Maximum mass
- 16 g
- Execution
- -E extended life; -V increased reliability and mechanical strength
Payment & delivery
Orders ship from our hub in Dubai. Partner stock is first transferred to Dubai, then shipped to you.
Dubai stock: 100% before dispatch. Partner stock (Remote stock) and Pre-order: 50% advance payment to start the order and 50% before shipment from Dubai to you.
Availability, lead time, delivery cost and payment terms are confirmed for your order before payment.
