6N23P
Low-noise miniature double triode
Description
Purpose of 6N23P
The 6N23P is a low-noise miniature double triode for broadband high-frequency amplification and frequency conversion. It is also used in low-power pulse generators and low-frequency preamplifier stages where two matched triode systems in one envelope are useful.
Full descriptionCollapse description
Construction and execution

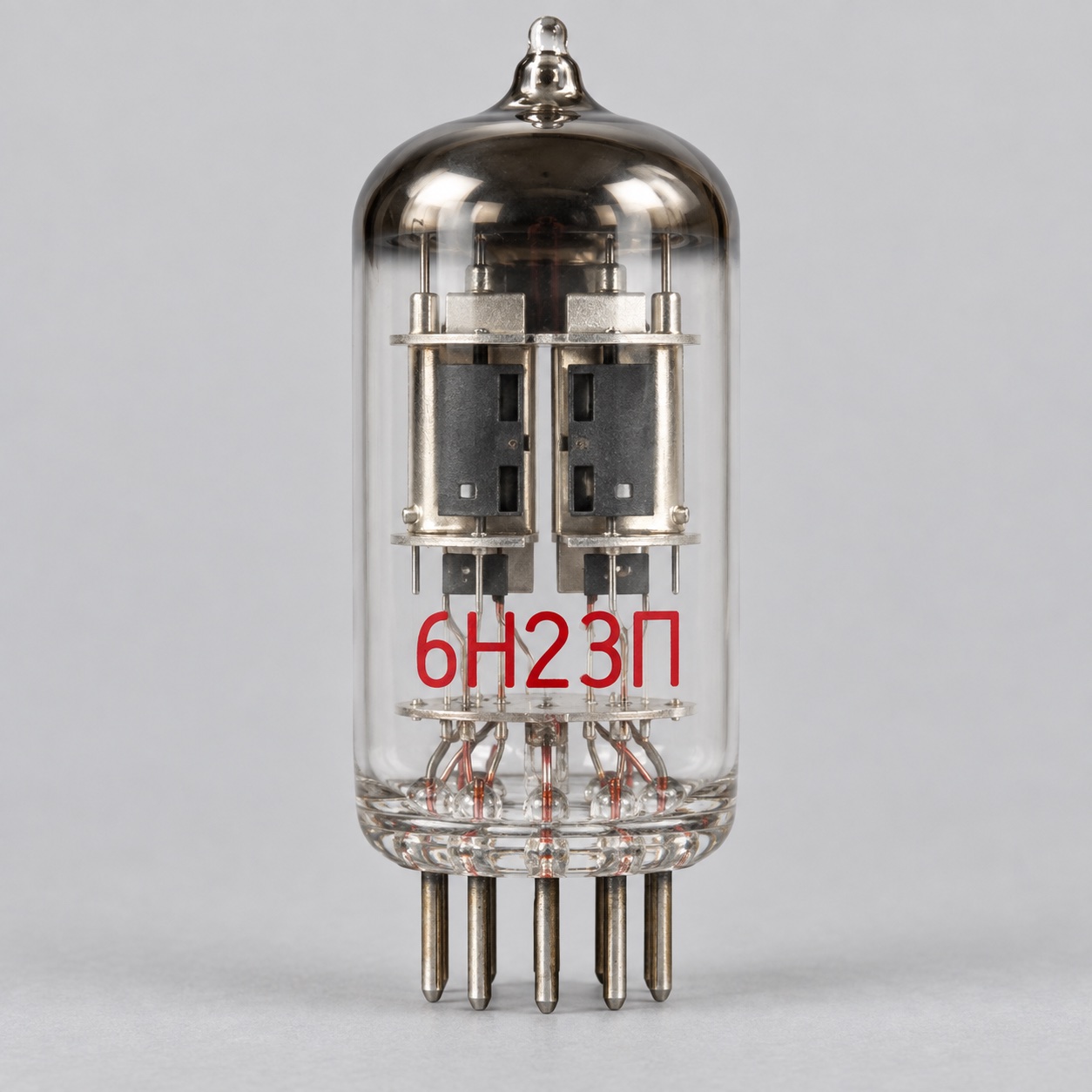

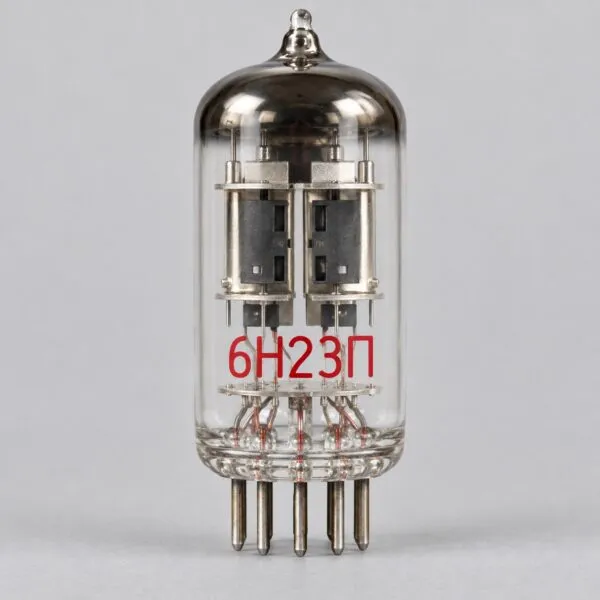

The tube has a cylindrical glass envelope, nine-pin button base and two triode sections. Reference operating data list a 6.3 V heater, approximately 0.3 A heater current, 120 V anode voltage and about 15 mA anode current. The compact format suits densely assembled radio equipment.
Selection and installation
Selection requires the complete 6N23P designation and verification of socket wiring, heater circuit, bias and permissible electrode ratings. Versions with additional suffixes are separate executions and should not be treated as identical without documentation.
The operating principle is described in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N23P
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N23P
- Product type
- Low-noise miniature double triode
- Function
- Broadband RF amplification and frequency conversion
- Systems
- Two triodes
- Envelope
- Miniature glass envelope
All specificationsCollapse specifications
- Base
- Nine-pin button base
- Heater voltage
- 6.3 V
- Heater current
- Approximately 0.3 A
- Nominal anode voltage
- 120 V
- Nominal anode current
- Approximately 15 mA
- Maximum mass
- 16 g
- Minimum service life
- 1000 h
