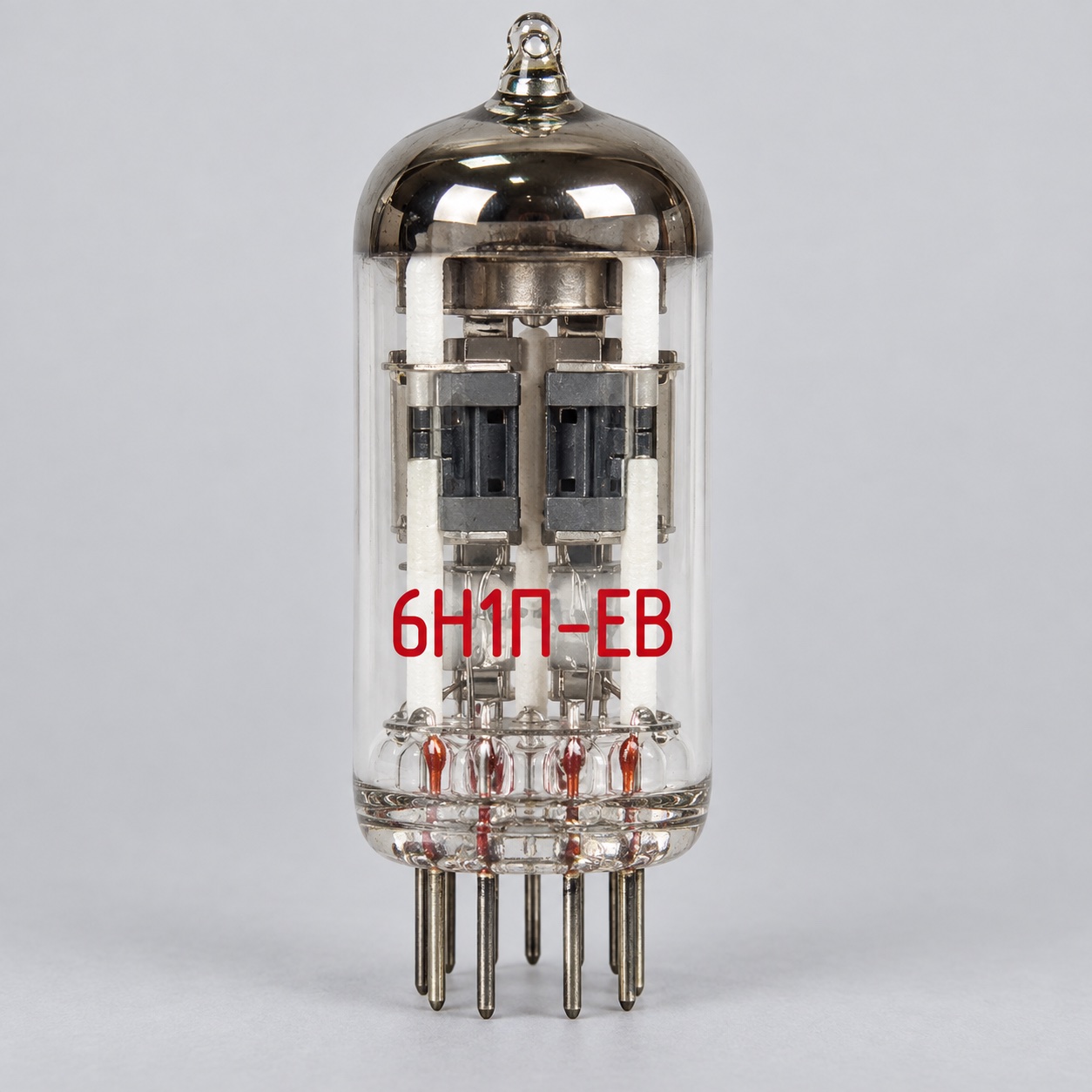

6N1P-EV
High-reliability miniature double triode
Description
Purpose of 6N1P-EV
The 6N1P-EV is a miniature double triode for low-frequency voltage amplification. Two triode systems with separate cathodes are housed in one envelope, allowing two amplifier stages or a balanced circuit to be built with a single tube.
Full descriptionCollapse description
Construction and execution
The cylindrical glass envelope has a nine-pin button base. The “-E” suffix denotes extended service life, while “-V” denotes increased reliability and mechanical strength. These suffixes identify a specific execution and must remain part of the ordered designation.
Selection and installation
Before replacement, compare the complete marking, nine-pin wiring, heater current, bias and anode load with the original circuit. Similar double triodes may have the same outline but different operating points and should not be substituted by appearance.
The operating principle is described in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N1P-EV
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N1P-EV
- Product type
- High-reliability miniature double triode
- Function
- Low-frequency voltage amplification
- Systems
- Two triodes with separate cathodes
- Envelope
- Miniature glass envelope
All specificationsCollapse specifications
- Base
- Nine-pin button base
- Heater voltage
- 6.0–6.6 V
- Heater current
- 600 ± 50 mA
- Anode voltage
- 250 V
- Anode current, each triode
- 7.5 ± 1.5 mA
- Transconductance
- 4.0–5.4 mA/V
- Maximum anode dissipation
- 2.2 W
- Maximum cathode current
- 25 mA
- Dimensions
- Approximately 53 × 22.5 mm
- Minimum service life
- 5000 h
- Operating temperature
- −60 to +90 °C
- Execution suffixes
- -E extended life; -V increased reliability and mechanical strength
