6N13S
Low-resistance dual power triode
Description
Purpose of 6N13S
The 6N13S is a dual power triode designed primarily as a regulating valve in electronic voltage stabilisers. Its low internal resistance and two separate triode systems also allow use in push-pull low-frequency amplifier stages when the circuit is designed for this tube.
Full descriptionCollapse description
Construction and execution

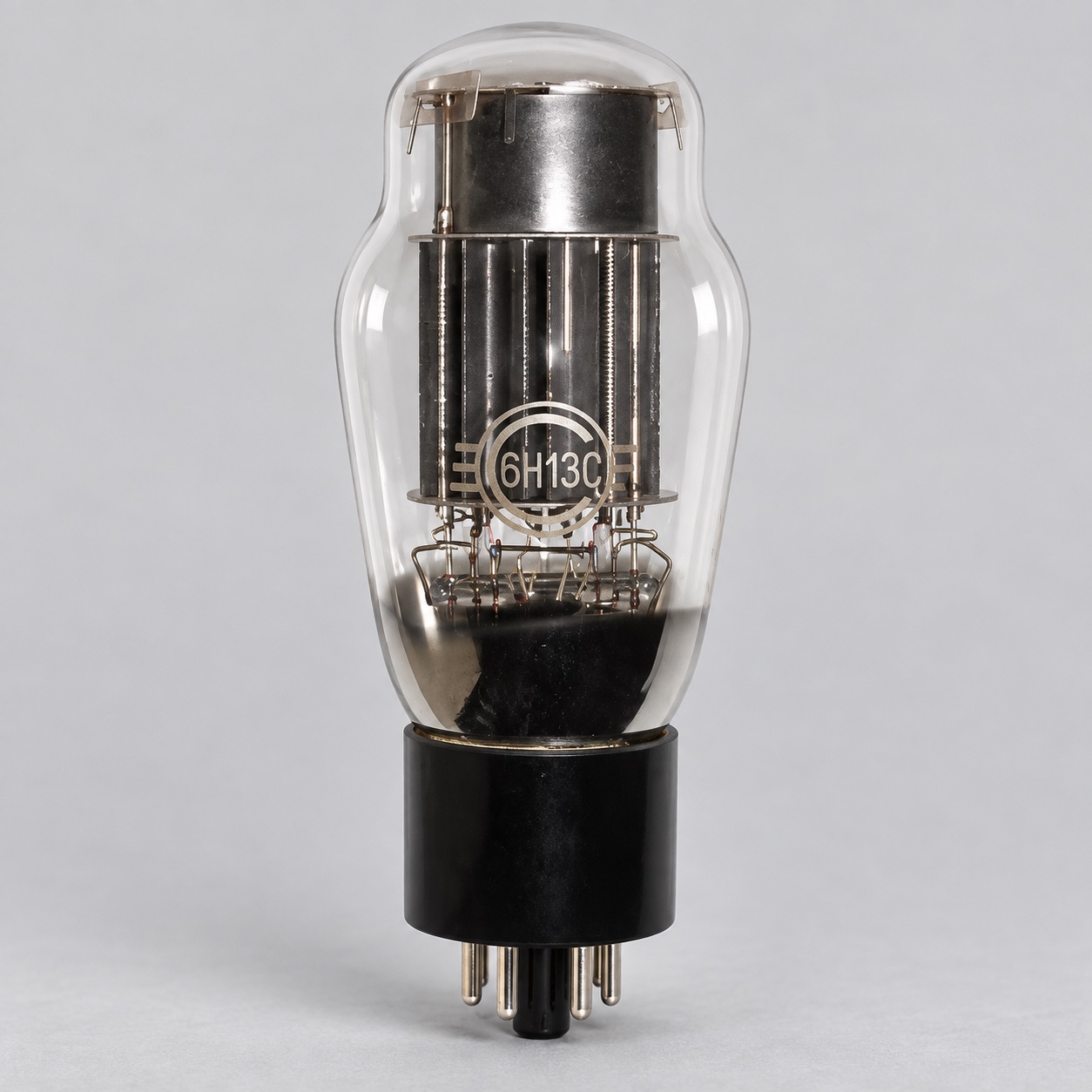

Both triodes have indirectly heated oxide cathodes and share one large glass envelope with an octal keyed base. At the nominal operating point each section uses a 90 V anode supply and approximately 80 mA anode current. Each anode may dissipate up to 13 W.
Selection and installation
Because the heater draws several amperes, the power transformer and socket wiring must be checked carefully. Selection should be based on the complete 6N13S marking, octal pinout, cooling conditions and the operating point specified by the equipment manufacturer.
The operating principle is described in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N13S
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N13S
- Product type
- Low-resistance dual power triode
- Function
- Voltage regulation; low-frequency power stages
- Systems
- Two triodes with separate cathodes
- Cathode
- Indirectly heated oxide cathode
All specificationsCollapse specifications
- Envelope
- Glass
- Base
- Octal keyed base
- Heater voltage
- 6.3 ± 0.6 V
- Heater current
- 2.5 ± 0.25 A
- Nominal anode voltage
- 90 V
- Maximum anode voltage
- 250 V
- Nominal anode current, each triode
- 80 ± 32 mA
- Maximum cathode current, each triode
- 130 mA
- Grid voltage
- −30 V
- Maximum anode dissipation, each triode
- 13 W
- Transconductance, each triode
- 5.5 ± 1.6 mA/V
- Internal resistance, each triode
- 460 Ω
- Minimum service life
- 500 h
