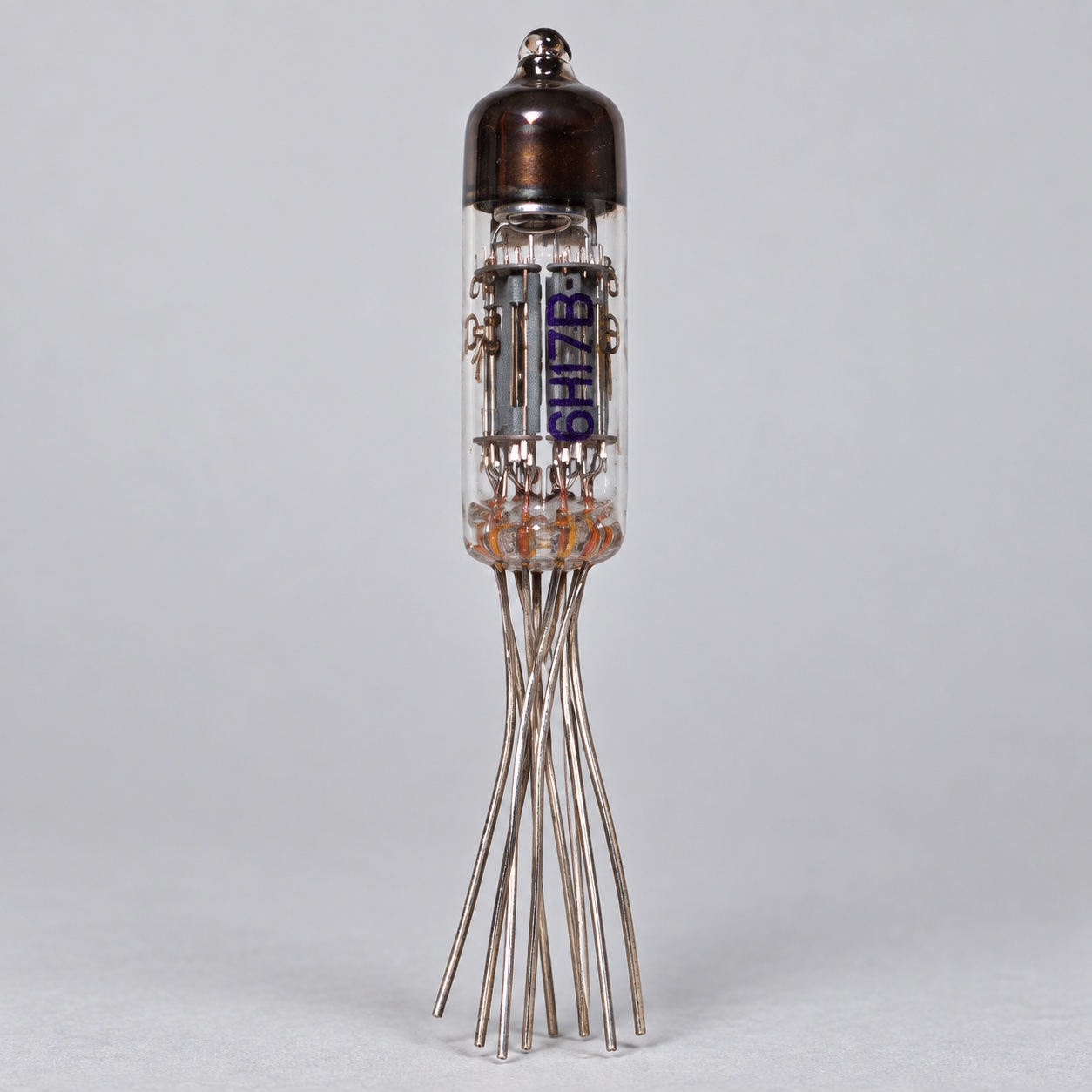

6N17B-V
Subminiature double triode
Description
Purpose of 6N17B-V
The 6N17B-V is a subminiature double triode with two independent electrode systems in one glass envelope. It is intended for voltage amplification in compact radio-electronic equipment where low mass, small dimensions and resistance to mechanical loads are required.
Full descriptionCollapse description
Construction and execution
The tube uses flexible wire leads instead of a conventional plug-in base. Its two triode sections have separate cathodes. The “-V” suffix identifies a version with increased reliability and mechanical strength, so this suffix must be retained when selecting a replacement.
Selection and installation
Installation requires the exact lead diagram from the equipment documentation. The leads must not be bent directly at the glass seal, and the electrical limits of both triode sections must be checked before substitution.
The operating principle is described in the triode reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6N17B-V
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6N17B-V
- Product type
- Subminiature double triode
- Function
- Voltage amplification
- Systems
- Two triodes with separate cathodes
- Envelope
- Subminiature glass envelope
All specificationsCollapse specifications
- Connections
- Flexible wire leads
- Heater voltage
- 6.3 V
- Heater current
- 0.4 A
- Nominal anode voltage
- 200 V
- Nominal anode current, each triode
- 3.4 mA
- Maximum diameter
- 10.2 mm
- Maximum length
- 36 mm
- Execution suffix
- -V: increased reliability and mechanical strength
