6E1P

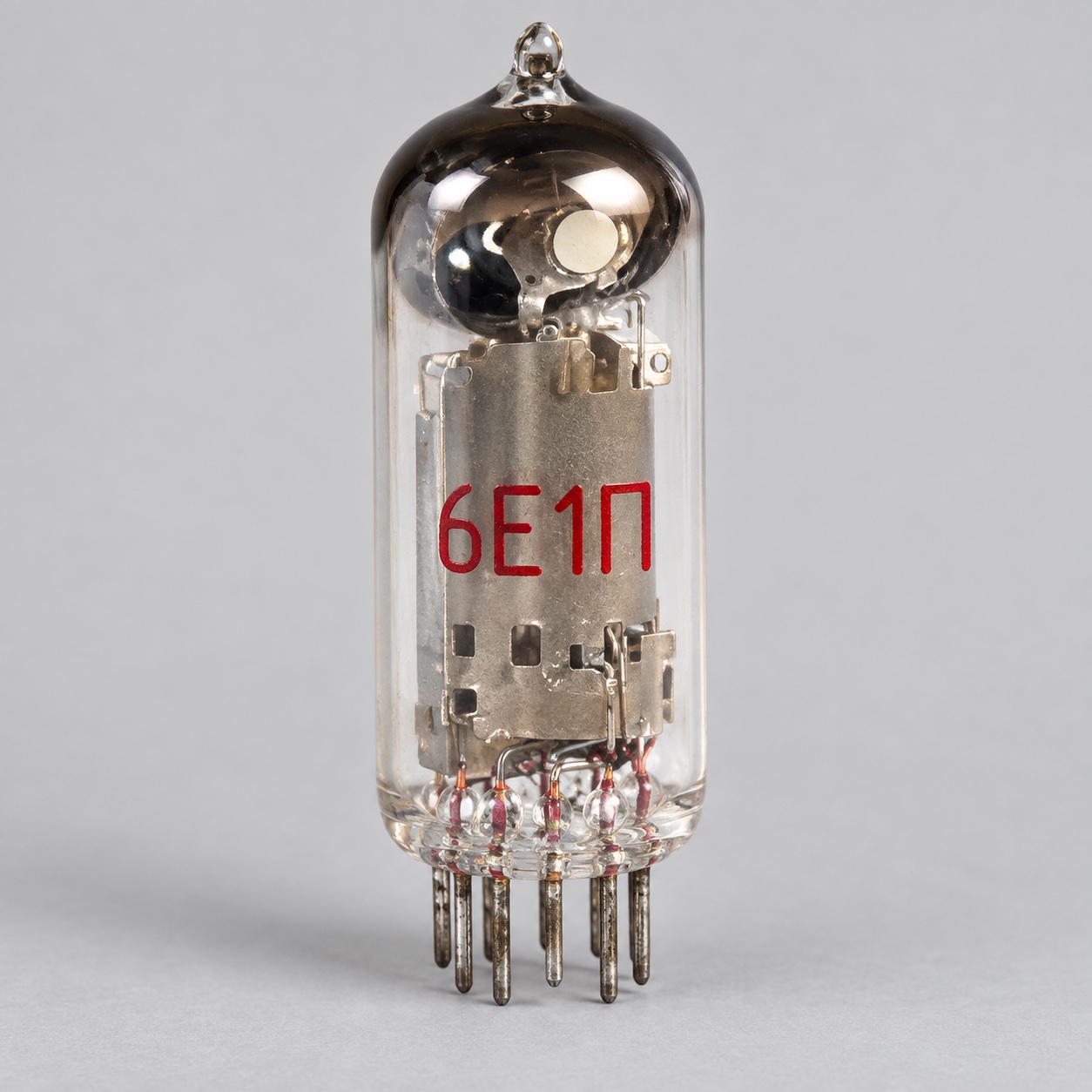

Electronic light tuning indicator
Description
Purpose of 6E1P
The 6E1P is an electronic light indicator used for visual tuning of AM superheterodyne receivers and for displaying recording level in tape recorders. It can also indicate signal level in transmitters and measuring equipment. The phosphor target emits green light, making changes in the applied control voltage visible without a separate meter.
Full descriptionCollapse description
Construction and indication
The tube has an indirectly heated oxide cathode and a miniature glass envelope with a nine-pin button base. It may operate in any position. Unlike the end-view display of the earlier 6E5S, the 6E1P target is viewed from the side; the two types therefore require different sockets and circuit conditions and should not be treated as direct drop-in substitutes.
Selection and installation
Check the complete 6E1P marking, nine-pin connection, heater supply and target-anode circuit before installation. Reference equivalents such as EM80 or 6BR5 still require verification against the original equipment documentation.
The operating principle is described in the magic eye tube reference. Other types are listed in our receiving and amplifying tube category.
Ordering 6E1P
Minimum order: 200 pieces. State the complete designation and host equipment in the enquiry.
Technical details
- Designation
- 6E1P
- Product type
- Electronic light tuning indicator
- Purpose
- Visual tuning and signal-level indication
- Display colour
- Green
- Cathode
- Indirectly heated oxide cathode
All specificationsCollapse specifications
- Envelope
- Miniature glass envelope
- Base
- Nine-pin button base
- Heater voltage
- 6.3 ± 0.6 V
- Heater current
- 300 ± 25 mA
- Nominal anode voltage
- 100 V
- Maximum anode voltage
- 250 V
- Anode current
- 2 ± 1.5 mA
- Target anode voltage
- 150–250 V; nominal 250 V
- Maximum target anode current
- 4 mA
- Control-grid voltage
- −2 V
- Minimum transconductance
- 0.5 mA/V
- Amplification factor
- 24 ± 10
- Maximum mass
- 20 g
- Minimum service life
- 500 h
- Operating position
- Any
