6D24N
High-frequency detector diode
Description
Purpose of 6D24N
The 6D24N is a miniature high-frequency vacuum diode used for accurate detection of RF and microwave voltage. It is designed for measurement input detectors and coaxial transitions in electronic voltmeters, where low capacitance and stable rectification at high frequency are important.
Full descriptionCollapse description
Construction and features

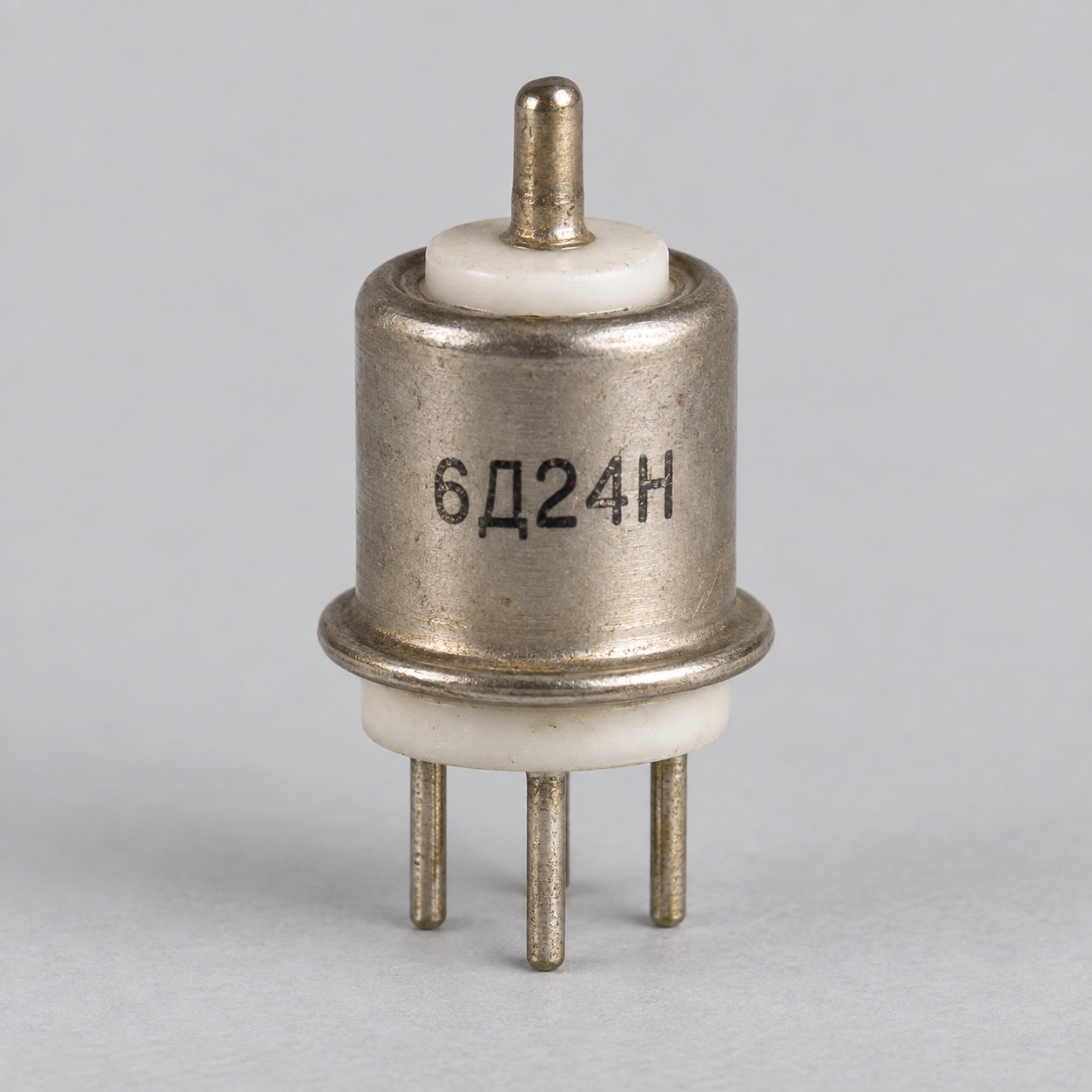

Unlike glass receiving valves, the 6D24N has a compact metal-ceramic body with rigid leads. Its maximum resonant wavelength is 5 cm. The anode-to-cathode capacitance is no more than 0.8 pF, while the cathode-to-heater capacitance is no more than 3 pF. The small body is approximately 10.1 mm in diameter and 15.1 mm high.
Selection and installation
The diode is selected by its complete designation and connection geometry. Before installation, verify the heater supply, detector circuit and mechanical arrangement against the measuring instrument documentation; a similar miniature package does not establish electrical compatibility.
The operating principle is outlined in the vacuum tube reference article. Other available types are listed in our receiving and amplifier tube category.
Ordering 6D24N
Minimum order: 200 pieces. When requesting a quotation, specify the complete designation and, where possible, the equipment in which the device will be installed.
More components are available in the receiving and amplifying tube category.
Technical details
- Designation
- 6D24N
- Product type
- High-frequency detector diode
- Device type
- High-frequency vacuum detector diode
- Construction
- Metal-ceramic body with rigid leads
- Heater voltage
- 6.0–6.6 V
All specificationsCollapse specifications
- Heater current
- 100 ± 20 mA
- Minimum anode current
- 0.2 mA
- Maximum reverse current
- 0.1 µA
- Minimum input resistance
- 100 kΩ
- Maximum resonant wavelength
- 5 cm
- Maximum anode-cathode capacitance
- 0.8 pF
- Maximum cathode-heater capacitance
- 3 pF
- Maximum reverse voltage
- 1000 V
- Maximum cathode-heater voltage
- 50 V
- Cathode current
- 0.7 mA
- Approximate diameter
- 10.1 mm
- Approximate height
- 15.1 mm
- Mass
- 2.5 g
- Minimum service life
- 1500 h
