5Ts4S
Dual-anode vacuum rectifier
Description
Purpose of 5Ts4S
The 5Ts4S is a dual-anode vacuum rectifier for full-wave conversion of alternating current in transformer power supplies. It is designed for industrial-frequency circuits and may also be used at frequencies up to 400 Hz when the limits specified for the equipment are observed.
Full descriptionCollapse description
Construction and features

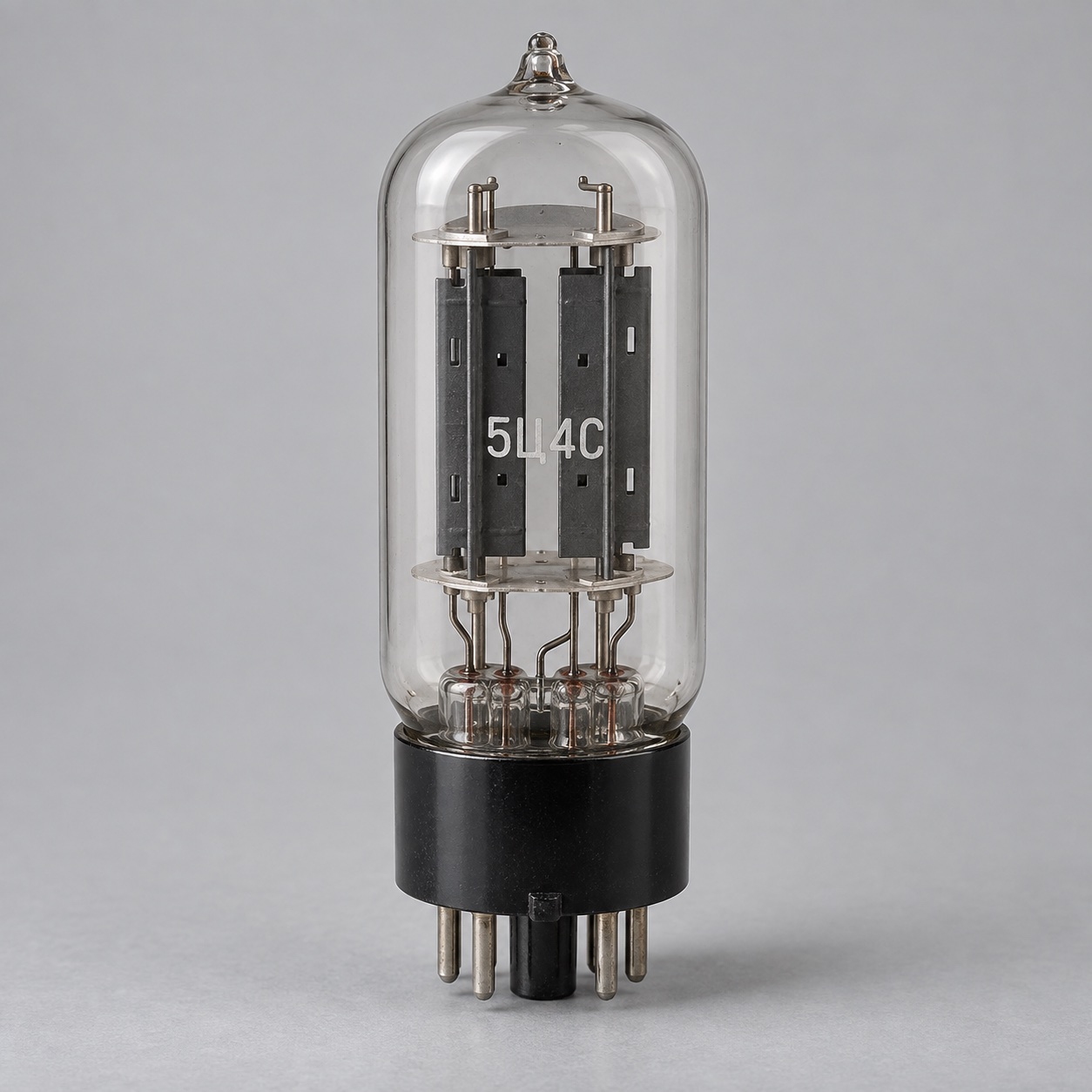

The glass envelope contains two anode systems and an indirectly heated oxide cathode. An octal keyed base fixes the installation position: pins 2 and 8 are connected to the heater, pin 4 to the first anode and pin 6 to the second anode; the cathode is connected to pin 8. The valve may operate in any physical position.
Selection and installation
When replacing a rectifier, compare the complete 5Ts4S marking, base connections, heater supply and the current demanded by the power supply. The maximum average rectified current is 125 mA, so a visually similar valve should not be installed without checking the circuit.
The operating principle is outlined in the vacuum tube reference article. Other available types are listed in our receiving and amplifier tube category.
Ordering 5Ts4S
Minimum order: 200 pieces. When requesting a quotation, specify the complete designation and, where possible, the equipment in which the device will be installed.
More components are available in the receiving and amplifying tube category.
Technical details
- Designation
- 5Ts4S
- Product type
- Dual-anode vacuum rectifier
- Tube function
- Full-wave rectification
- Frequency range
- Industrial frequency; up to 400 Hz
- Cathode
- Indirectly heated oxide cathode
All specificationsCollapse specifications
- Maximum average rectified current
- 125 mA
- Maximum peak anode current
- 375 mA
- Base
- Octal keyed base
- Pin 2
- Heater
- Pin 4
- Anode 1
- Pin 6
- Anode 2
- Pin 8
- Heater and cathode
- Operating position
- Any
- Minimum service life
- 500 h
