GS-36B

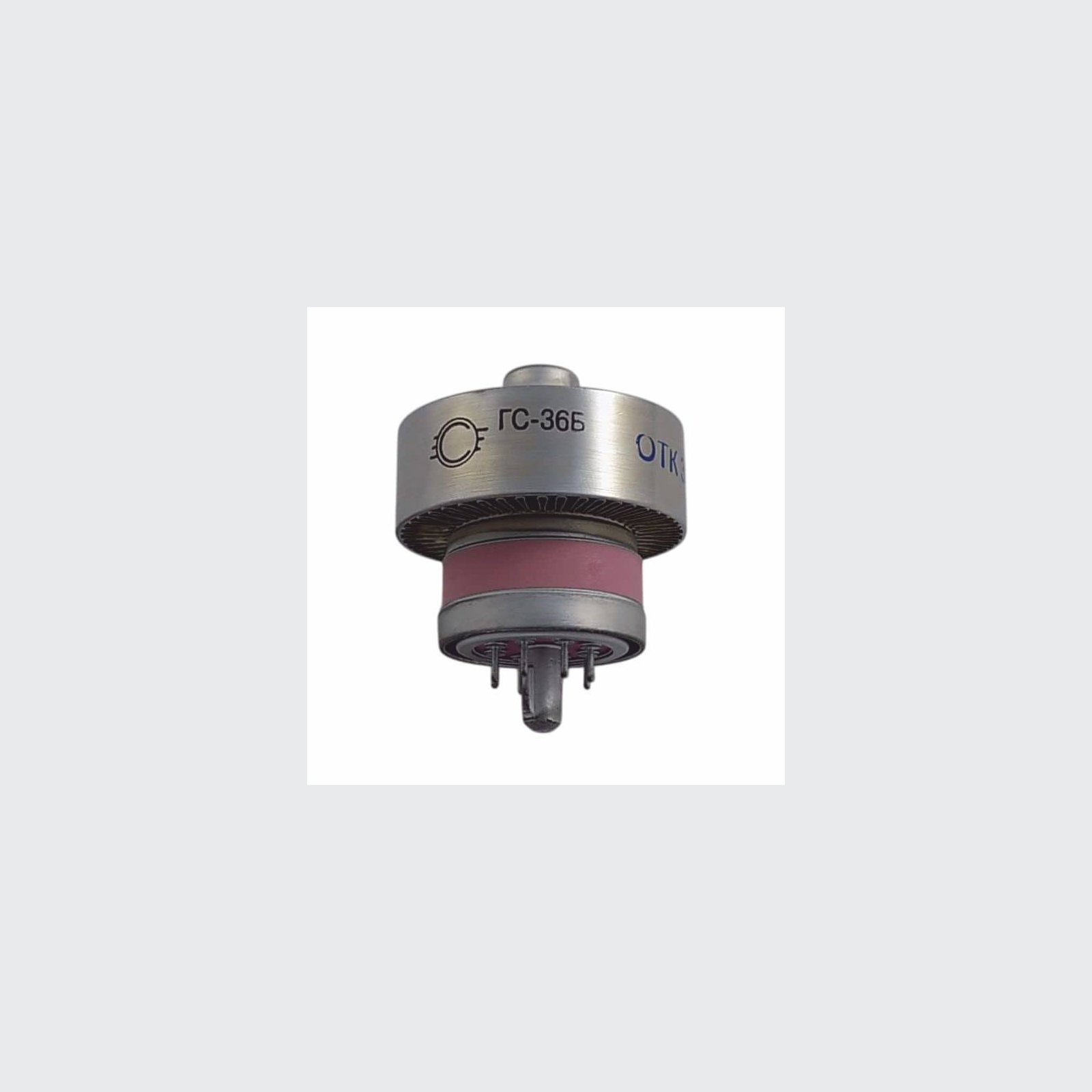

Metal-ceramic generator tetrode
Description
Purpose and application
GS-36B is a metal-ceramic generator tetrode for RF generation and power amplification in metre and decimetre wavelength ranges at frequencies up to 500 MHz.
Full descriptionCollapse description
Construction and cooling
The tube is designed for forced-air cooling. Its compact metal-ceramic construction has distinct electrode contacts; the exact contact arrangement and mounting dimensions must be compared with the equipment documentation.
Operating data
Heater voltage is 6–6.6 V and heater current is 2.95–3.35 A. Input capacitance is 18–30 pF, output capacitance 5–9 pF and transfer capacitance no more than 0.08 pF.
Selection and installation
Maximum continuous anode voltage is 2.1 kV, instantaneous anode voltage 4 kV and anode dissipation 400 W. Cooling must remain active throughout operation.
General operating principles are described in the vacuum tube article. Related products are listed under generator and modulator tubes.
Technical details
- Designation
- GS-36B
- Device type
- Metal-ceramic generator tetrode
- Frequency range
- Up to 500 MHz
- Heater voltage
- 6–6.6 V
- Heater current
- 2.95–3.35 A
All specificationsCollapse specifications
- Input capacitance
- 18–30 pF
- Output capacitance
- 5–9 pF
- Maximum transfer capacitance
- 0.08 pF
- Maximum continuous anode voltage
- 2.1 kV
- Maximum instantaneous anode voltage
- 4 kV
- Maximum second-grid voltage
- 325 V
- Maximum negative first-grid voltage
- 60 V
- Maximum anode dissipation
- 400 W
- Maximum second-grid dissipation
- 8 W
- Maximum first-grid dissipation
- 0.2 W
- Cooling
- Forced air
- Mass
- Approximately 163 g
- Technical specification
- OD0.331.015 TU
