GS-30
Microwave generator triode
Description
Purpose and application
GS-30 is a titanium-ceramic generator triode for generating and amplifying centimetre-range oscillations in grounded-grid circuits. It is used in specialised RF equipment and is selected by the exact designation and operating frequency.
Full descriptionCollapse description
Construction and cooling

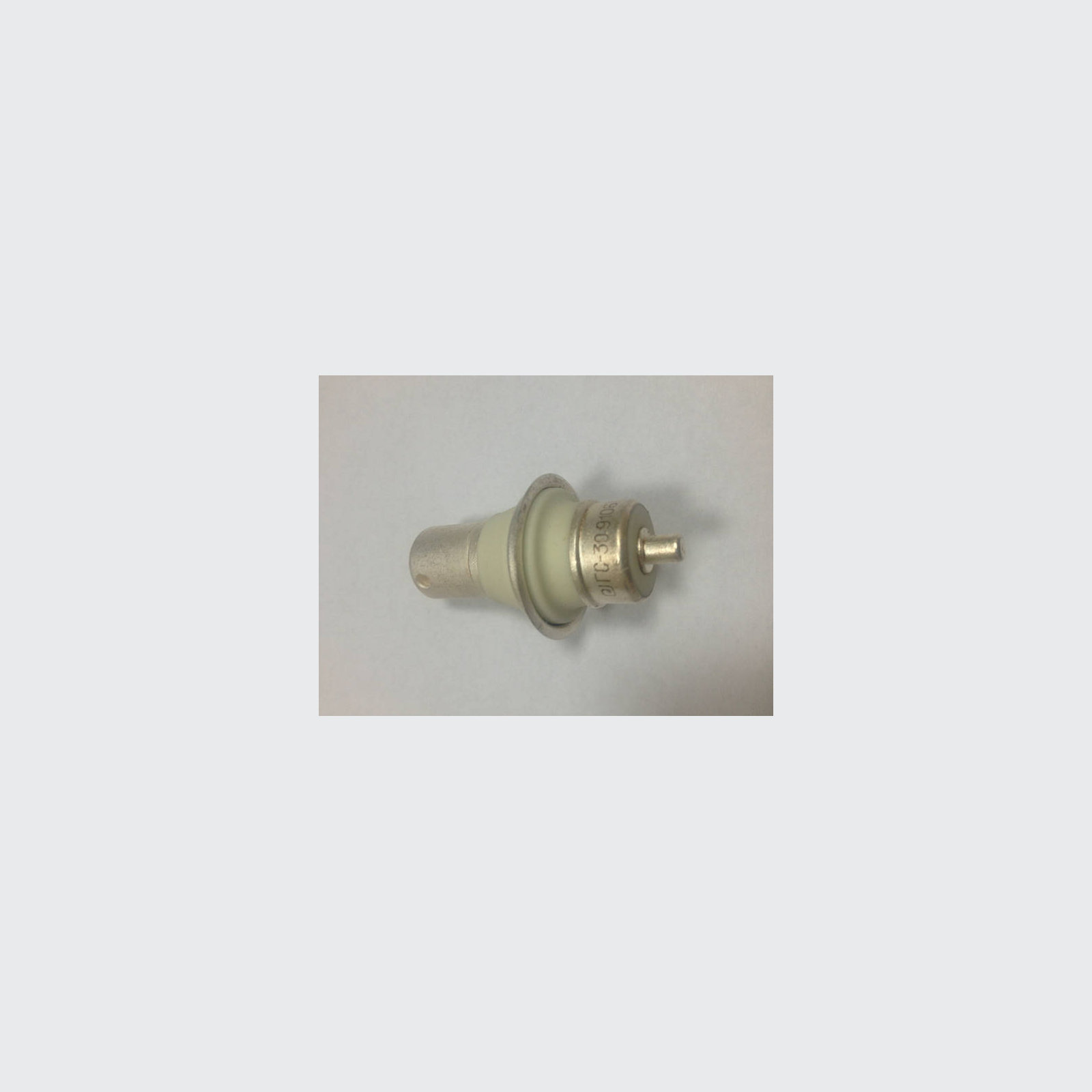

The compact tube has cylindrical electrode terminals and weighs approximately 30 g. Nominal heater voltage is 6.3 V, heater current is 1 ± 0.2 A, and readiness time is no more than 60 seconds.
Operating data
At a 30 cm wavelength, continuous-wave oscillation power is at least 20 W. The published operating frequency range is 400–1500 MHz; transconductance is at least 20 mA/V.
Selection and installation
The maximum anode voltage is 550 V, anode dissipation 40 W and grid dissipation 0.8 W. Before installation, compare the cylindrical contacts, ceramic condition and circuit mode with the equipment documentation.
General operating principles are described in the vacuum tube article. Related products are listed under generator and modulator tubes.
Technical details
- Designation
- GS-30
- Device type
- Titanium-ceramic generator triode
- Circuit
- Grounded grid
- Frequency range
- 400–1500 MHz
- Nominal heater voltage
- 6.3 V
All specificationsCollapse specifications
- Heater current
- 1 ± 0.2 A
- Readiness time
- ≤ 60 s
- Transconductance
- ≥ 20 mA/V
- CW output at 30 cm wavelength
- ≥ 20 W
- Input capacitance
- 11 ± 2 pF
- Output capacitance
- ≤ 0.05 pF
- Transfer capacitance
- 2.8 (+0.4/−0.3) pF
- Maximum anode voltage
- 550 V
- Maximum anode dissipation
- 40 W
- Maximum grid dissipation
- 0.8 W
- Mass
- Approximately 30 g
- Minimum service life
- 1000 h
- Technical specification
- ST3.323.075 TU
