GMI-26B
Pulse modulator tetrode
Description
Purpose and application
GMI-26B is a pulse modulator tetrode designed for high-current switching in pulse modulator stages. Its operating class combines a compact electrode system with a finned external radiator for removing heat during repeated pulse operation.
Full descriptionCollapse description
Construction

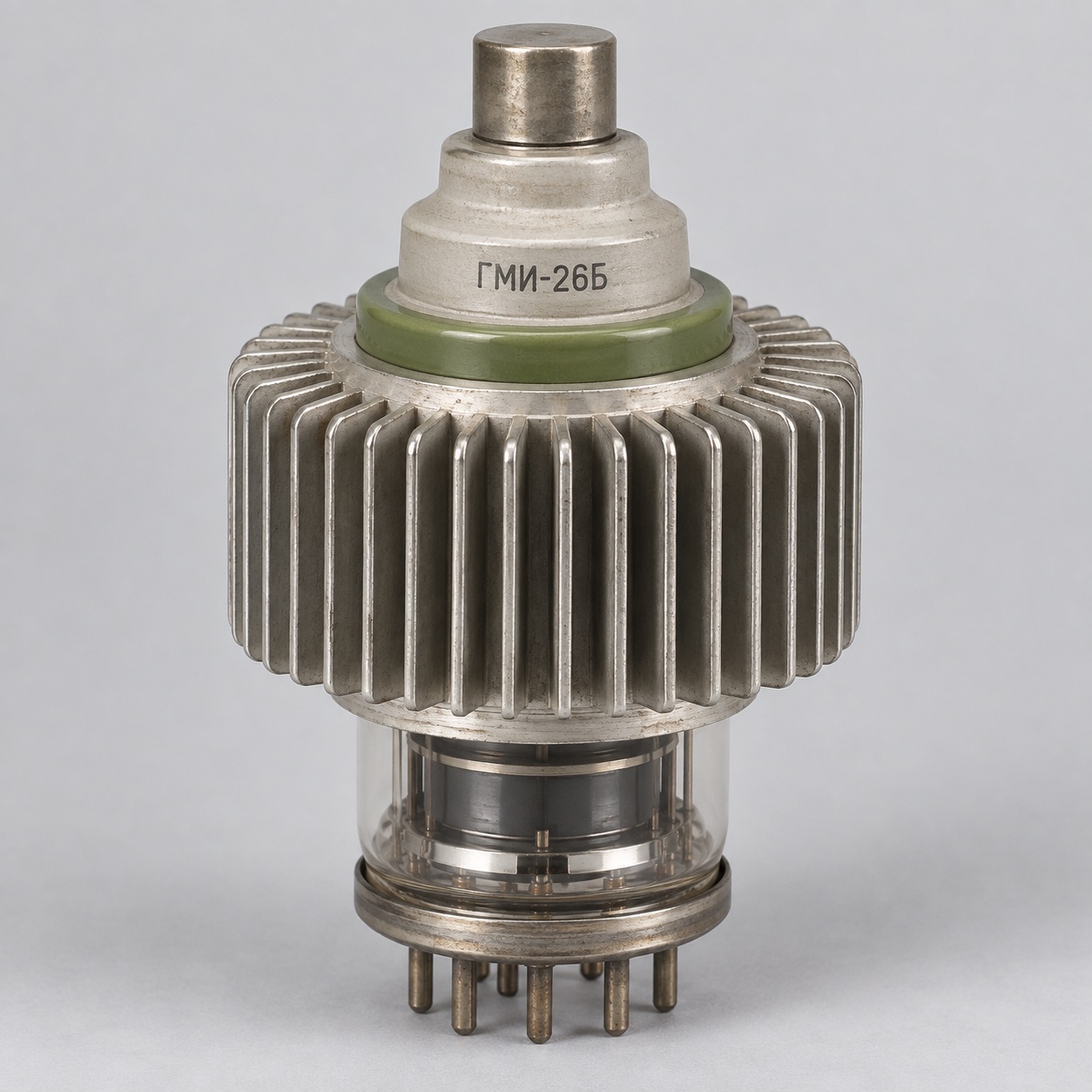

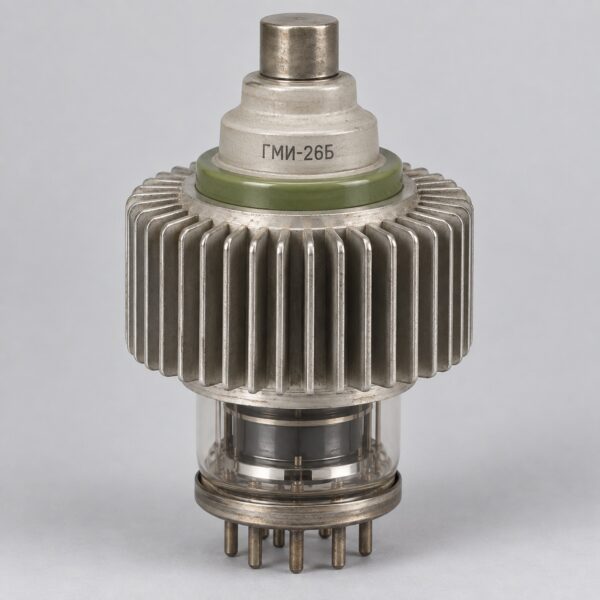

The metal-glass and ceramic construction has an external anode radiator and a top electrode contact. Heater voltage is 12–13.8 V and heater current is 6.25 ± 0.5 A. The orientation and cooling duct must match the original installation.
Operating data
The pulse anode current is at least 20 A and remains at least 18 A at a heater voltage of 12 V. Input capacitance is 70 ± 10 pF, output capacitance 13 ± 3 pF, and transfer capacitance no more than 1 pF. Readiness time is no more than three minutes.
Cooling and selection
Forced-air cooling is used for the finned radiator. Maximum envelope temperature is 150 °C, operating ambient range is −60 to +85 °C, mass is approximately 650 g, and minimum service life is 1000 hours. Check the radiator, ceramic rings and terminals before installation.
Vacuum device construction is outlined in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GMI-26B
- Device type
- Pulse modulator tetrode
- Purpose
- High-current pulse switching
- Construction
- Metal-glass and ceramic with finned radiator
- Cooling
- Forced air
All specificationsCollapse specifications
- Heater voltage
- 12–13.8 V
- Heater current
- 6.25 ± 0.5 A
- Minimum pulse anode current
- 20 A
- Pulse anode current at 12 V heater voltage
- 18 A
- Maximum pulse screen-grid current
- 2 A
- Maximum readiness time
- 3 min
- Input capacitance
- 70 ± 10 pF
- Output capacitance
- 13 ± 3 pF
- Maximum transfer capacitance
- 1 pF
- Maximum envelope temperature
- 150 °C
- Ambient temperature
- −60 to +85 °C
- Mass
- Approximately 650 g
- Minimum service life
- 1000 h
