GM-4B
High-power regulating tetrode
Description
Purpose and application
GM-4B is a high-power regulating tetrode used as the control tube in high-voltage electronic voltage stabilisers. Its function differs from an RF generator tube: it controls current in powerful regulated supply circuits.
Full descriptionCollapse description
Construction

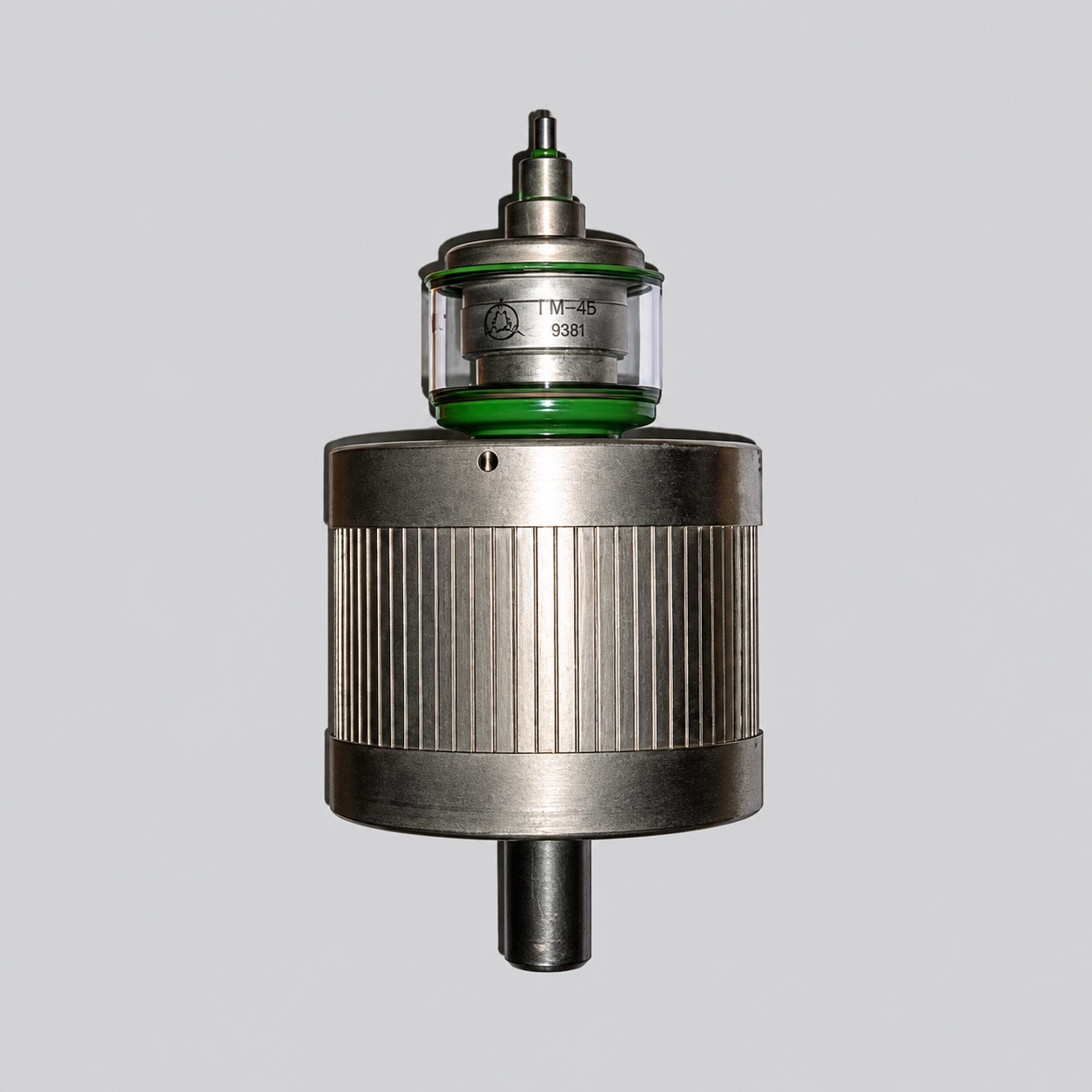

The metal-glass tube uses a directly heated thoriated, carburised tungsten cathode and a large finned radiator. Heater voltage is 4.8–5.2 V, operating current is 39 ± 4 A and starting current may reach 60 A.
Operating data
Reference limits include anode voltage up to 9 kV, second-grid voltage up to 1.2 kV, anode dissipation up to 9 kW, second-grid dissipation up to 80 W and first-grid dissipation up to 50 W.
Cooling and selection
The radiator requires forced-air cooling. Overall dimensions are no more than 287 × 144 mm, mass no more than 6 kg and minimum service life 3000 h. Verify the full GM-4B designation and the stabiliser circuit before replacement.
The operating principle is covered in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GM-4B
- Device type
- High-power regulating tetrode
- Purpose
- High-voltage electronic voltage stabilisers
- Construction
- Metal-glass with finned radiator
- Cathode
- Directly heated thoriated carburised tungsten
All specificationsCollapse specifications
- Heater voltage
- 4.8–5.2 V
- Heater current
- 39 ± 4 A
- Maximum starting heater current
- 60 A
- Maximum anode voltage
- 9 kV
- Maximum second-grid voltage
- 1.2 kV
- Maximum anode dissipation
- 9 kW
- Maximum second-grid dissipation
- 80 W
- Maximum first-grid dissipation
- 50 W
- Cooling
- Forced air
- Maximum dimensions
- 287 × 144 mm
- Maximum mass
- 6 kg
- Minimum service life
- 3000 h
