GK-12A
High-power generator triode
Description
Purpose and application

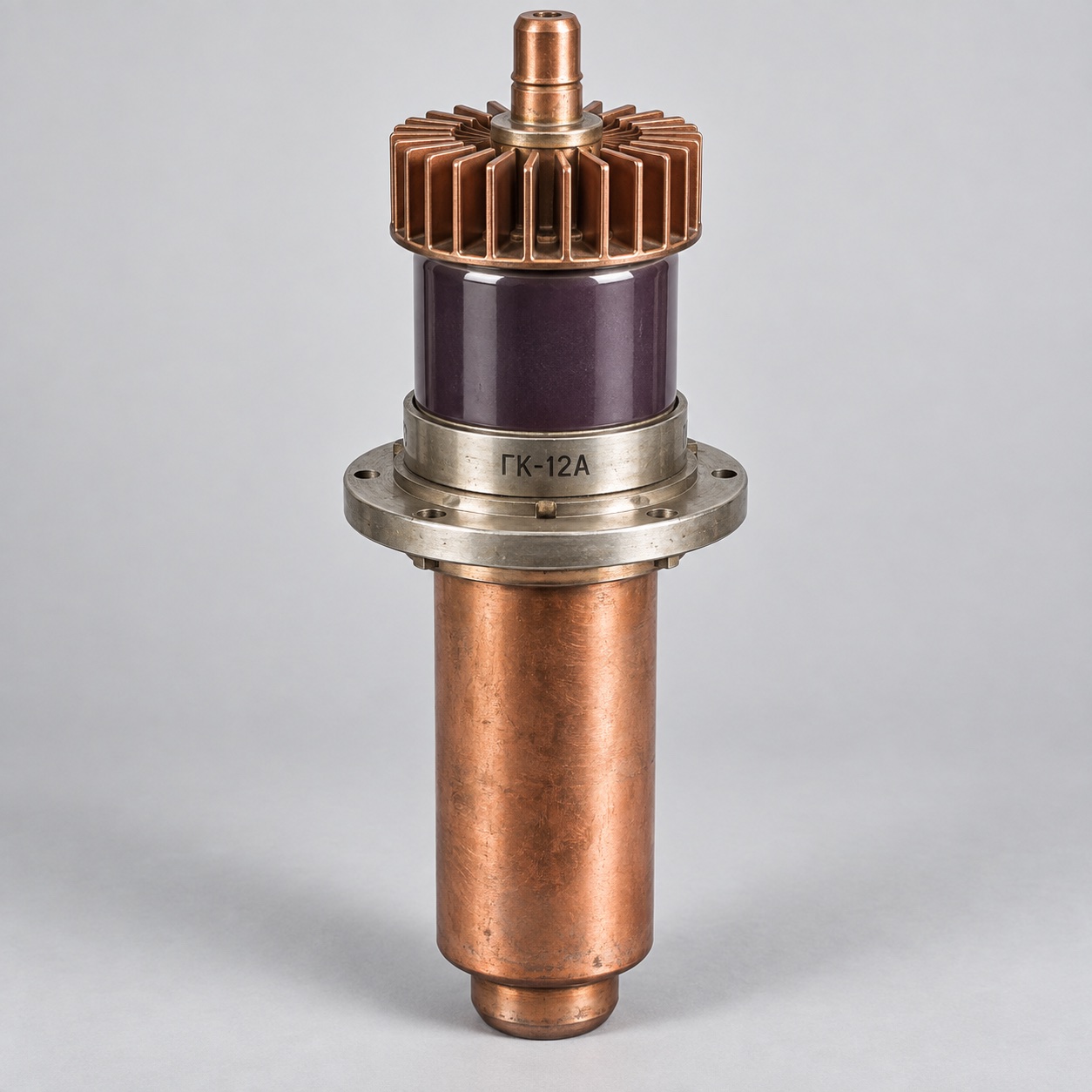

GK-12A is a high-power generator triode with magnetic focusing for generating and amplifying RF power in stationary radio-frequency equipment. It is used primarily in industrial electrothermal installations.
Full descriptionCollapse description
Construction
The ceramic-metal tube has an external copper anode and a directly heated thoriated, carburised tungsten cathode. The anode is water-cooled, while the envelope requires forced-air cooling. The heater is rated at 5.7–6.3 V and 260 ± 25 A.
Operating data
Reference operating limits include a maximum frequency of 30 MHz, anode voltage up to 11 kV, anode dissipation up to 25 kW and grid dissipation up to 500 W. At 1 MHz the specified RF output is at least 60 kW.
Cooling and selection
GK-12A is a large component weighing up to 15 kg and requires its specified water circuit, airflow and magnetic system. Before installation, compare the flange, cooling connections, electrode terminals and specification SB3.314.154 TU.
The operating principle is covered in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GK-12A
- Device type
- Generator triode with magnetic focusing
- Purpose
- RF generation and power amplification
- Application
- Stationary electrothermal RF equipment
- Construction
- Ceramic-metal with external copper anode
All specificationsCollapse specifications
- Cathode
- Directly heated thoriated carburised tungsten
- Heater voltage
- 5.7–6.3 V
- Heater current
- 260 ± 25 A
- Maximum frequency
- 30 MHz
- Minimum RF output at 1 MHz
- 60 kW
- Maximum anode voltage
- 11 kV
- Maximum anode dissipation
- 25 kW
- Maximum grid dissipation
- 500 W
- Cooling
- Water-cooled anode; forced-air envelope
- Maximum mass
- 15 kg
- Ambient temperature
- +5 to +40 °C
- Technical specification
- SB3.314.154 TU
