GI-49B
UHF pulse generator triode
Description
Purpose and operating mode
GI-49B is a metal-ceramic pulse generator triode for generating and amplifying decimetre-wave oscillations. It supports continuous operation and pulse operation with cyclic switching of supply voltages in common-grid circuits.
Full descriptionCollapse description
Construction and cooling

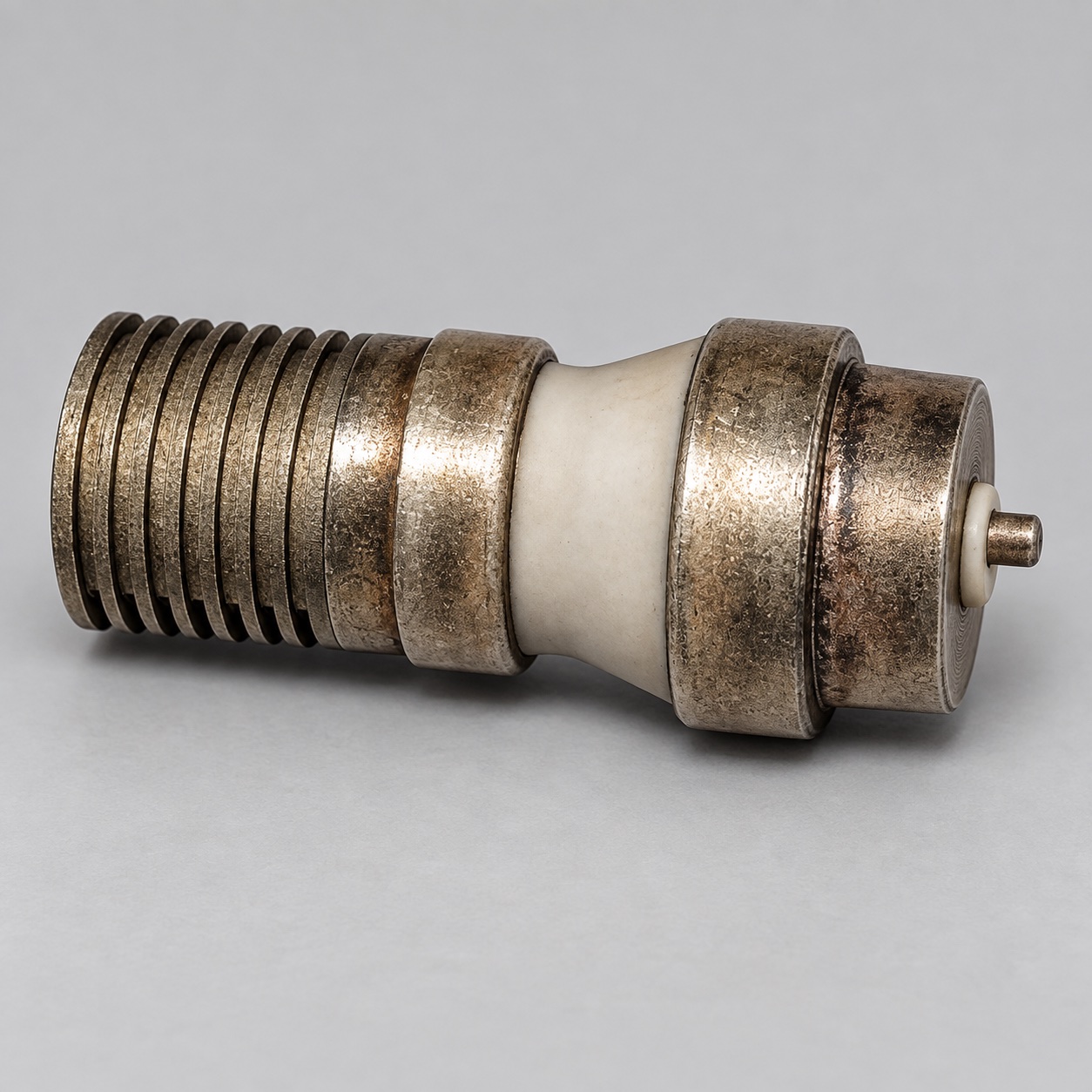

The compact coaxial structure includes a finned anode cooling section and ceramic insulation. Forced-air cooling is required. The heater supply is 12.6 V with a current of 0.94 ± 0.08 A; mass is approximately 150 g.
Key operating data
Continuous useful RF output is at least 75 W. Published limits include an anode voltage of 1 kV in continuous service, up to 4 kV in pulse operation, pulse anode current up to 4 A and an operating wavelength range of 10–75 cm.
Selection and pre-installation checks
Selection requires the exact GI-49B marking, its coaxial contact dimensions and the intended cooling assembly. Before installation, inspect the ceramic waist, metal collars, cooling fins and terminal surfaces.
General operating principles are described in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GI-49B
- Device type
- Pulse generator triode
- Operating range
- Decimetre-wave / UHF
- Operating modes
- Continuous and pulse
- Circuit configuration
- Common-grid
All specificationsCollapse specifications
- Construction
- Metal-ceramic, coaxial
- Heater voltage
- 12.6 V
- Heater current
- 0.94 ± 0.08 A
- Minimum continuous RF output
- 75 W
- Maximum continuous anode voltage
- 1 kV
- Maximum pulse anode voltage
- 4 kV
- Maximum pulse anode current
- 4 A
- Wavelength range
- 10–75 cm
- Cooling
- Forced air
- Mass
- Approximately 150 g
- Minimum service life
- 1000 h
