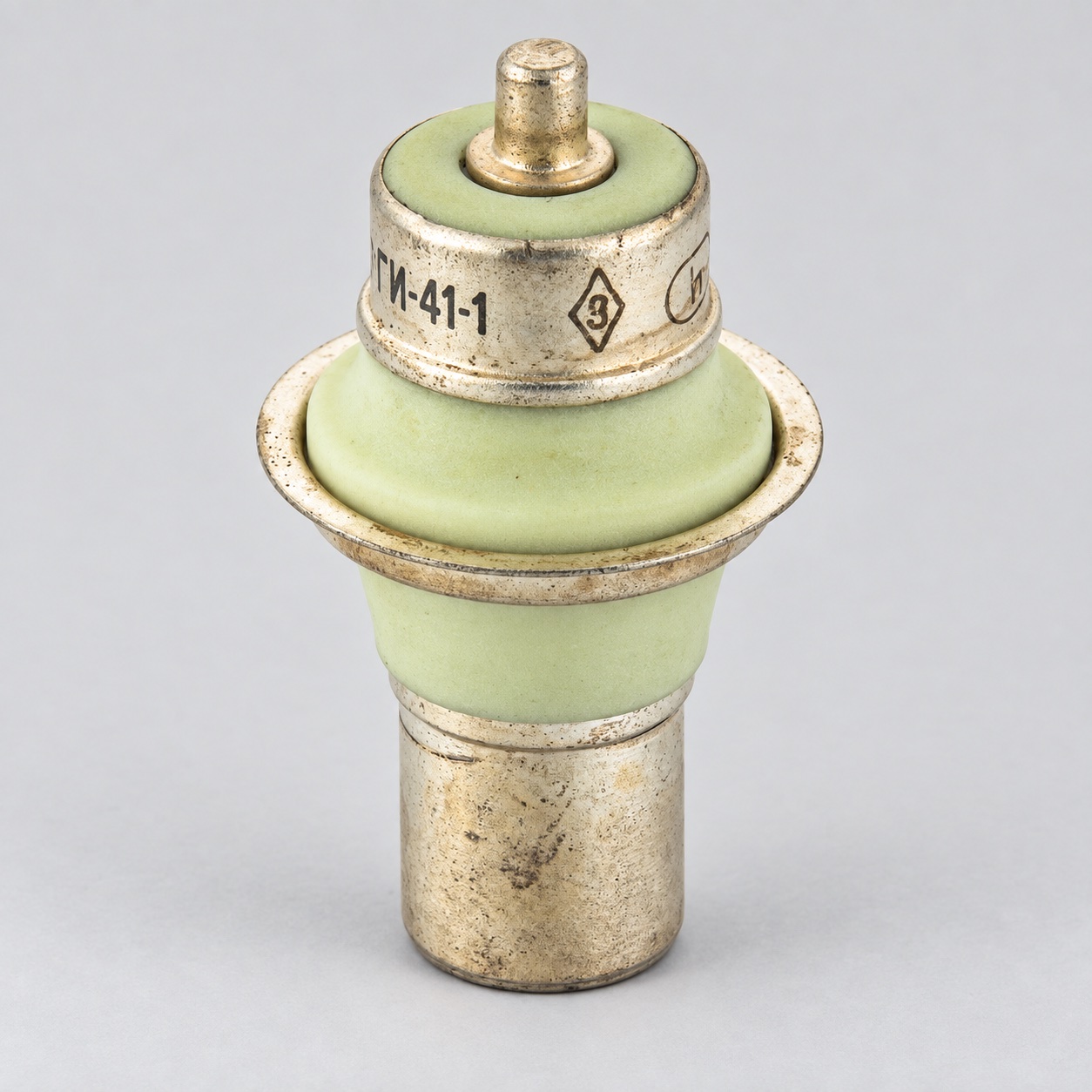

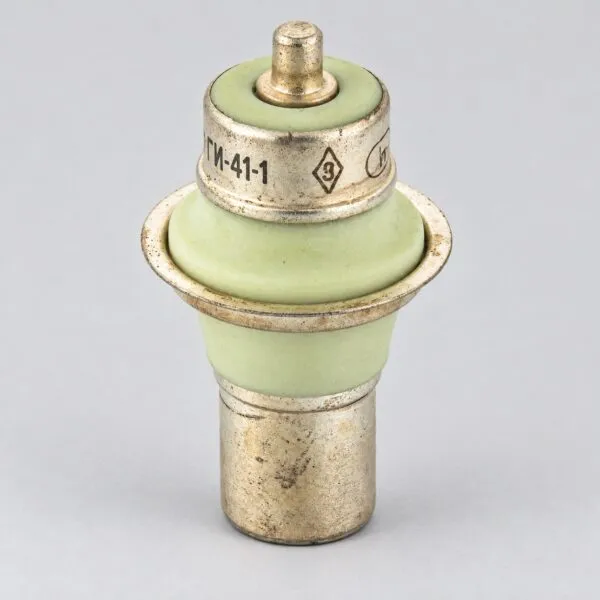

GI-41-1
Pulse generator triode
Description
Purpose and operating mode
GI-41-1 is a compact pulse generator triode for generating and amplifying UHF oscillations in common-grid circuits. Its metal-ceramic construction is intended for pulse operation at frequencies up to 3000 MHz.
Full descriptionCollapse description
Construction and cooling
The tube uses an indirectly heated oxide cathode and natural air cooling. Heater voltage is 6.0–6.6 V and heater current is 1.4 ± 0.1 A. Overall dimensions are approximately 45 × 25.5 mm and mass is about 30 g.
Key operating data
At the specified pulse operating point, useful output is at least 1.8 kW. Pulse anode voltage reaches 3.2 kV, pulse current 2.9 A and pulse duration 1.5 µs at a minimum duty factor of 200. Rated anode dissipation is 40 W.
Selection and pre-installation checks
GI-41-1 is a separate version, not merely another spelling of GI-41. Selection should follow the equipment documentation and include the exact designation, terminal geometry, heater data and pulse ratings.
General operating principles are described in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GI-41-1
- Device type
- Pulse generator triode
- Maximum operating frequency
- 3000 MHz
- Construction
- Metal-ceramic
- Cathode
- Indirectly heated oxide cathode
All specificationsCollapse specifications
- Heater voltage
- 6.0–6.6 V
- Heater current
- 1.4 ± 0.1 A
- Maximum pulse anode voltage
- 3.2 kV
- Maximum pulse anode current
- 2.9 A
- Minimum useful pulse power
- 1.8 kW
- Maximum pulse duration
- 1.5 µs
- Minimum duty factor
- 200
- Maximum anode dissipation
- 40 W
- Cooling
- Natural air
- Dimensions
- Approximately 45 × 25.5 mm
- Mass
- Approximately 30 g
- Minimum service life
- 1500 h
- Technical specification
- ZhT3.323.063 TU
