6LK7I
Projection cathode-ray tube
Description

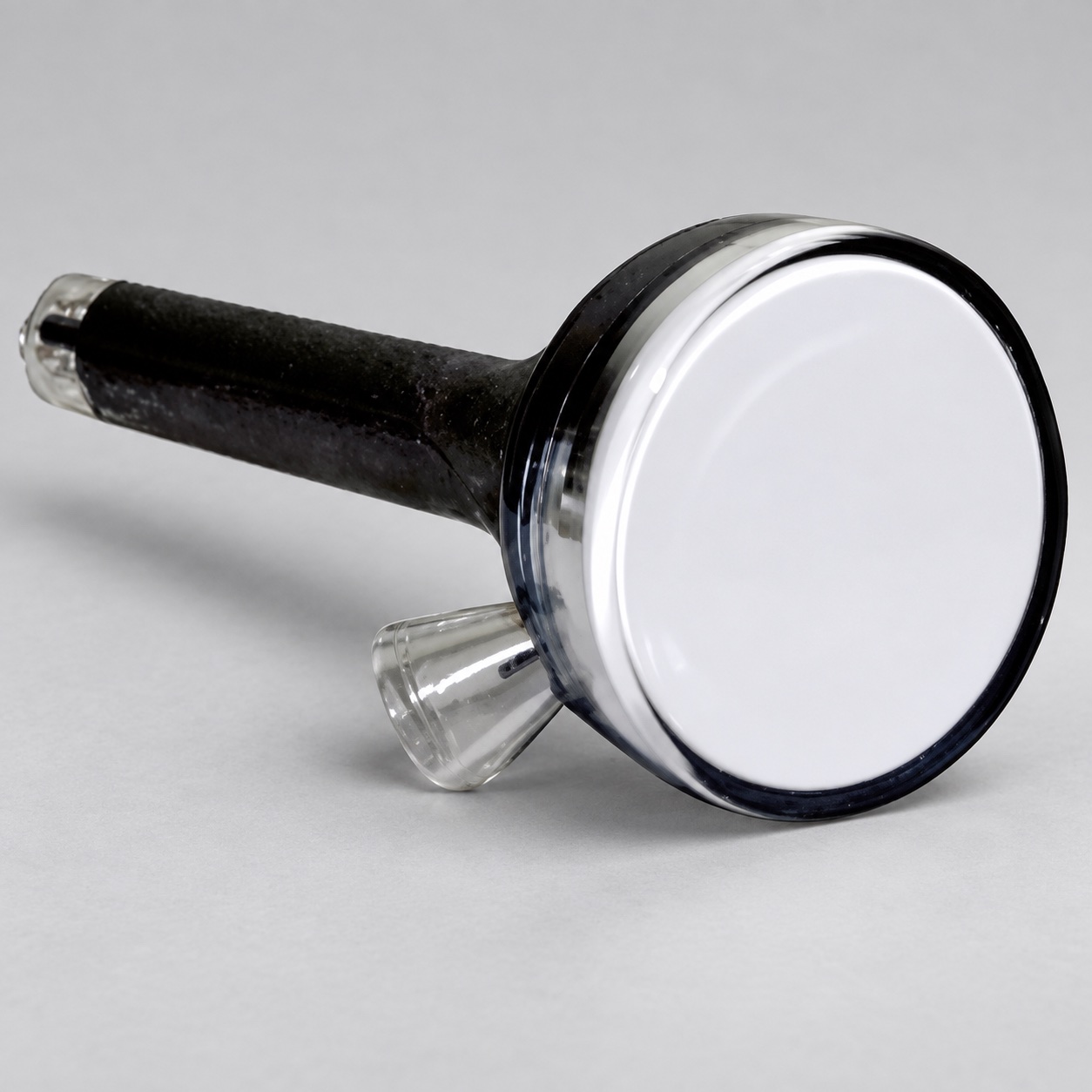

6LK7I is an Projection cathode-ray tube for operation with an optical system in special-purpose television equipment.
Full descriptionCollapse description
6LK7I purpose
The tube converts electrical signals into a visible image on a phosphor screen. Its operating mode is set by the heater, acceleration, focusing and beam-deflection circuits of the host equipment.
Construction and operation
The tube uses electrostatic focusing and electromagnetic deflection. Its green screen is designed for high brightness in a projection optical path. A glass pumping stem allows operation at reduced atmospheric pressure when the corresponding sealed connection is used.
Main characteristics
The key parameters are listed in Technical Details below. Selection requires comparison of the complete designation, screen, electrical ratings, lead arrangement, dimensions and mass of the exact execution.
Selection, installation and testing
A visually similar tube is not an approved substitute without a direct documentary reference. Inspect the screen, neck, leads and sealed joints before installation. Protect the glass envelope from impact and point loading; perform high-voltage tests under the host-equipment procedure.
Ordering 6LK7I
Minimum order: 5 pieces. State the designation, quantity and required documents. Other executions are listed under Cathode-Ray Tubes; the general operating principle is described in the reference article.
Technical details
- Designation
- 6LK7I
- Product type
- Projection CRT
- Screen colour
- Green
- Focusing
- Electrostatic
- Deflection
- Electromagnetic
All specificationsCollapse specifications
- Heater voltage
- 6.3 V
- Heater current
- 0.27–0.33 A
- Second-anode voltage
- 15 kV
- Screen brightness
- At least 6,000 cd/m²
- Line width, centre
- Up to 0.20 mm
- Line width, edge
- Up to 0.22 mm
- Modulation voltage
- Up to 35 V
- Minimum operating life
- 1,000 h
