23LM17V-1
Radar indicator cathode-ray tube
Description

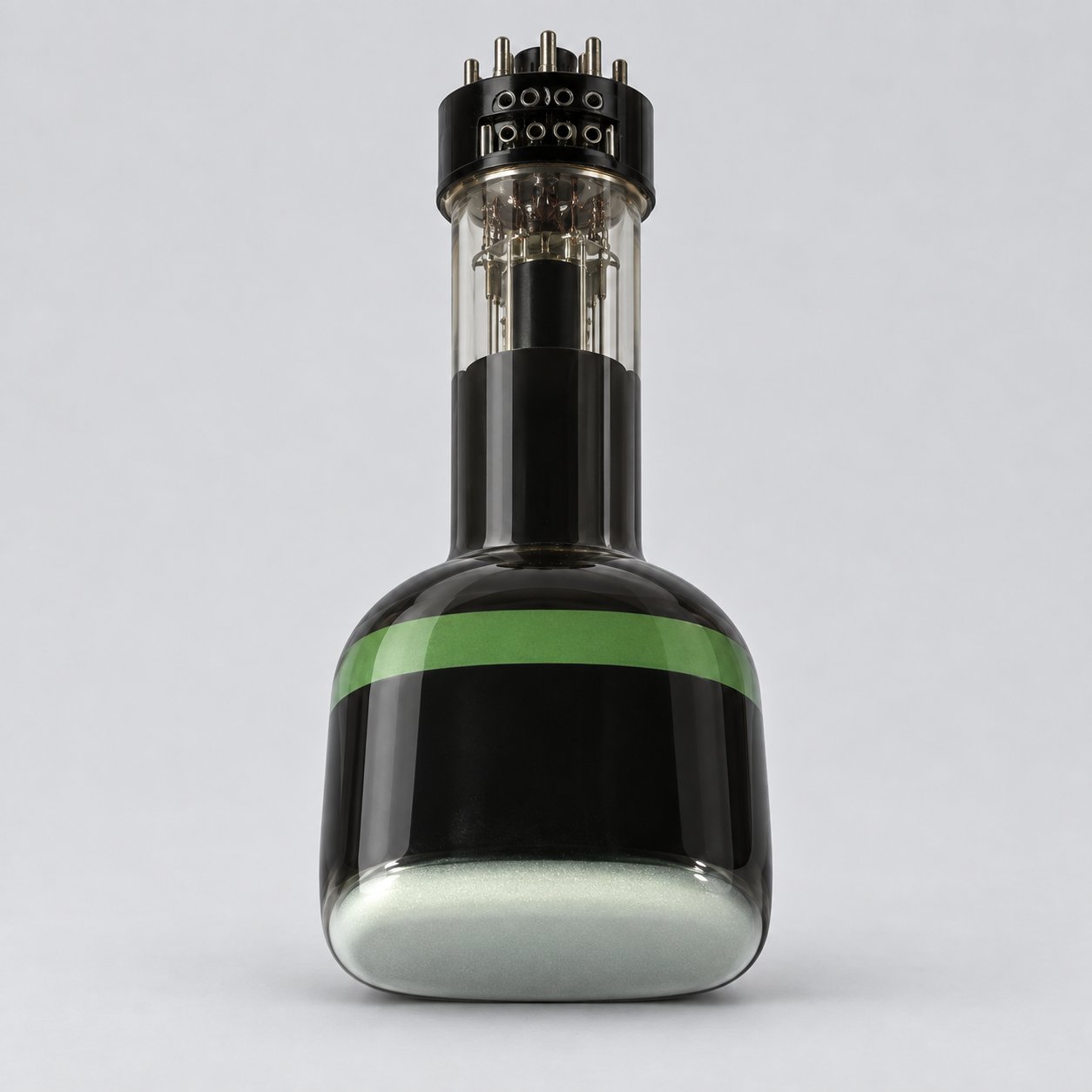

23LM17V-1 is a Radar indicator cathode-ray tube.
Full descriptionCollapse description
23LM17V-1 purpose
The 23LM17V-1 is an indicator cathode-ray tube from the 23LM17V family, developed for observation of radar images with simultaneous photographic recording through an optical window. The -1 suffix identifies a specific execution and must be retained when ordering or selecting a replacement.
Construction and operation
The tube uses electromagnetic focusing and deflection, a blue screen with long afterglow and a 195 mm working diameter. The optical arrangement is intended to preserve the displayed radar trace during photographic recording. Exact execution, markings and connection layout should be checked against the equipment documentation.
Main characteristics
Screen data and electrical operating values are listed in Technical Details below. Selection requires comparison of the complete designation, envelope execution, focusing and deflection methods, voltages and lead arrangement.
Selection, installation and testing
A visually similar tube is not an approved substitute without a direct documentary reference. Inspect the screen, neck, leads and sealed joints before installation. Protect the glass envelope from impact and point loading; connect and test high-voltage circuits under the host-equipment procedure.
Ordering 23LM17V-1
Minimum order: 5 pieces. State the exact designation, quantity and required documents. Other executions are listed under Cathode-Ray Tubes; the operating principle is described in the reference article.
Technical details
- Designation
- 23LM17V-1
- Product type
- Radar indicator cathode-ray tube
- Application
- Radar image observation and photographic recording
- Screen
- Blue, long afterglow
- Working diameter
- 195 mm
All specificationsCollapse specifications
- Focusing
- Electromagnetic
- Deflection
- Electromagnetic
- Heater voltage
- 6.3 V
- Heater current
- 0.27–0.33 A
- Anode voltage
- 15 kV
- Cut-off voltage
- −30…−90 V
- Modulation voltage
- Up to 40 V
- Resolution, centre
- At least 800 lines
- Resolution, corners
- At least 600 lines
- Mass
- Up to 3 kg
