16LO2I

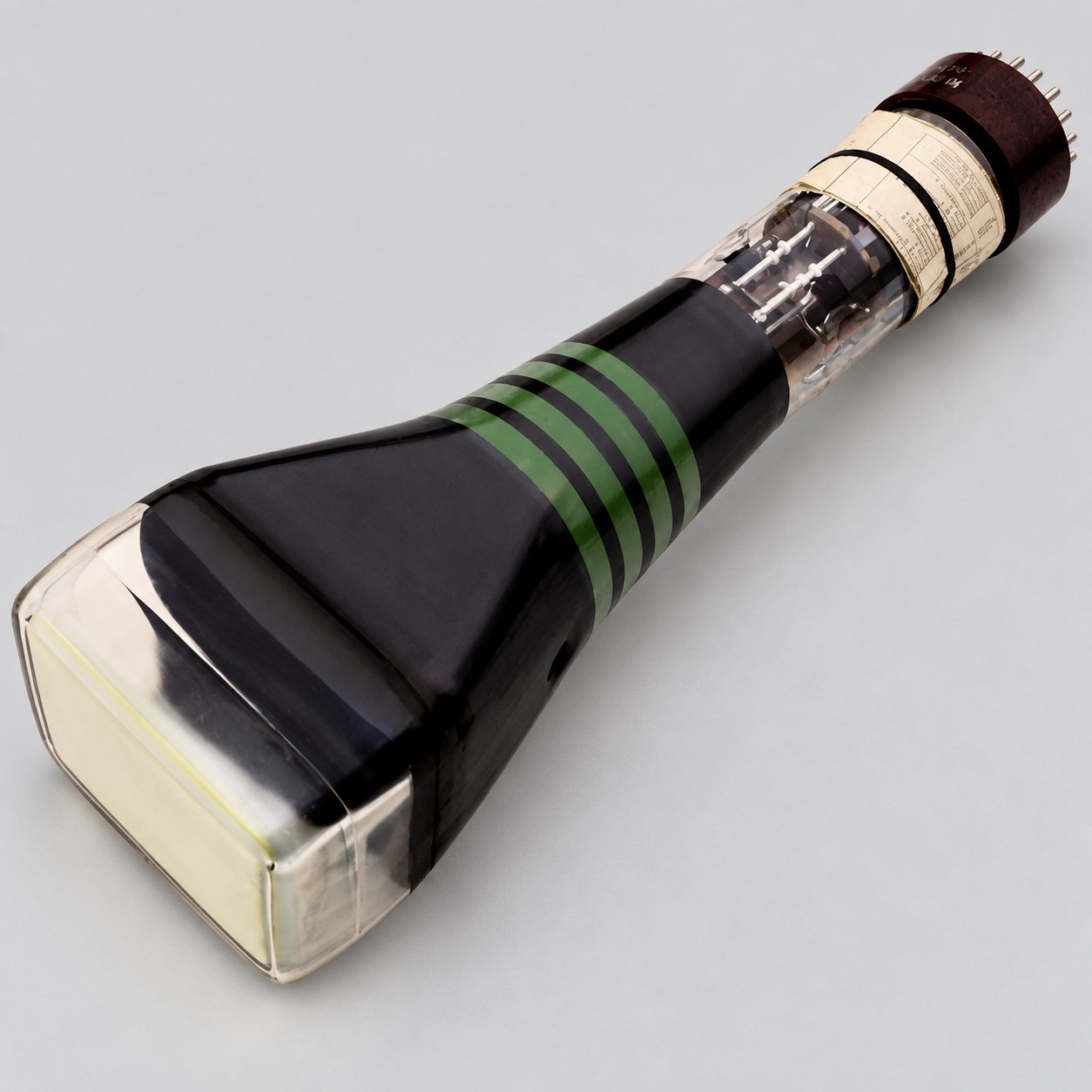

Dual-beam oscilloscope cathode-ray tube
Description
16LO2I is a Dual-beam oscilloscope cathode-ray tube.
Full descriptionCollapse description
16LO2I purpose
The 16LO2I is a dual-beam oscilloscope cathode-ray tube for simultaneous visual observation of two independent electrical processes. Separate electron-optical systems form the two traces, allowing signals to be compared on one flat rectangular screen without electronic beam switching.
Construction and operation
The tube has one post-acceleration stage, blue screen emission with green afterglow and a working area of at least 40 × 100 mm. Electrostatic deflection plates provide separate horizontal and vertical control for both beams. The glass envelope is fitted with a multi-pin base and side electrode connections.
Main characteristics
Screen data and electrical operating values are listed in Technical Details below. Selection requires comparison of the complete designation, envelope execution, focusing and deflection methods, voltages and lead arrangement.
Selection, installation and testing
A visually similar tube is not an approved substitute without a direct documentary reference. Inspect the screen, neck, leads and sealed joints before installation. Protect the glass envelope from impact and point loading; connect and test high-voltage circuits under the host-equipment procedure.
Ordering 16LO2I
Minimum order: 5 pieces. State the exact designation, quantity and required documents. Other executions are listed under Cathode-Ray Tubes; the operating principle is described in the reference article.
Technical details
- Designation
- 16LO2I
- Product type
- Dual-beam oscilloscope cathode-ray tube
- Screen
- Blue with green afterglow
- Working area
- At least 40 × 100 mm
- Beams
- Two, separate electron-optical systems
All specificationsCollapse specifications
- Deflection
- Electrostatic
- Heater voltage
- 6.3 V
- Heater current
- 0.54–0.66 A
- Second anode voltage
- 2 kV
- Third anode voltage
- 3 kV
- Line width, centre
- Up to 0.8 mm
- Line width at 40 mm
- Up to 1.0 mm
- Brightness
- At least 50 cd/m²
- Afterglow time
- Up to 0.1 s
- Service life
- At least 750 h
- Mass
- Up to 1.9 kg
