16LM7I-2

16LM7I-2 purpose

The 16LM7I-2 is an indicator cathode-ray tube designed for television, symbolic and graphic display systems operating under high ambient illumination. The anti-glare screen glass distinguishes the -2 version and improves readability where reflections and external light would otherwise reduce contrast.

Construction and operation

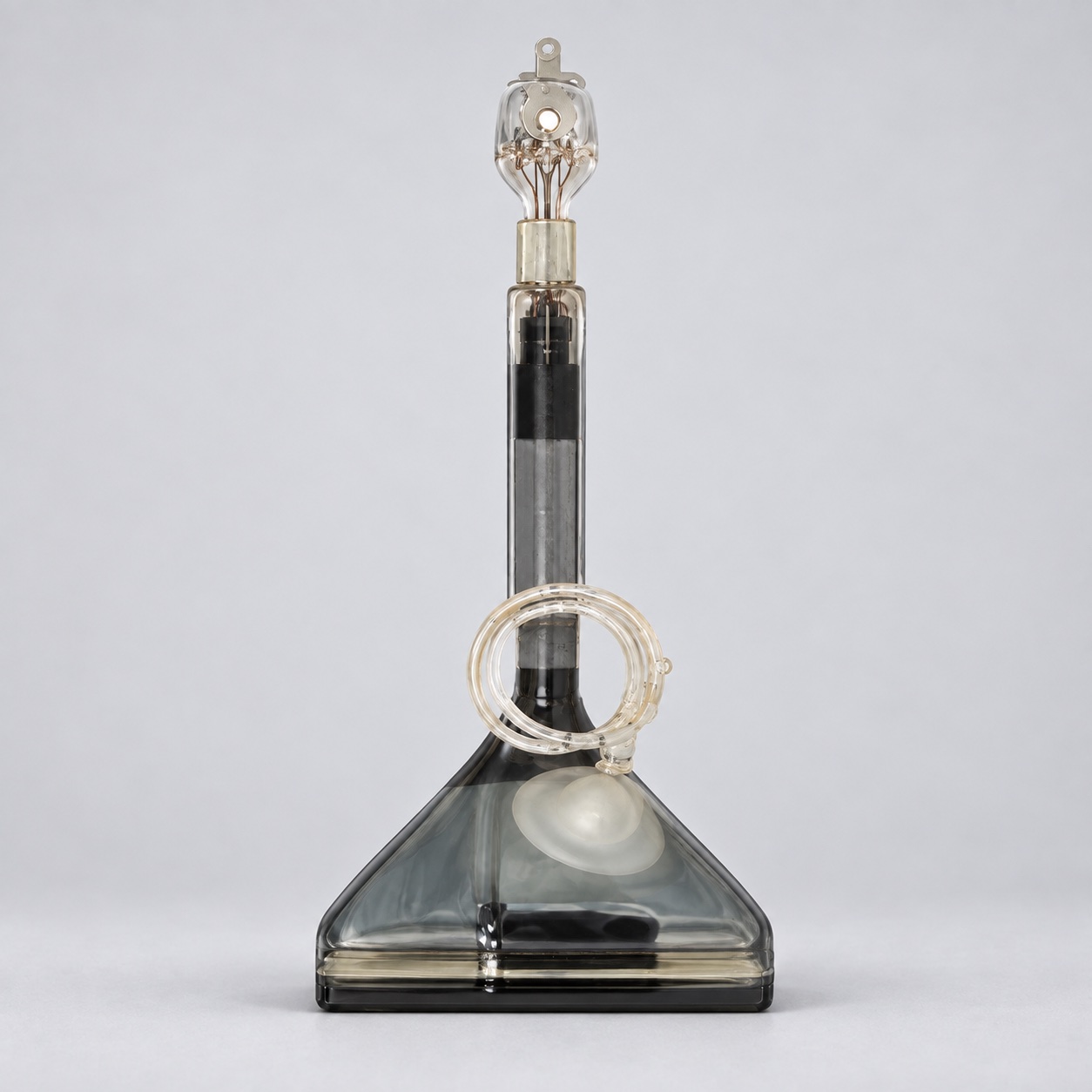

Beam focusing is combined electrostatic and electromagnetic, while the screen emits green light. The working screen area is 88 × 109 mm. The glass envelope has flexible leads and an additional side connection; these construction details must be checked when selecting a replacement.

Main characteristics

Screen data and electrical operating values are listed in Technical Details below. Selection requires comparison of the complete designation, envelope execution, focusing and deflection methods, voltages and lead arrangement.

Selection, installation and testing

A visually similar tube is not an approved substitute without a direct documentary reference. Inspect the screen, neck, leads and sealed joints before installation. Protect the glass envelope from impact and point loading; connect and test high-voltage circuits under the host-equipment procedure.

Ordering 16LM7I-2

Minimum order: 5 pieces. State the exact designation, quantity and required documents. Other executions are listed under Cathode-Ray Tubes; the operating principle is described in the reference article.
