16LK2B

16LK2B purpose

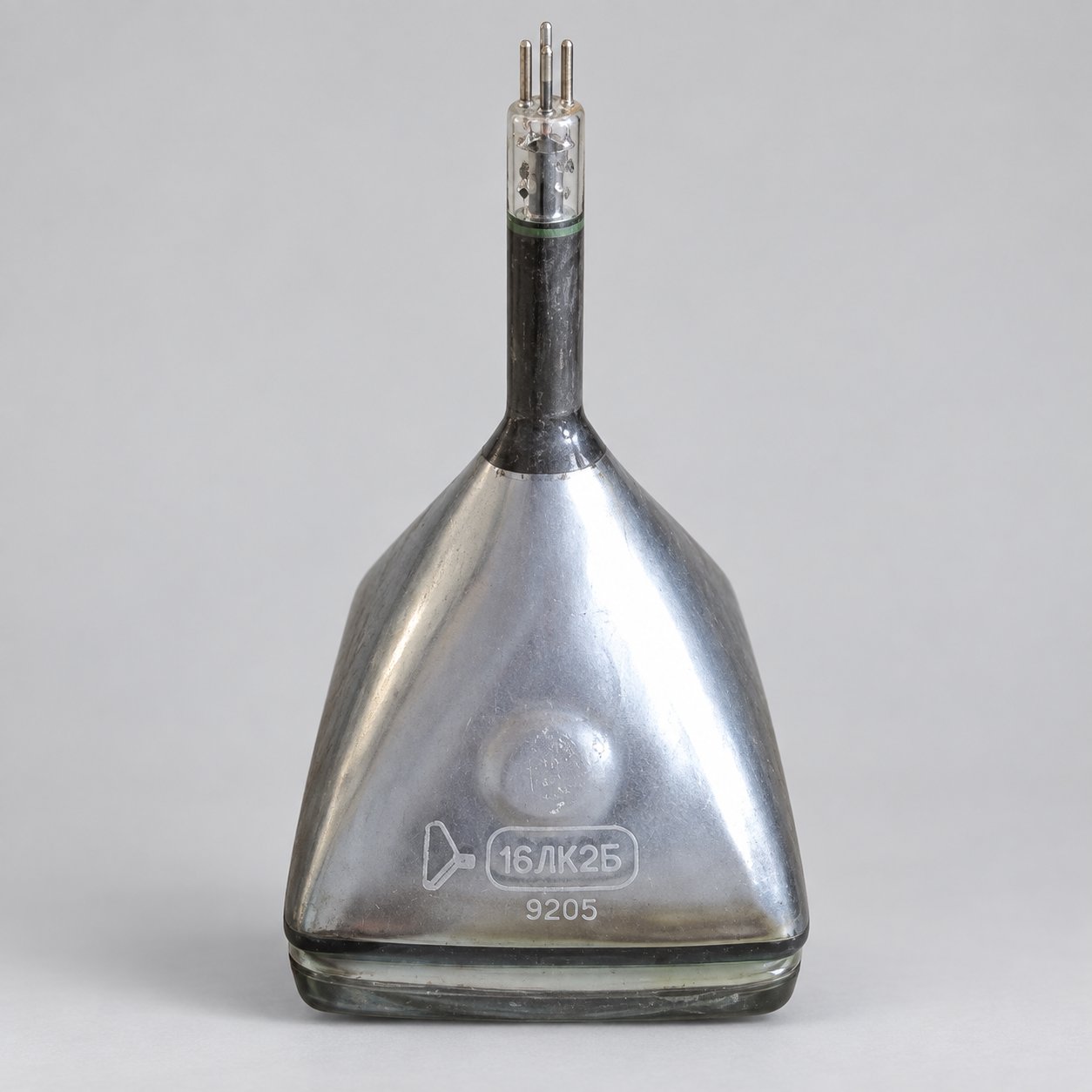

The 16LK2B is a compact cathode-ray kinescope intended for television equipment and special-purpose display devices. It converts the electrical video signal into a monochrome image on a white aluminized screen.

Construction and operation

The tube uses electrostatic beam focusing and magnetic deflection. Its useful image area is approximately 98 × 120 mm. Two operating modes are specified with anode voltages of 6 and 9 kV; the higher-voltage mode provides greater screen brightness and resolving capability.

Main characteristics

Screen data and electrical operating values are listed in Technical Details below. Selection requires comparison of the complete designation, envelope execution, focusing and deflection methods, voltages and lead arrangement.

Selection, installation and testing

A visually similar tube is not an approved substitute without a direct documentary reference. Inspect the screen, neck, leads and sealed joints before installation. Protect the glass envelope from impact and point loading; connect and test high-voltage circuits under the host-equipment procedure.

Ordering 16LK2B

Minimum order: 5 pieces. State the exact designation, quantity and required documents. Other executions are listed under Cathode-Ray Tubes; the operating principle is described in the reference article.
