SK-22-2K

SK-22-2K System Overview

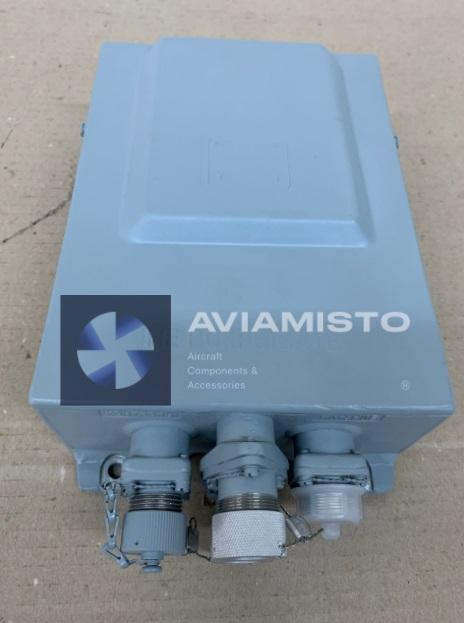

The SK-22-2K is an aircraft ignition unit designed as part of gas turbine engine ignition systems, providing high-voltage energy required for ignition of the fuel-air mixture within the combustion chamber.

SK-22-2K Control Function

The unit converts low-voltage onboard DC power into high-voltage pulses supplied to ignition plugs, ensuring reliable spark generation and stable ignition during engine start and operation.

SK-22-2K Aircraft Application

The unit is used in ignition systems of turboshaft engines such as the TV3-117 and is installed on helicopters including Mi-8 family (Mi-17, Mi-171, Mi-172) and Ka-32.

SK-22-2K System Integration

The unit operates in conjunction with ignition system components and onboard electrical systems, providing energy accumulation and discharge in a controlled sequence. The product is also known under alternative designation SK-22-2K and СК-22-2К.

Product Type: Aircraft ignition unit
Function: Generation of high-voltage pulses for ignition systems
Application / Where Used: Gas turbine engine ignition systems
System / Installation Area: Engine ignition system (e.g., TV3-117)
Compatible Aircraft / Equipment: Mi-8 (Mi-17, Mi-171, Mi-172), Ka-32
Operating Voltage: 27 ±1 V DC
Stored Energy: 2 J
Current Consumption: 4.5 ±1 A
Output Voltage (Amplitude): ≥ 7 kV
Operating Mode: Short-time operation
Operating Temperature Range: −60 to +80 °C
Weight: ≤ 6.5 kg
Material Content (Precious Metals): Silver ~2.21 g
Material Content (Non-Ferrous Metals): Aluminum ~0.12 kg; Copper ~0.22 kg
Technical Documentation: Product passport and operational documentation

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
