PSG-6
Start Control Panel
Description

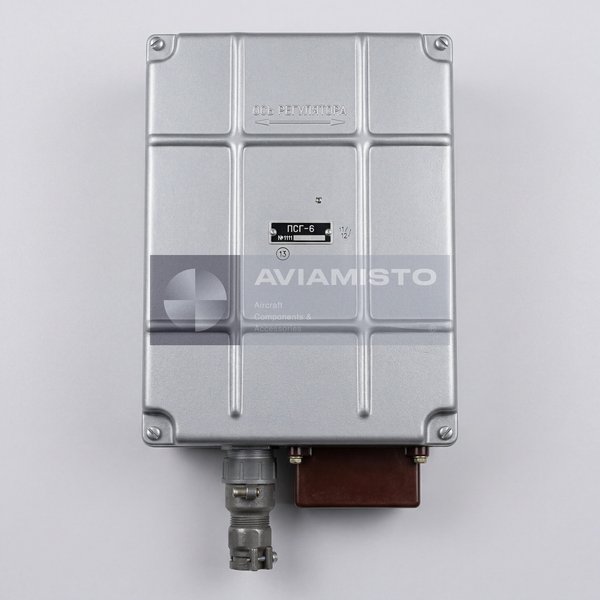

PSG-6 System Overview
The PSG-6 is an aircraft starter-generator start control panel designed for control of electrical power supply during engine or auxiliary power unit start within onboard electrical systems. The unit operates as part of the aircraft engine starting system architecture.
Full descriptionCollapse description
PSG-6 Control Function
The panel performs switching and control of power supplied to the starter-generator, enabling engine acceleration during start. It manages electrical parameters based on control signals and ensures correct start sequence execution.
PSG-6 Aircraft Application
The unit is used on transport and passenger aircraft, including Il-76, Il-62, Tu-154, Tu-134, Yak-42, and An-74, where it functions as a standard element of engine and APU start systems.
PSG-6 System Integration
The panel operates in conjunction with automatic start control units and onboard electrical systems, providing connection of the starter-generator to power sources, regulation during start, and automatic disconnection upon reaching operating conditions or in case of abnormal operation. The product is also known under alternative designations PSG-6 and ПСГ-6.
Technical details
- Product Type
- Starter-generator start control panel
- Function
- Switching, control, and protection of starter-generator during engine start
- Application / Where Used
- Aircraft engine and APU start systems
- System / Installation Area
- Electrical engine start system
- Compatible Aircraft / Equipment
- Il-76, Il-62, Tu-154, Tu-134, Yak-42, An-74
All specificationsCollapse specifications
- Operating Voltage
- 27 V DC
- Supply Voltage Range
- 24 to 29.4 V
- Operating Mode
- Intermittent operation
- Operating Temperature Range
- −60 to +60 °C
- Dimensions
- 348 × 230 × 188 mm
- Technical Documentation
- Product passport and operational documentation
