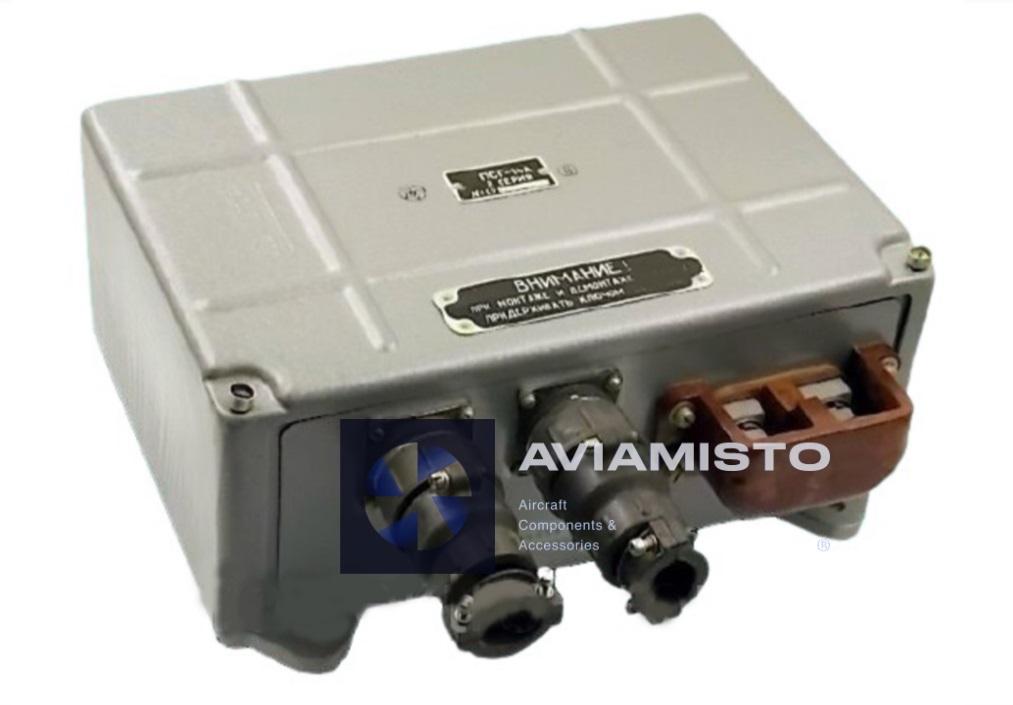

PSG-14A - 2ser.
Starter Generator Panel
Description
PSG-14A Series 2 System Overview
The PSG-14A Series 2 is an aircraft starter-generator start control panel designed for automated control of engine start processes within onboard electrical systems of helicopters. The unit functions as part of the engine start system architecture.
Full descriptionCollapse description
PSG-14A Series 2 Control Function
The panel controls the start sequence of the GTD-350 engine by managing operation of the starter-generator, ignition units, and fuel system components in accordance with a predefined timing program, ensuring proper execution of start procedures and system protection.
PSG-14A Series 2 Aircraft Application
The unit is used on Mi-2 helicopters in civil and training aviation as a standard component of engine start systems, supporting operational and maintenance requirements.
PSG-14A Series 2 System Integration
The panel operates in conjunction with the STG-3 starter-generator and onboard systems, enabling switching between winding configurations, control of contactors, and coordination of ignition and fuel supply processes during various start modes. The product is also known under alternative designations PSG-14A Series 2 and ПСГ-14А серия 2.
Technical details
- Product Type
- Starter-generator start control panel
- Function
- Automated control of GTD-350 engine start sequence
- Application / Where Used
- Helicopter engine start systems
- System / Installation Area
- Electrical engine start system for Mi-2
- Compatible Aircraft / Equipment
- Mi-2 helicopters; GTD-350 engine; STG-3 starter-generator
All specificationsCollapse specifications
- Operating Voltage
- 27 V DC
- Operating Modes
- Ground Start; In-Flight Start; Cold Rotation; False Start; Start Termination
- Control Functions
- Contactor control; ignition activation; fuel valve control; winding configuration switching
- Design Features (Series 2)
- Improved switching elements reliability; enhanced starter cut-off logic
- Operating Temperature Range
- −60 to +50 °C
- Operating Conditions
- Designed for vibration and environmental loads typical for aviation operation
- Technical Documentation
- Product passport and operational documentation
