ID-5B

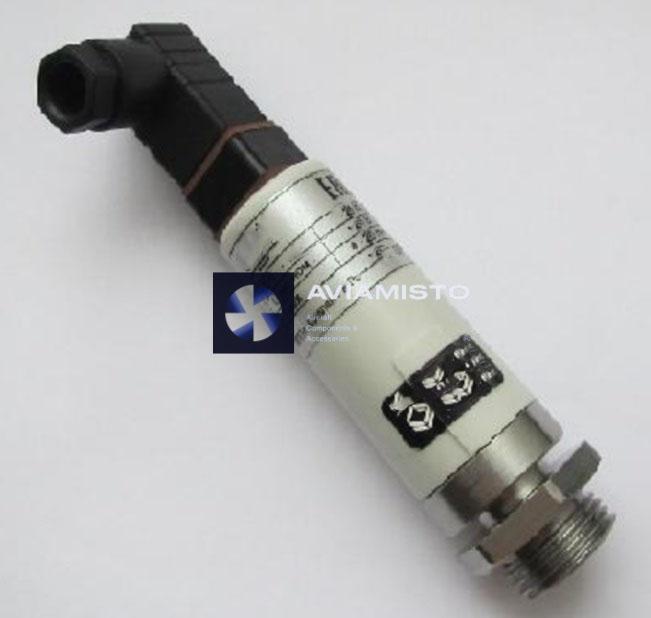

ID-5B Inductive Pressure Sensor

ID-5B is an aviation inductive pressure sensor identified by its complete execution marking. Aviation equipment catalogues identify ID-5B by the original Cyrillic designation ИД-5Б and classify it as an inductive sensor. Existing card data associates the sensor with continuous pressure conversion, but the exact pressure range, engineering units and receiving instrument are not published for the 5B execution. The designation must be treated as the primary ordering reference because products from the same family can differ in range, electrical interface, calibration, connector, mounting arrangement or system role. External resemblance is not evidence of interchangeability. Selection should be made from the product passport, the aircraft illustrated parts catalogue and the approved maintenance documentation for the exact installation.

Operating function and signal path

The pressure-sensitive mechanism changes an inductive electrical parameter that is interpreted by a compatible remote indicator or measurement circuit. The unit is a sensing element within a larger aircraft circuit; it is not a complete indicator, controller or protective system by itself. Its output is interpreted by compatible receiving equipment, so supply characteristics, polarity or phase, connector pinout, load and calibration must match the documented configuration. The B suffix is part of the execution marking and may define calibration, connector or construction; it must not be omitted when matching the installed unit. A general explanation of the underlying measurement class is available in this technical reference. That general reference explains the principle only and does not replace product-specific documentation.

Aircraft and equipment application

ID-5B is catalogued as aviation equipment, while the exact aircraft system and approved indicator require the installation drawing or product passport. Where an aircraft or engine family is named, the statement identifies a documented installation context rather than universal applicability to every modification. The exact equipment set, production series and installed connector must be checked before ordering. Related products in the aviation sensors category are provided for catalogue navigation. The ID-15 card is another same-category reference, but the link does not state that the two units are interchangeable or perform the same function.

Installation and maintenance checks

Before installation, technicians should compare the nameplate, suffix, connector, mounting faces and available acceptance record with the approved requirement. The housing, pressure ports or mechanical input, electrical contacts and sealing features should be inspected without altering calibration. Wiring continuity, insulation and output checks must follow the passport limits for this execution. Do not apply a supply voltage, pressure, acceleration, rotation or test signal taken from a neighbouring model. Storage condition and preservation date should also be reviewed when the unit has remained in stock for an extended period.

After installation, functional testing must be performed as part of the complete aircraft circuit, using approved test equipment and the limits defined by the maintenance manual. A correct bench response alone does not prove that the installation wiring, pneumatic lines, mechanical linkage or receiving unit is serviceable. Any discrepancy should be traced without adjusting sealed elements unless the repair documentation expressly authorises that procedure. The maintenance record should identify the fitted designation and serial number so that later troubleshooting does not confuse adjacent family executions.

Ordering ID-5B

An enquiry should state ID-5B, the required condition, quantity, aircraft or equipment context and the documentation needed with delivery. If the installed marking is incomplete, provide a clear photograph of the label, connector and mounting arrangement together with the relevant catalogue reference. Aviamisto can compare these identifiers before supply, but final installation approval remains with the operator or maintenance organisation. Technical Details below separates confirmed data from values that still require passport verification. Same-category cross-sells are navigation aids only; they must never be interpreted as approved replacements.

For a traceable quotation, also state whether a new-production unit, preserved stock item or another documented condition is acceptable. Requested acceptance documents, test records and packing requirements should be agreed before order placement.

Product Type: Inductive pressure sensor

Original Designation: ИД-5Б

Execution Suffix: Б / B

Converted Variable: Pressure to an inductive electrical parameter according to existing card data

Pressure Range / Units: Confirm from the ID-5B passport

Associated Indicator / Aircraft: Confirm from installation documentation

Primary Designation: ID-5B

Original Cyrillic Designation: ИД-5Б

Alternative Designations: ID-5B; ID 5B; ID5B; ИД-5Б; ИД 5Б; ИД5Б

Manufacturer: Not confirmed for the offered unit

Aircraft / Equipment Application: According to the exact aircraft, engine or equipment documentation stated above

Installation Position: Confirm from the illustrated parts catalogue and maintenance manual

Connector / Pinout: Confirm from the passport for the exact execution

Interchangeability: Not established by family name or external appearance

Documentation: Product passport and applicable installation / maintenance documentation

Ordering Check: Full marking, suffix, connector, required condition and documents

Acceptance Control: Compare marking, interfaces and test record with the approved requirement before installation

Data Rule: Unlisted values must be confirmed from the exact passport and not copied from another execution

Related Products: Same-category links are navigation only and do not state interchangeability
