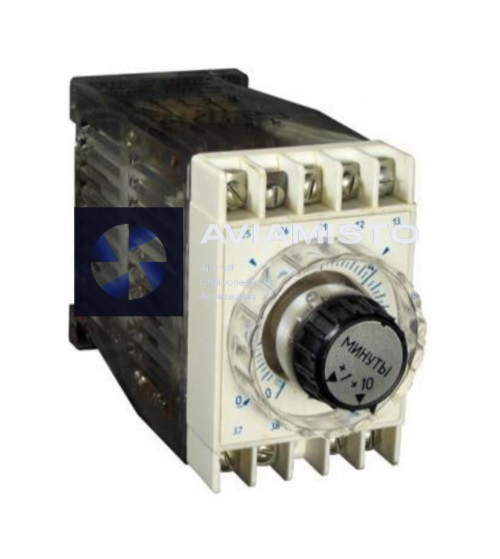

VS-33-1 0.2-60sec 220v
TIME RELAY
Description
VS-33-1 series time relays 0.2-60sec 220v are designed to transfer commands from one electrical circuit to another with a certain, pre-set deceleration in automatic control circuits.
Technical details
1. Rated supply voltage AC 50Hz, 24V, 110V, 220V, 230V, 240V.
2. Permissible supply voltage fluctuations:
— for execution UHL from 0.85 to 1.1 nominal.
— for version O4 from 0.95 to 1.05 nominal.
3. Power consumption, no more than 8 VA (W).
4. Number of contacts with time delay:
– opening – 1.
– closing – 1.
5. Number of contacts without time delay:
– switching 1.
6. Rated current 4 A.
7. Return time, no more than 0.2 sec.
8. Permissible switching frequency, cycles per hour 3600.
9. Degree of relay protection:
— by IP40 sheath.
– on output terminals IP10.
10. Relay weight, no more than 0.38 kg.
11. Overall dimensions 45x70x125 mm.
