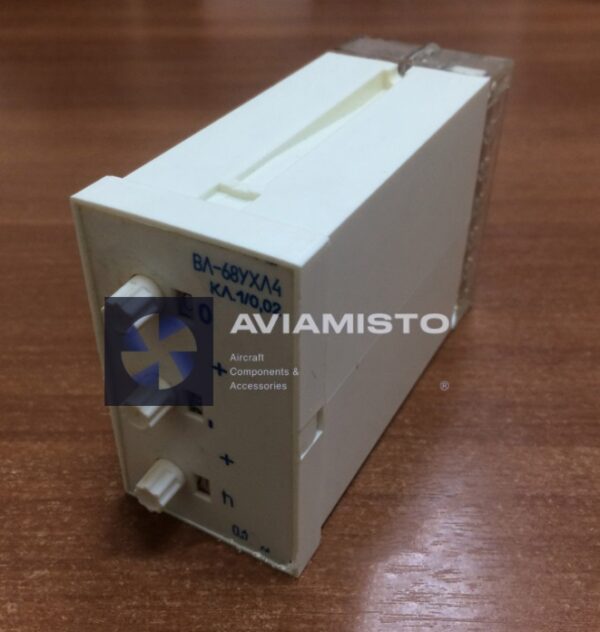

VL-68 1-999sec 24v
TIME RELAY
Description
Time relays VL-68 1-999sec 24v are designed for switching electrical circuits with certain pre-set time delays and are used in automation circuits as components. The environment is not explosive, does not contain conductive dust, corrosive gases and vapors in concentrations that destroy insulation and metals.
Technical details
1. Adjustment of the time delay – step.
2. Accuracy class 1/0.02.
3. Ready time 0.3 sec.
4. Return time 0.2 sec.
5. Quantity and type of contacts 1z + 1r.
6. Supply voltage (DC) 24, 27, 110, 220 V.
7. Supply voltage (AC) 110, 220, 230, 240 V.
8. Permissible supply voltage deviations +10, -15%.
9. Power consumption (AC/DC) 4.5VA/W.
10. Long-term permissible current of the output circuit 4 A.
11. Overall dimensions 45x75x119 mm.
12. Weight 0.28 kg.
