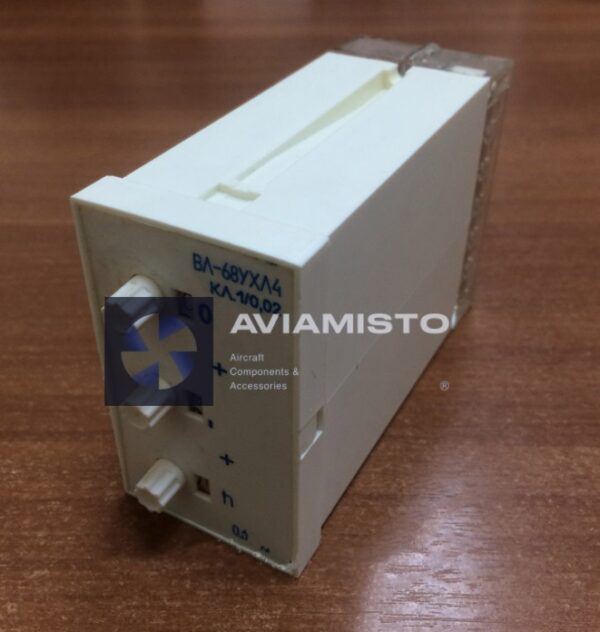

VL-68 0.1-99.9sec 110v
TIME RELAY
Description
Time relays VL-68 0.1-99.9sec 110v are designed for switching electrical circuits with certain pre-set time delays and are used in automation circuits as components.
Technical details
1. Adjustment of the time delay – step.
2. Accuracy class 1/0.02.
3. Ready time 0.3 sec.
4. Return time 0.2 sec.
5. Quantity and type of contacts 1z + 1r.
6. Supply voltage (DC) 24, 27, 110, 220 V.
7. Supply voltage (AC) 110, 220, 230, 240 V.
8. Permissible supply voltage deviations +10, -15%.
9. Power consumption (AC/DC) 4.5VA/W.
10. Long-term permissible current of the output circuit 4 A.
11. Overall dimensions 45x75x119 mm.
12. Weight 0.28 kg.
