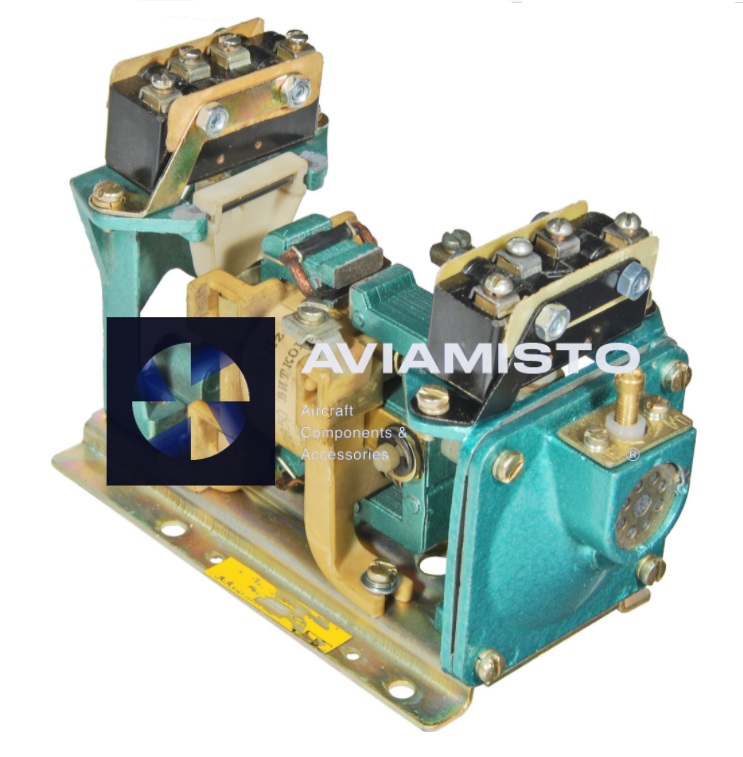

RVP-72 3121-00 110V
TIME RELAY
Description
Time relay RVP-72 3121-00 110V pneumatic is designed to transfer commands from one electrical circuit to another with certain pre-set time delays.
Technical details
1. The range of adjustable time delays is 0.4-180 s;
2. Rated current of executive contacts 16 A;
3. Power consumption, no more than 30 VA;
4. Return time, no more than 0.4 s;
5. Relay preparation time, no more than 2 s;
6. Spread of relay time delay, no more than ±10%;
7. Additional error due to aging, no more than ±30%;
8. Additional error due to temperature change from the setpoint, no more than ±40%;
9. Mechanical wear resistance, not less than 10 million cycles;
10. Switching wear resistance, not less than 1.6 million cycles;
11. Weight, no more than 1.2 kg.
