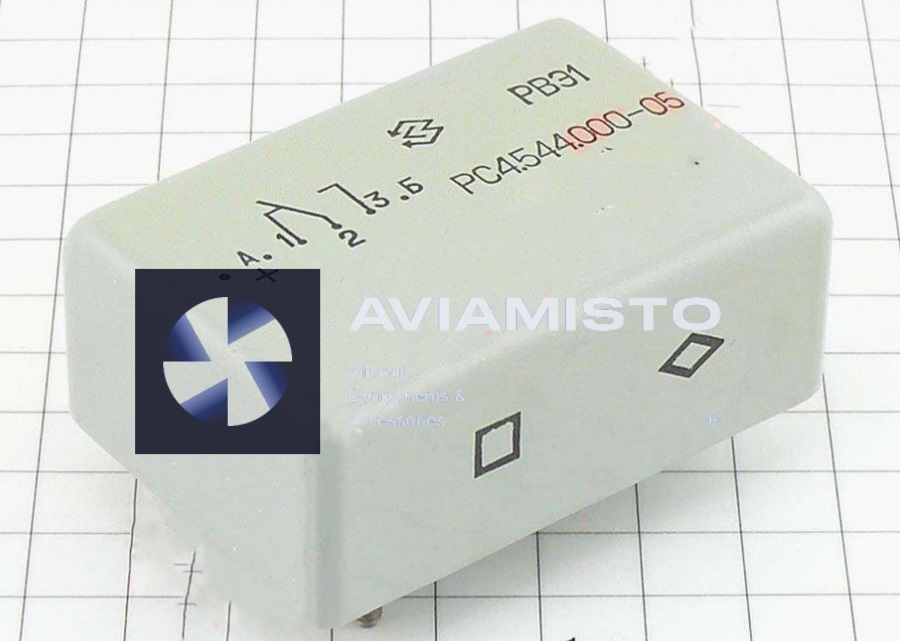

RVE1 RS4.544.000-05
TIME RELAY
Description
Relay electronic, static, with one changeover contact RVE1 RS4.544.000-05 is designed for switching electrical circuits of direct and alternating current with fixed time delays from 0.05 to 180 s.
Technical details
1. Supply current – constant.
2. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (power circuit is de-energized) – 200 MΩ.
– in conditions of high humidity – 10 MΩ.
– at the maximum temperature (after holding the relay supply circuit under operating voltage) – 20 MΩ.
3. Test alternating voltage between current-carrying elements and the case, between make contacts:
under normal climatic conditions:
– between current-carrying elements and the case – 350V.
– between closing contacts – 180V.
– in conditions of high humidity – 180V.
– at reduced atmospheric pressure – 180V.
4. The resistance of the electrical contact during the delivery period is not more than 1.6 Ohm.
5. The weight of the relay is not more than 160 g.
