Description

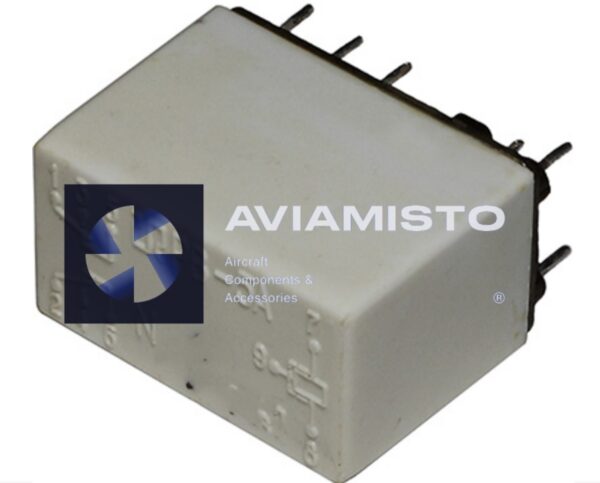

The RV-5A relay is a neutral, two-position DC relay.
All relay elements are placed on a base made of press material. Magnetic relay system RV-5A valve type. The relay has one feature, it lies in the fact that its coil is placed in a metal screen and there is a special output number 9 for connecting the screen to the ground. The contact system of the RV-5A relay consists of two changeover contacts. The contact material is gold.
Technical details
1. Supply voltage: DC 5V.
2. Current: 0.00033 – 0.01 A.
3. Voltage: 30 – 1000 V.
4. Dimensions: 30 x 18 x 32mm (H x W x D).
5. Weight: 25g.
