Description

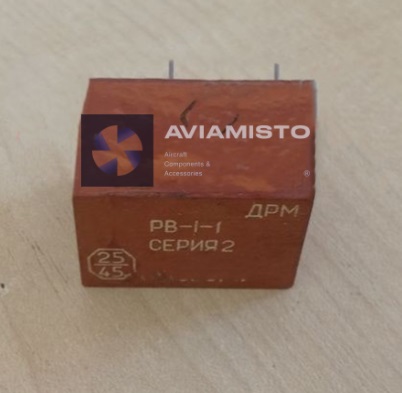

RV-1-0.4 ser.2 time relay is used to obtain an independent time delay. The time relay is used in circuits where it is necessary to automatically perform some action after a certain period of time. The relay mechanism is housed in a plastic case, on the front of the relay there is a switch for the setting sub-range and a time delay setting knob.
Technical details
1. Rated voltage: 24 – 220V DC; 100 – 380 V AC with additional resistance.
2. Time delay settings: from 0.1 to 30 sec.
3. Rated current: 0.01-2.5A.
4. Voltage: 24-110V.
5. Dimensions: 181 x 81 x 152mm (H x W x D).
6. Operating temperature range from -40 to +55°С.
7. Mechanical wear resistance – 6.3 million cycles.
8. Weight no more than 1.0 kg.
