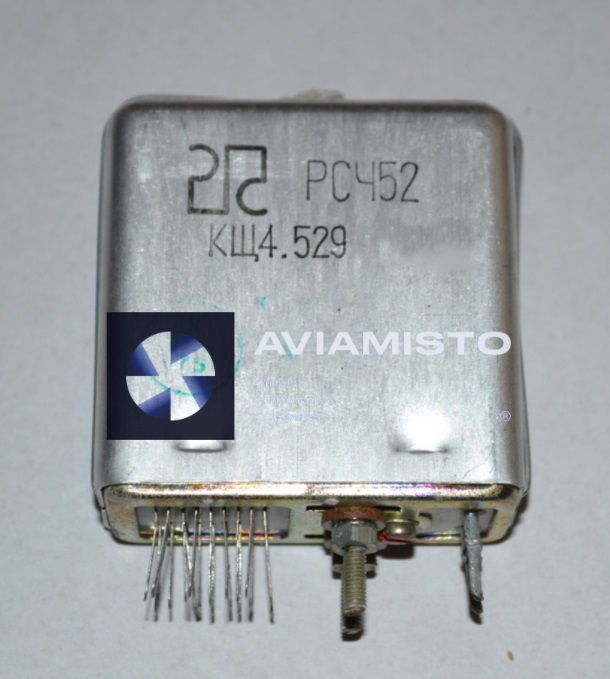

RSC-52 KSHCH4.529.035-03
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay RSCH-52 KShch4.529.035-03 sheathed, single-stable, with two contact groups, with a combination of opening, closing and switching contacts, powered by direct current, designed for switching electrical circuits of direct and alternating current with a frequency of up to 400 Hz.
Technical details
1. Dielectric strength between open contacts: 900 V.
2. Dielectric strength between contacts and case: 900 V.
3. Vibration loads:
– frequency range 80 Hz:
— acceleration 100 (10) m/s2 (g):
4. Linear acceleration: 200 (20) m/s2 (g).
5. Mechanical impact, single action with acceleration: 1500 (9) m/s2 (impacts).
6. Mechanical impact, multiple action with acceleration: 120 (10000) m/s2 (impacts).
7. Relative air humidity at +20°C: up to 98%.
8. Atmospheric pressure: from 2×103 to 104×103 Pa.
9. Operating ambient temperature: -60 to +70 °C.
10. Relay weight: 130.0 g.
11. Minimum service life: 12 years.
