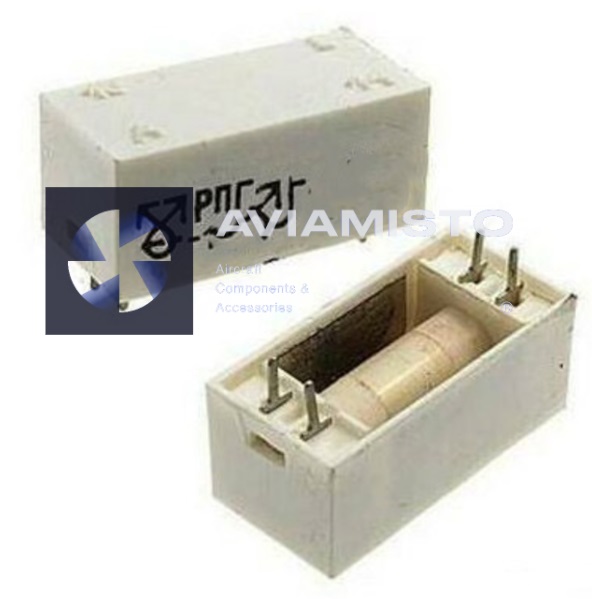

RPG-5K 2120-U3 12V
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Intermediate reed relays RPG-5K 2120-U3 12V are designed to operate in automation and control circuits made on printed circuit boards and are designed for rated voltages of 5, 12, 15 and 24V DC of rectified three-phase current with a ripple frequency of at least 300 Hz without a filter , as well as with a filter that provides a ripple of no more than 6%.
Technical details
1. Rated supply voltage of the coil 5; 12; 15; 24 V;
2. Deviation of the supply voltage of the control coil 0.8-1.1 Unom;
3. Rated current of contacts 2 A;
4. Rated operating current of contacts 1*10-6-2 A;
5. Rated voltage of contacts 300 V;
6. Rated operating voltage of contacts 0.05-300 V;
7. Closing (opening) time of contacts when triggered, no more than 2 ms;
8. Time of opening (closing) of contacts at return, no more than 1 ms;
9. Electrical strength of insulation in normal climatic conditions 1500 V;
10. Mechanical wear resistance of contacts, not less than 100 min. cycles.
