Description

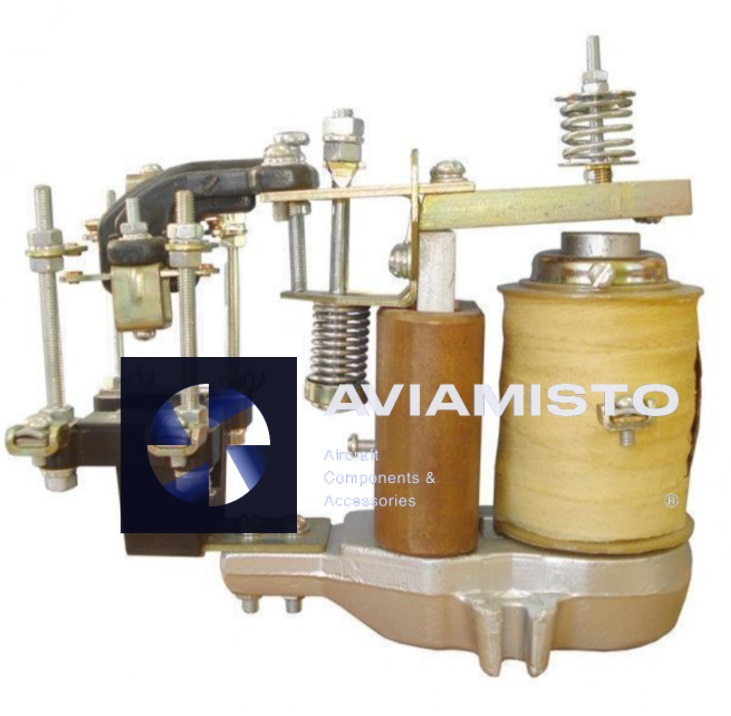

Time relays REV-813 110V are used as electromagnetic time relays in DC circuits. Retracting relay coils are manufactured for rated voltages: 24, 48, 110 and 220V.
Technical details
1. Time delay ranges obtained by disconnecting/shorting the coil 0.8…2.5/0.9…2.8 sec.
2. Number of chains – 1.
3. Supply voltage (DC) 24, 48, 110, 220 V.
4. Switching voltage range 24…220 V.
5. Continuous contact current 16 A.
6. Number of contacts with time delay 1″з»+1″р».
7. Operating temperature range -45…+40 °С.
8. Overall dimensions 150x200x135 mm.
9. Weight, no more than 3.5 kg.
