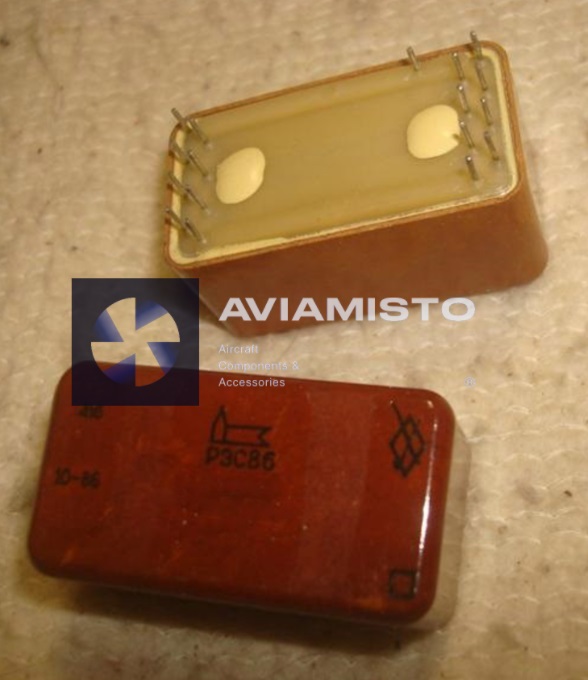

RES86 RS4.569.795
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relays RES86 RS4.569.795 are dust-splash-proof, two-position, single-stable, reed switches, designed for switching direct and alternating current with a frequency of up to 100 kHz.
Technical details
1. Linear acceleration: 400 (40) m/s2 (g).
2. Mechanical impact, single action with acceleration: 750 (9) m/s2 (impacts).
3. Mechanical impact, multiple action with acceleration: 400 (10000) m/s2 (impacts).
4. Relative humidity at +35°C: up to 98%.
5. Atmospheric pressure: from 2.67×10-4 to 2.02×105 Pa.
6. Operating ambient temperature: -60 to +70 °C.
7. Relay Weight: 55.0g
8. Minimum service life: 12 years.
