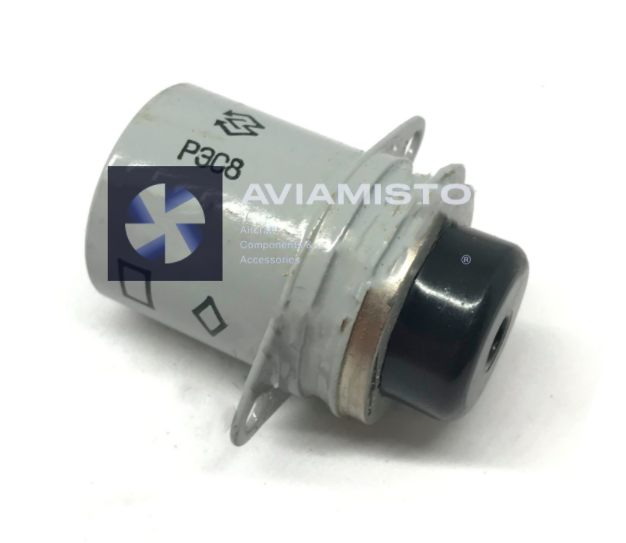

RES8 RS4.590.060
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
The relay RES8 RS4.590.060 is sealed, single-stable, with six changeover contacts, powered by direct current, designed for switching electric circuits of direct and alternating current.
Technical details
1. Supply current – constant;
2. Winding resistance 2100 ohms;
3. Operate current 28mA;
4. Release current 5 mA;
5. Operating voltage 110V;
6. Insulation resistance between current-carrying elements, between current-carrying elements and the case, not less than:
– in normal climatic conditions (the winding is de-energized) 200 MΩ;
– in conditions of high humidity 20 MΩ;
— at the maximum temperature (after holding the winding under operating voltage or current) 50 MΩ.
7. Relative air humidity at +35°C: up to 98%.
8. Operating ambient temperature: -60 to +100 °C.
9. Relay weight: 110g.
10. Minimum service life: 12 years.
