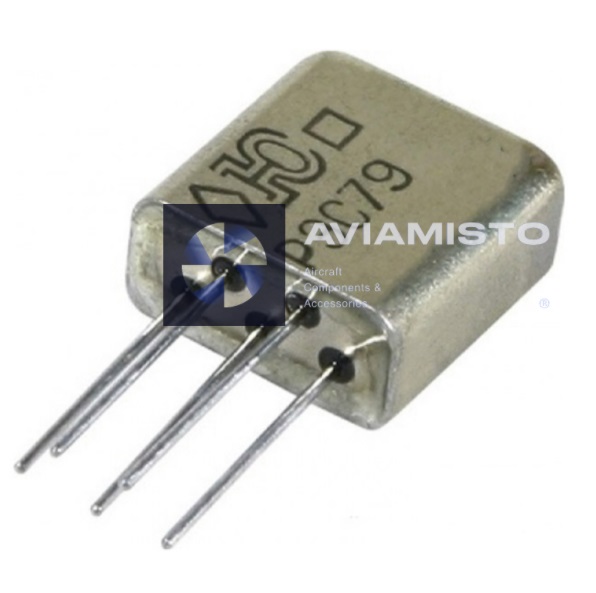

RES79 DLT4.555.011-03
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
The relay RES79 DLT4.555.011-03 is hermetic, two-position, single-stable, with one changeover contact, powered by direct current, designed for switching DC and AC circuits.
Technical details
1. Electrical strength of insulation between current-carrying elements: 150 V.
2. Electrical strength of insulation between current-carrying elements and housing: 200 V.
3. Vibration loads:
— frequency range 4000 Hz.
— acceleration 200 (20) m/s2 (g).
4. Linear acceleration: 1500 (150) m/s2 (g).
5. Mechanical impact, single action with acceleration: 5000 (2) m/s2 (impacts).
6. Mechanical impact, multiple action with acceleration: 750 (4000) m/s2 (impacts).
7. Relative air humidity at +35°C: up to 98%.
8. Atmospheric pressure: from 1.33×10-6 to 3.04×105 Pa.
9. Operating ambient temperature: -60 to +100 °C.
10. Relay weight: 2.0g.
11. Minimum service life: 12 years.
