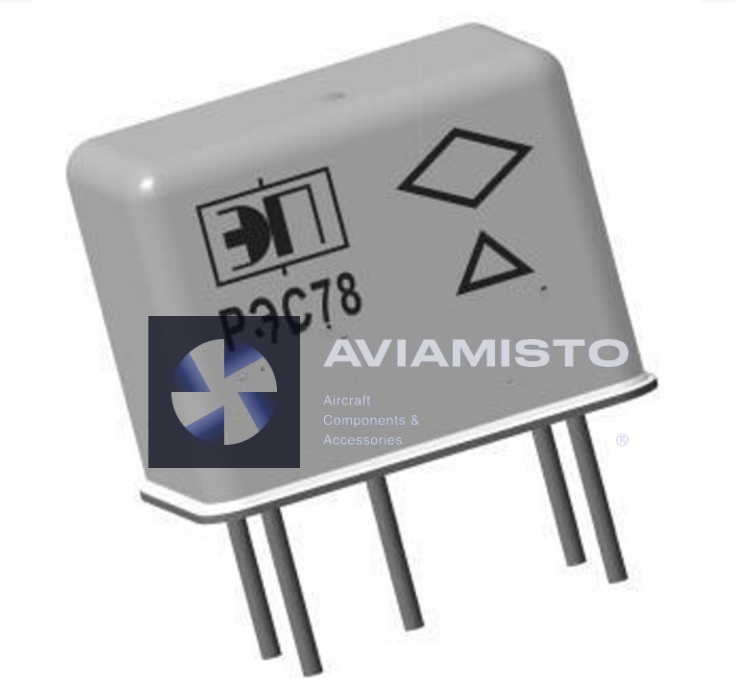

RES78 RS4.555.008-03
RELAYS ELECTROMAGNETIC LOW-CURRENT
Description
Relay RES78 RS4.555.008-03 is hermetically sealed, two-position, single-stable, with one switching or closing contact, powered by direct current. Designed for switching electrical circuits of direct and alternating current with a frequency of up to 1100 Hz.
Technical details
1. Linear acceleration: 1250 (125) m/s2 (g).
2. Mechanical impact, single action with acceleration: 3000 (9) m/s2 (impacts).
3. Mechanical impact, multiple action with acceleration: 1000 (4000) m/s2 (impacts).
4. Relative humidity at +35°C: up to 98%.
5. Atmospheric pressure: from 1.33×10-6 to 3.04×105 Pa.
6. Operating ambient temperature: -60 to +125 °C.
7. Relay Weight: 8.0g
8. Minimum service life: 12 years.
